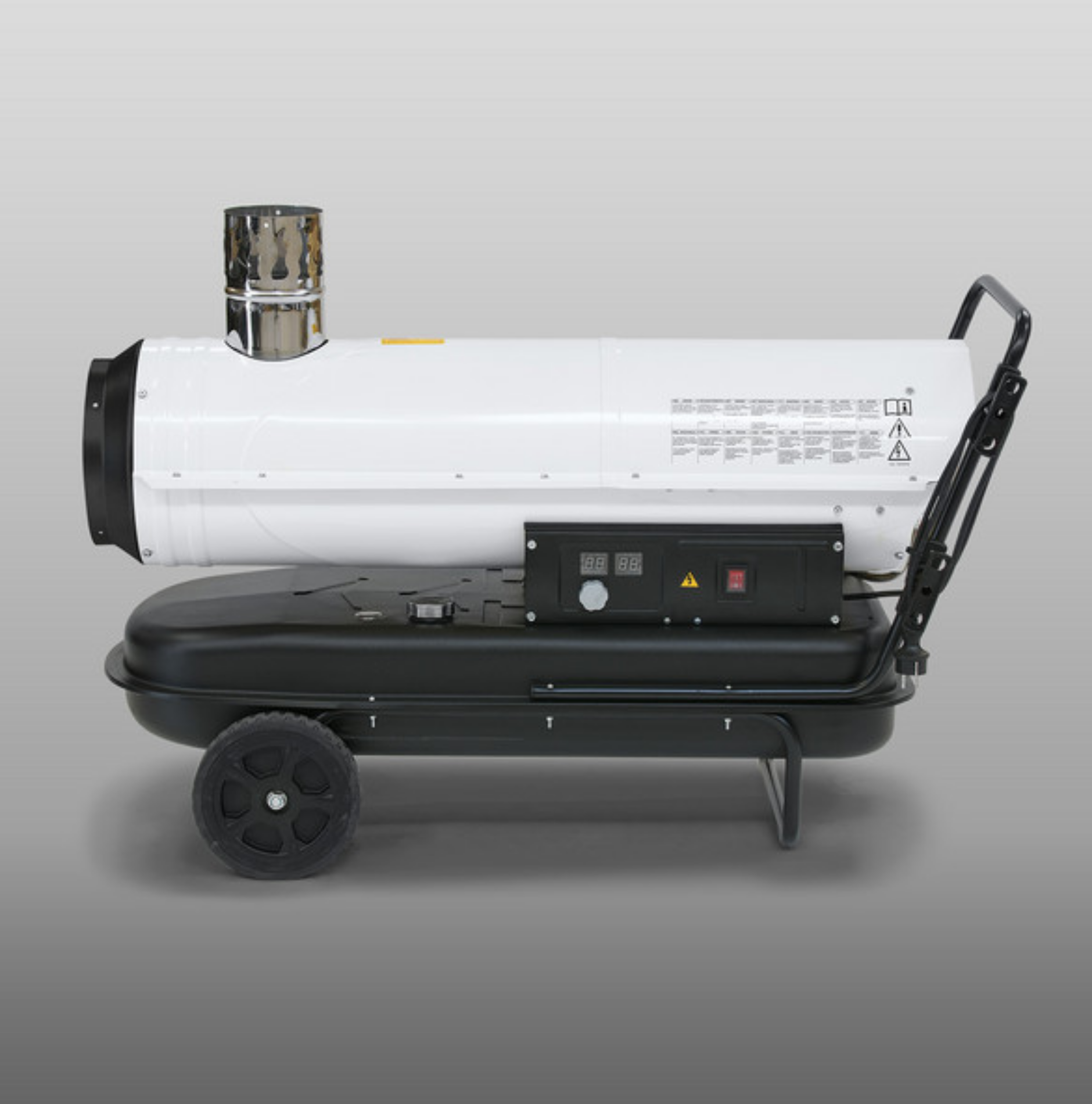

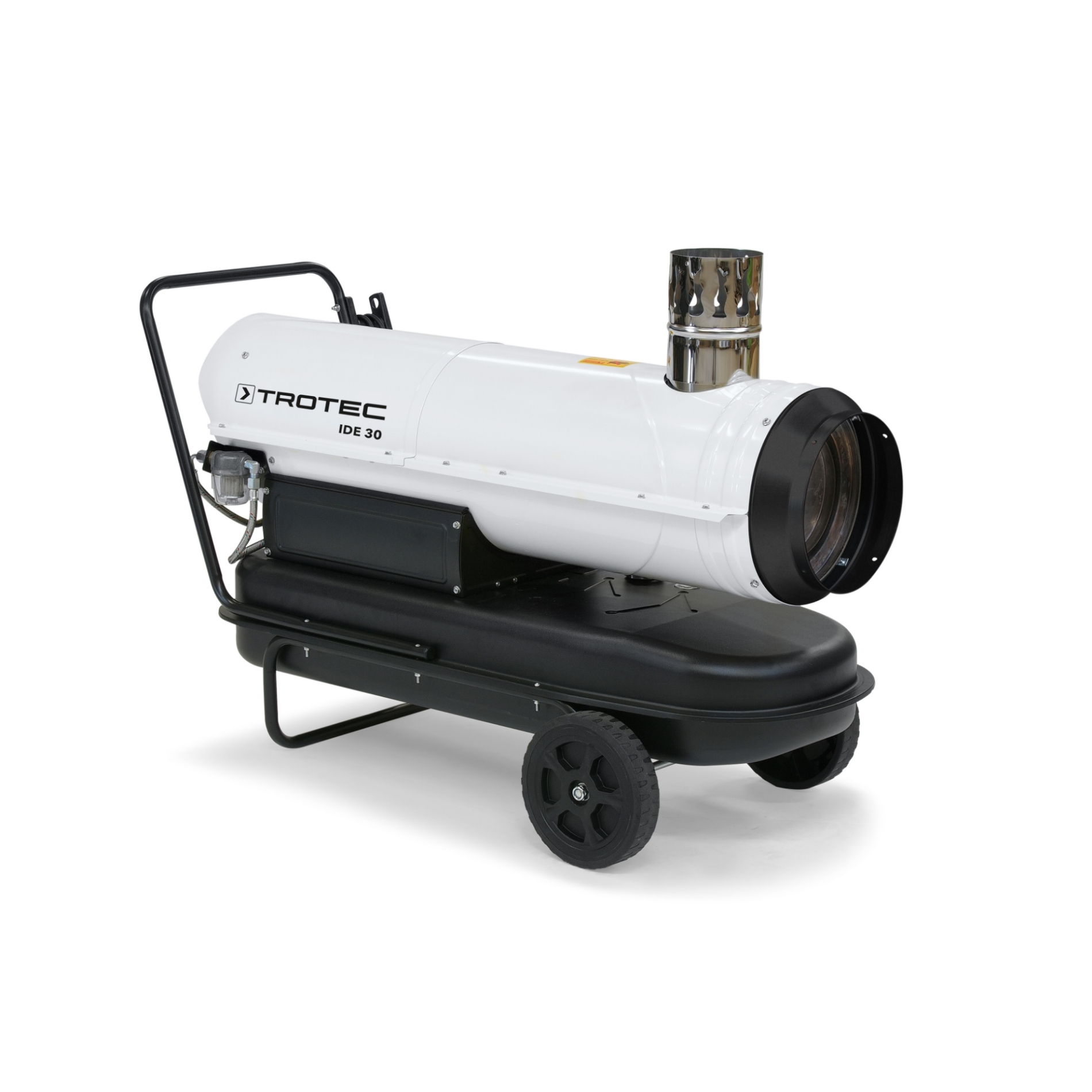

Trotec IDE30 30kW Indirect Oil Fired Heater

SKU: CC-03-002-0222

The IDE-series of pump driven, Indirect-Fired Oil Heaters is the perfect solution for applications requiring the rapid supply of warm, clean, dry air.  The direct oil heater fan IDE 30 D with integrated tank – the particularly economical solution for oil heating.

Back

Was: £683.33 £599.17

Out of stock
Accessory Options
Trotec IDE30 30kW Indirect Oil Fired Heater main Trotec IDE30 30kW Indirect Oil Fired Heater £599.17

Detailed Description

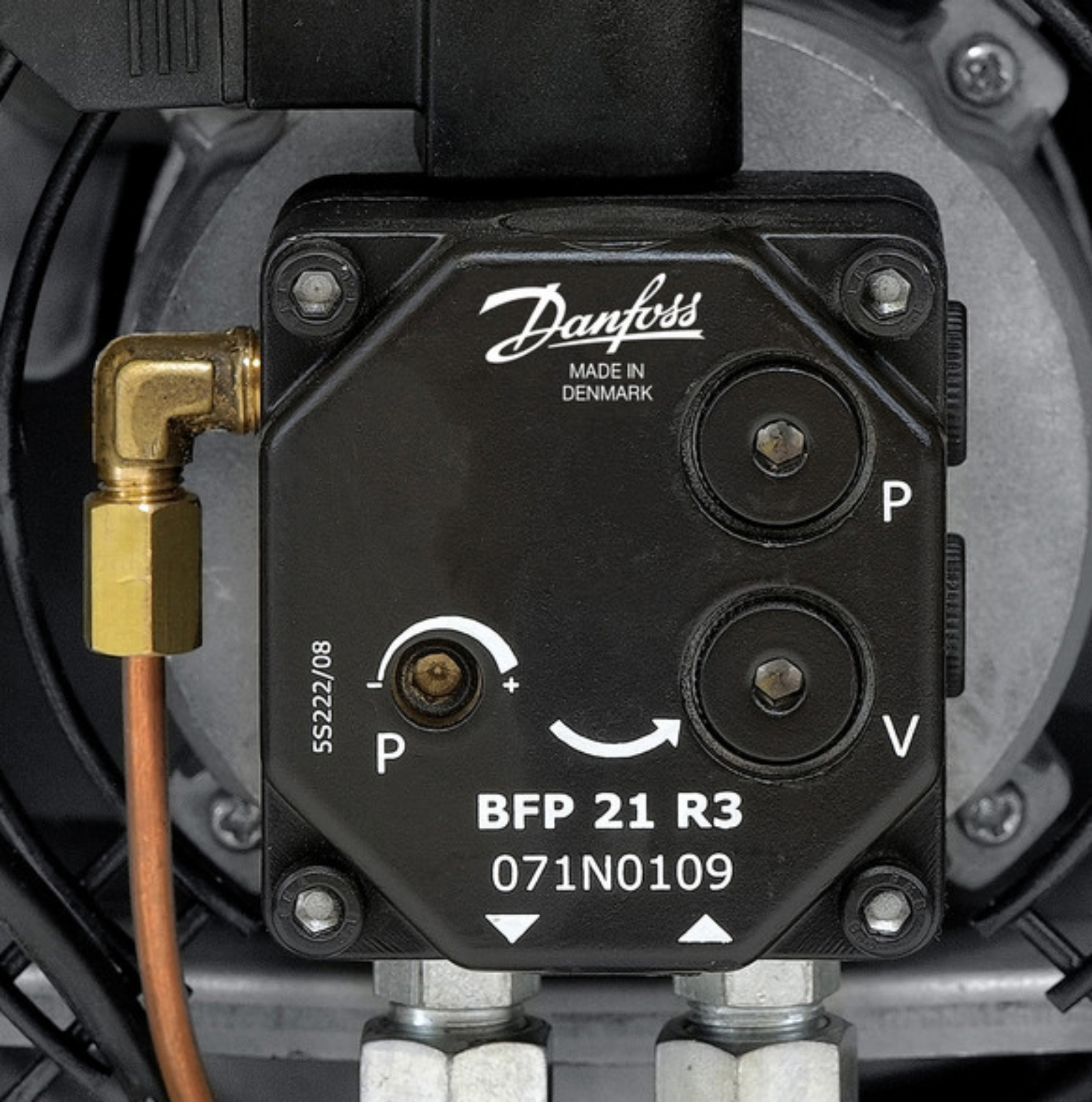

Combustion is assisted by a high-quality Danfoss® injection pump and protected by an electronic flame safety protection and integrated overheat sensor.

The easily accessible, external fuel filter and tank level indicator add to the overall ease of operation.

With integrated thermostatic control, the desired temperature can easily be controlled. For temperature control at a distance of up to 25 metres, an optional external thermostat is available.

The heater is both durable and weatherproof for all necessary outdoor work.

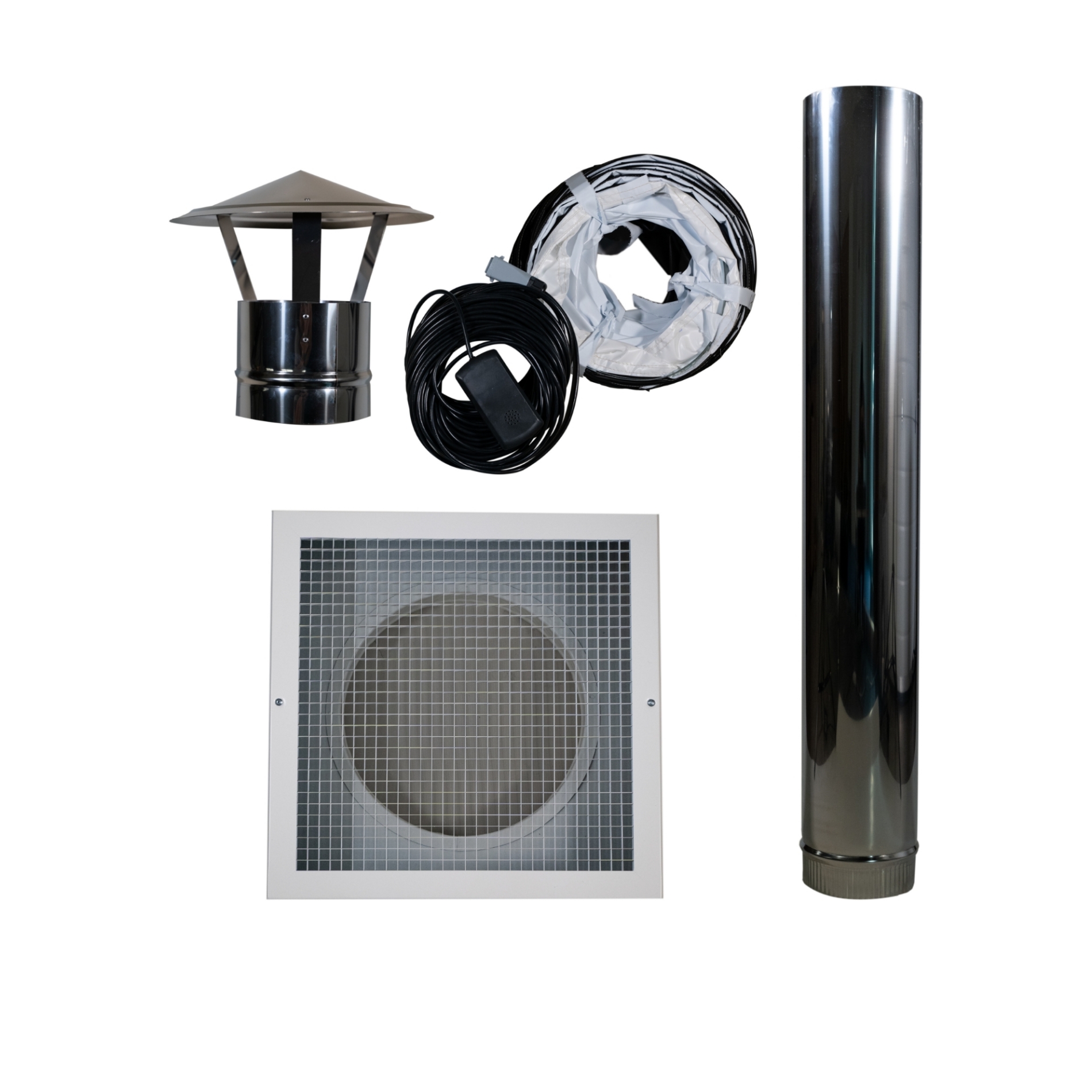

The tank capacity is designed so that it can easily be used for long periods of operation, negating the need for continuous refuelling. With an optional adapter kit, the unit can also be easily connected to an external oil tank for extended heating periods.

Features & Benefits

  • Very economical solution for standard oil heaters
  • Integrated fuel tank with fuel level display
  • Electronic flame safety protection
  • Overheating protection
  • Stainless steel fire combustion chamber

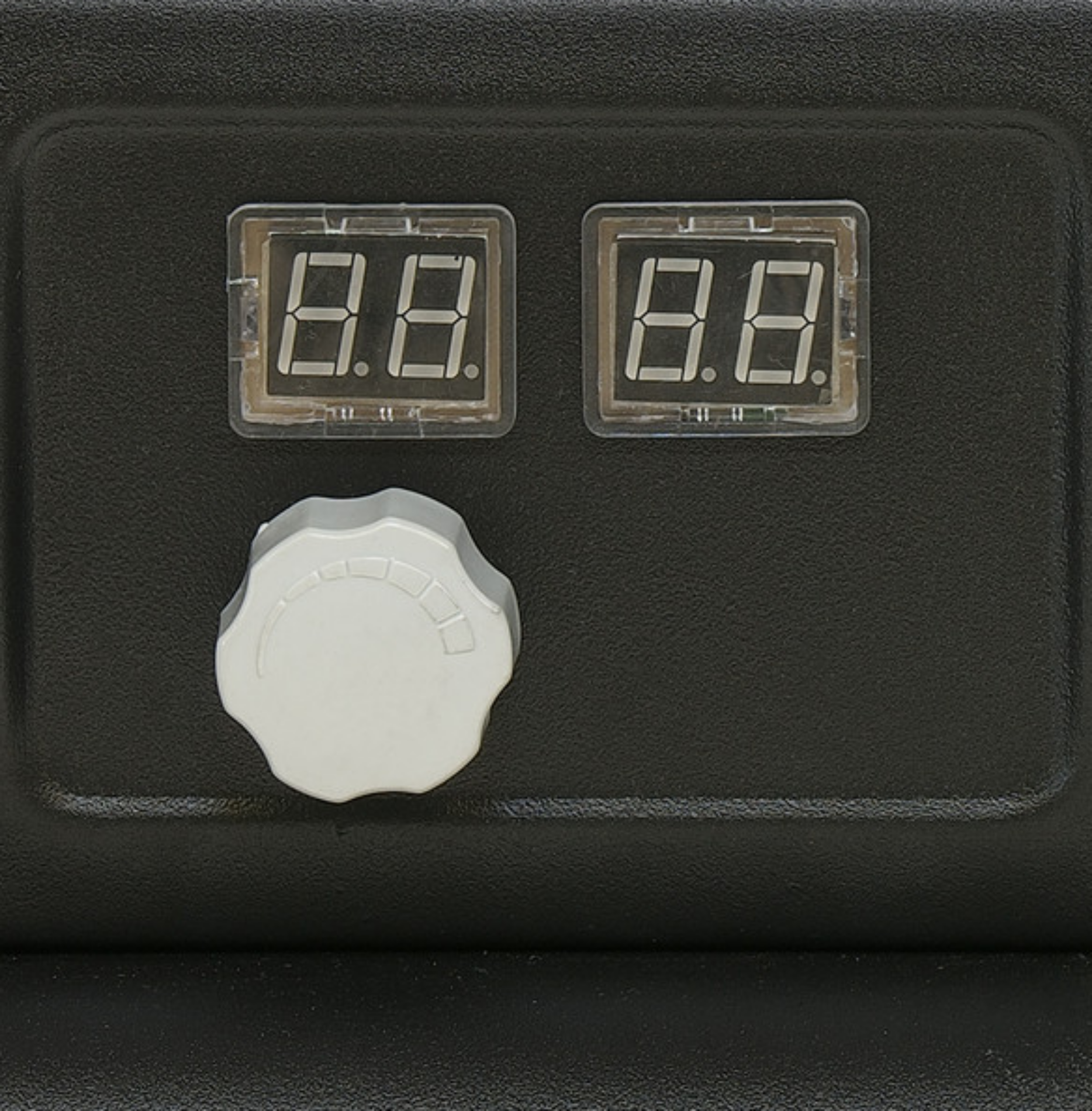

  • Integrated thermostat with dual display for required and ambient temperatures
  • Connection for external thermostat
  • Wheeled chassis for easy movement

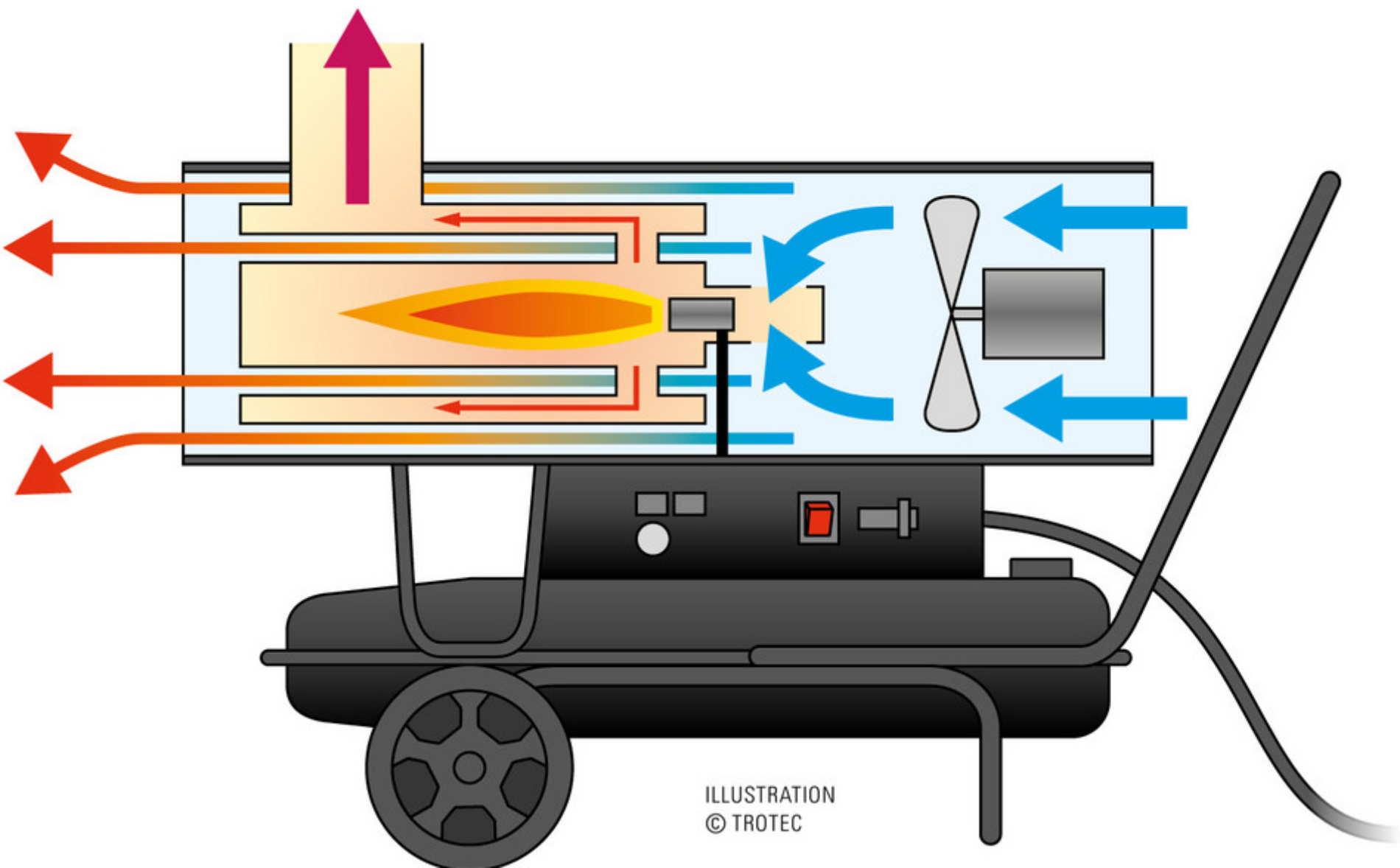

  • Heating function: indirect

Please contact us if you require further information or advice.

Technical Specification

Area Coverage (m³)
760
Product Type
Heaters
Length (mm)
1100
Width (mm)
490
Height (mm)
755
Weight (kg)
34.2
Voltage
230
Heat Output (kw)
30
Colour
White
Ductable
Yes
Installation
Portable
High Efficiency
Yes
Low Energy Values
Yes
Remote control
Built-in Control
Type
Space Heater
Voltage
230V
Warranty
3 Years
Thermostat
Optional Remote Thermostat

Document Download

Documentation File Format Size

Operating manual for oil heating units IDE 20 D / IDE 30 D / IDE 50 D / IDE 60 D / IDE 100 D (DA) PDF 5.4 MB
