    Tripod Adapter for Reference Spheres - 3 Set - 200mm

    SKU: 030-10172

    Set consisting of 3 Tripod Adapters for Reference Spheres in a case - (200mm sphere). Compatible with XXL Reference sphere.

    Back

    £454.91

    In stock
    Options
    Picture of Tripod Adapter for Reference Spheres - 3 Set - 200mm Tripod Adapter for Reference Spheres - 3 Set - 200mm £454.91

    Detailed Description

    This set consisting of three tripod adapters with claw system is especially suitable for reference spheres with a diameter of 200mm. The reference sphere can easily be screwed on the adapter and, then, used for laser scanning. The three adapters for reference spheres with a diameter of 200mm are protected in a high-quality case; thus, they are optimally suitable for field work.

    Designated use:

    • Positive centering of your reference sphere on a tripod by using a claw system
    • Connect the fixed points marked on the ground with your laser scanning project by rigging up a tripod on a fixed point and clamping the tripod adapter into your tripod

    Scope of application:

    • Working with positive centering
    • Creating reference points using fixed points on the ground by means of surveying tripod and tripod adapter with claw system
    • Placing reference spheres in natural surroundings (woods and meadows) without suitable magnetic ground

    Notes:

    • If you use a total station with a tilting axis height unlike 196mm/7.7 in, feel free to contact us! We will make an adapter that is adjusted for your individual needs.
    • Existing fixed points on the ground can easily be integrated in your laser scanning project.
    • The items delivered don not include a reference or a tripod.

    Features & Benefits

    • Tripod adapter suitable for all claw systems
    • Dimensions: 12cm height, 8cm diameter

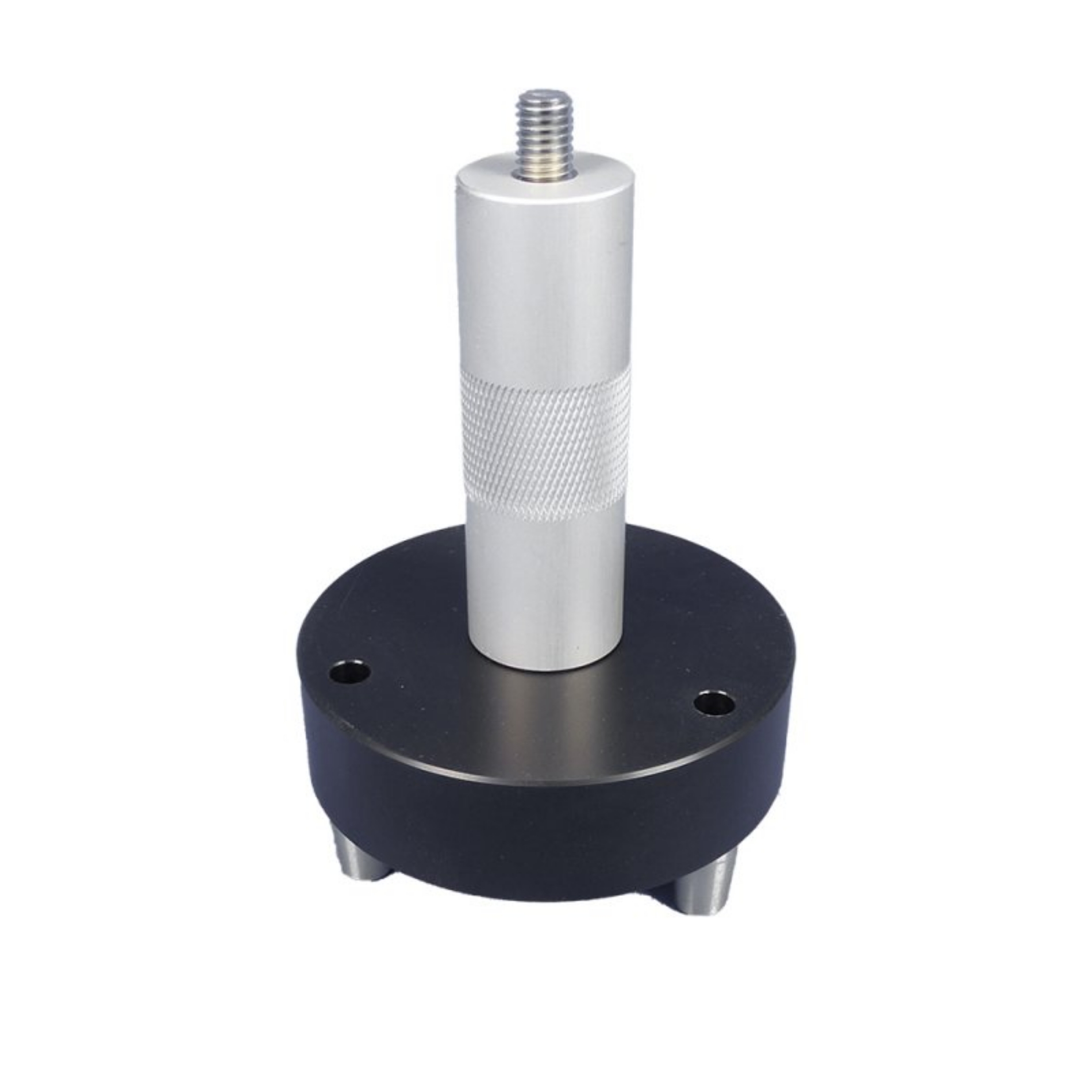

    • Adapter with M8 thread for screwing the reference sphere in tight
    • The center of the unscrewed reference sphere (200mm) is located in the height of the vertical axis and the tilting axis of all total stations with a tilting axis height of 196mm (e. g. Leica, Trimble)
    • Due to this position, the sphere's center can be determined tachymetrical easily by replacing the adapter by a prism

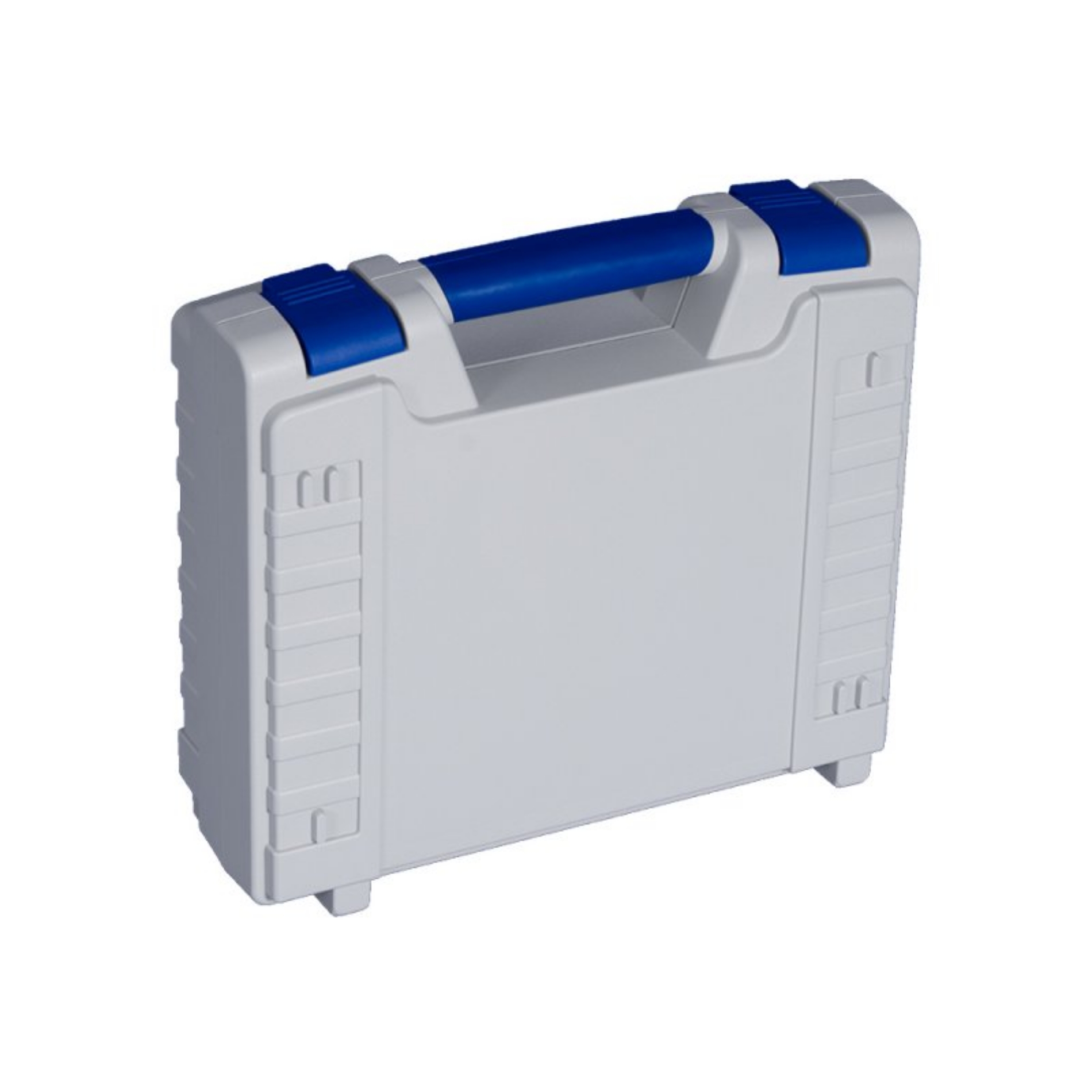

    • Case with precut foam insert for safe transport
    • Case dimensions: 300 x 275 x 110mm

    Technical Specification

    Document Download

    What's In The Box

    3x Tripod adapter with claw system
    1x Robust plastic case with foam insert

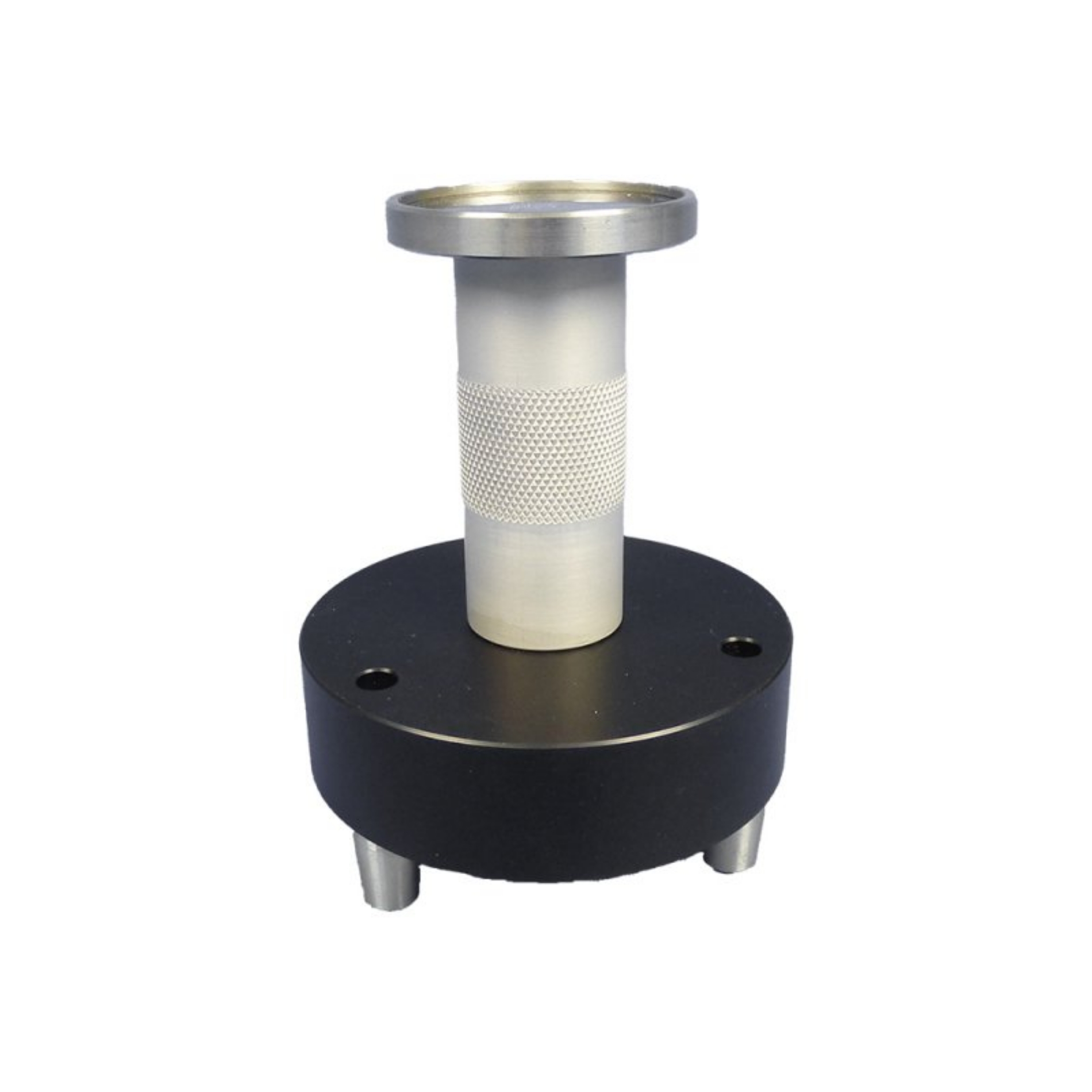

    Options for M8 thread or magnet clip
