    Tripod Adapter for Reference Spheres - 3 Set - 145mm

    SKU: 030-10170
    0 review(s) | Add your review

    Set consisting of 3 Tripod Adapters for Reference Spheres (145mm sphere), in a case.

    Back

    £358.80

    In stock
    Options
    Picture of Tripod Adapter for Reference Spheres - 3 Set - 145mm Tripod Adapter for Reference Spheres - 3 Set - 145mm £358.80

    Detailed Description

    Do you need several tripod adapters for reference spheres for your laser scanning project? In that case, our set consisting of three tripod adapters with claw system for reference spheres is just what you need. The set consisting of three adapters for reference spheres with a diameter of 145mm is provided in a high-quality case; thus, it is perfect for traveling. You can easily screw your reference sphere on the tripod adapter and start the registration.

    Designated use:

    • Positive centering of your reference sphere on a tripod by using a claw system
    • Connect the fixed points marked on the ground with your laser scanning project by rigging up a tripod on a fixed point and clamping the tripod adapter into your tripod

    Scope of application:

    • Working with positive centering
    • Creating reference points using fixed points on the ground by means of surveying tripod and tripod adapter with claw system
    • Placing reference spheres in natural surroundings (woods and meadows) without suitable magnetic ground

    Compatibility:

    • reference sphere Basic
    • reference sphere Traveler
    • reference sphere Flexi
    • reference sphere UltraX

    Notes:

    • If you use a total station with a tilting axis height unlike 196mm/7.7 in, feel free to contact us! We will make an adapter that is adjusted for your individual needs.
    • Existing fixed points on the ground can easily be integrated in your laser scanning project.
    • The items delivered don not include a reference or a tripod.

    Features & Benefits

    • Tripod adapter suitable for all claw systems
    • Dimensions: 15cm height, 8cm diameter

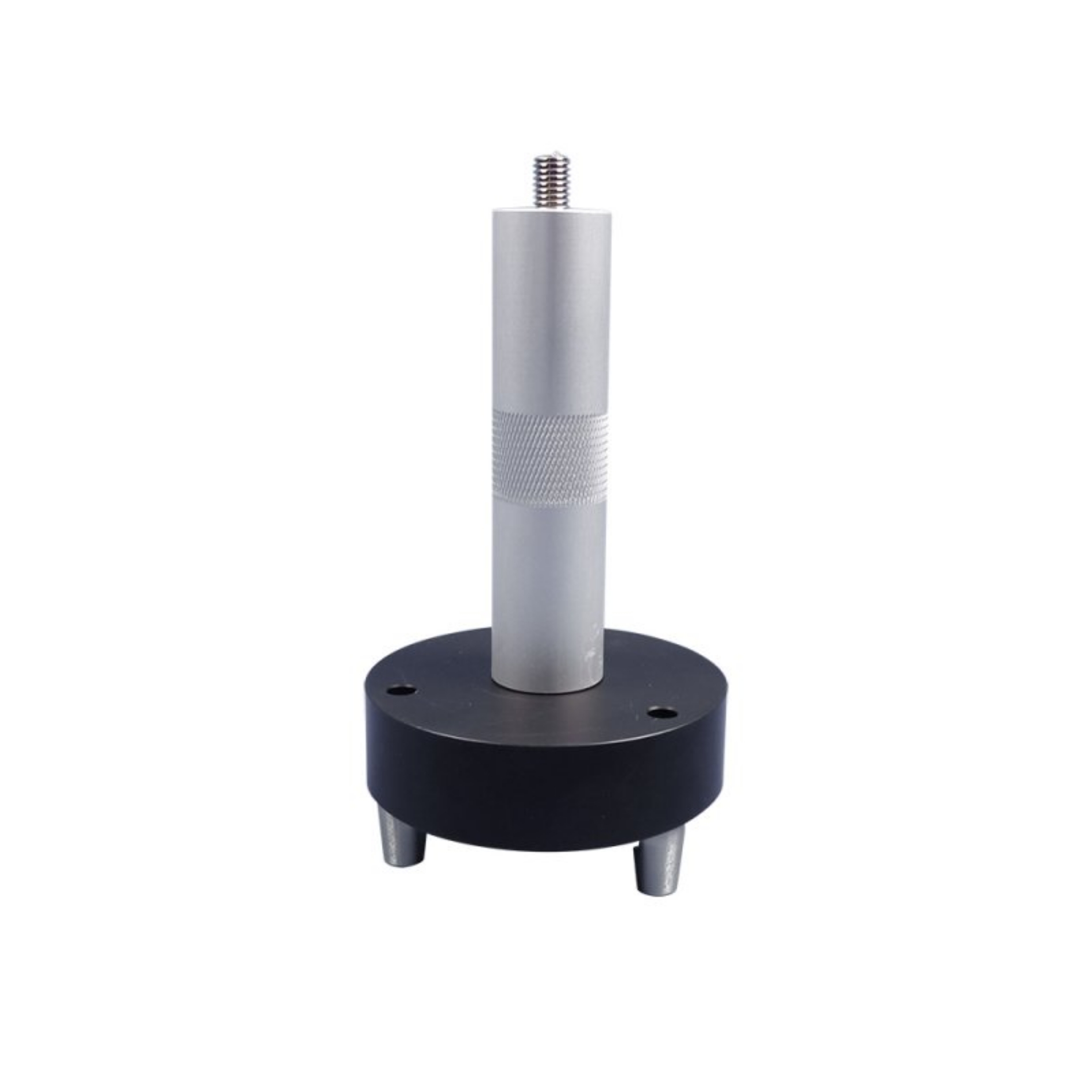

    • Adapter with M8 thread for screwing the reference sphere in tight
    • The center of the unscrewed reference sphere (145mm) is located in the height of the vertical axis and the tilting axis of all total stations with a tilting axis height of 196mm (e. g. Leica, Trimble)
    • Due to this position, the sphere's center can be determined tachymetrical easily by replacing the adapter by a prism
    • Case with precut foam insert for safe transport
    • Case dimensions: 300 x 275 x 110mm

    Technical Specification

    Call our Support Team on 0330 1759558 if you require more information on this product.

    Document Download

    Call our Support Team on 0330 1759558 if you require more information on this product.

    What's In The Box

    3x Tripod adapter with claw system
    1x Robust plastic case with foam insert

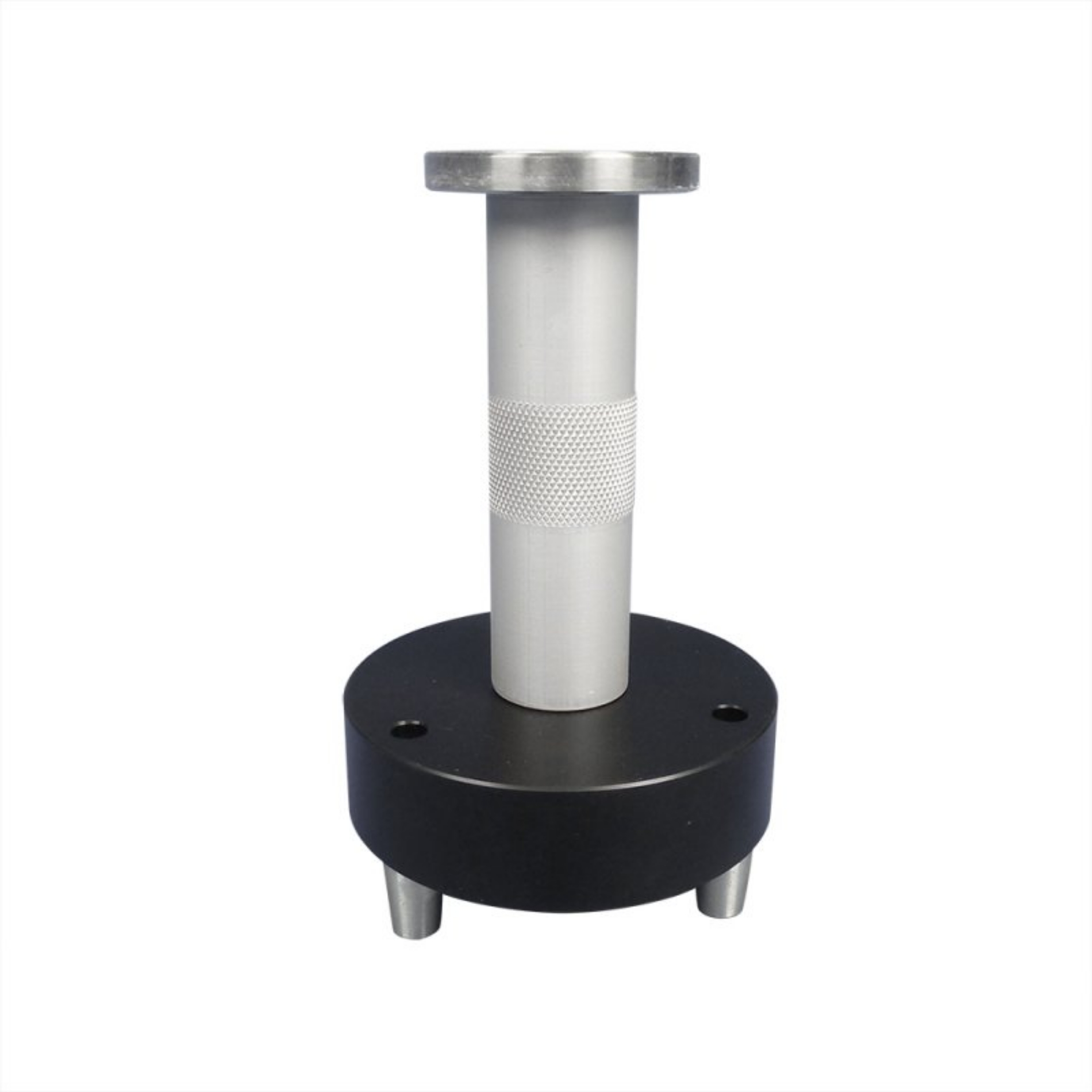

    Option of either an M8 thread or Magnet Clip
