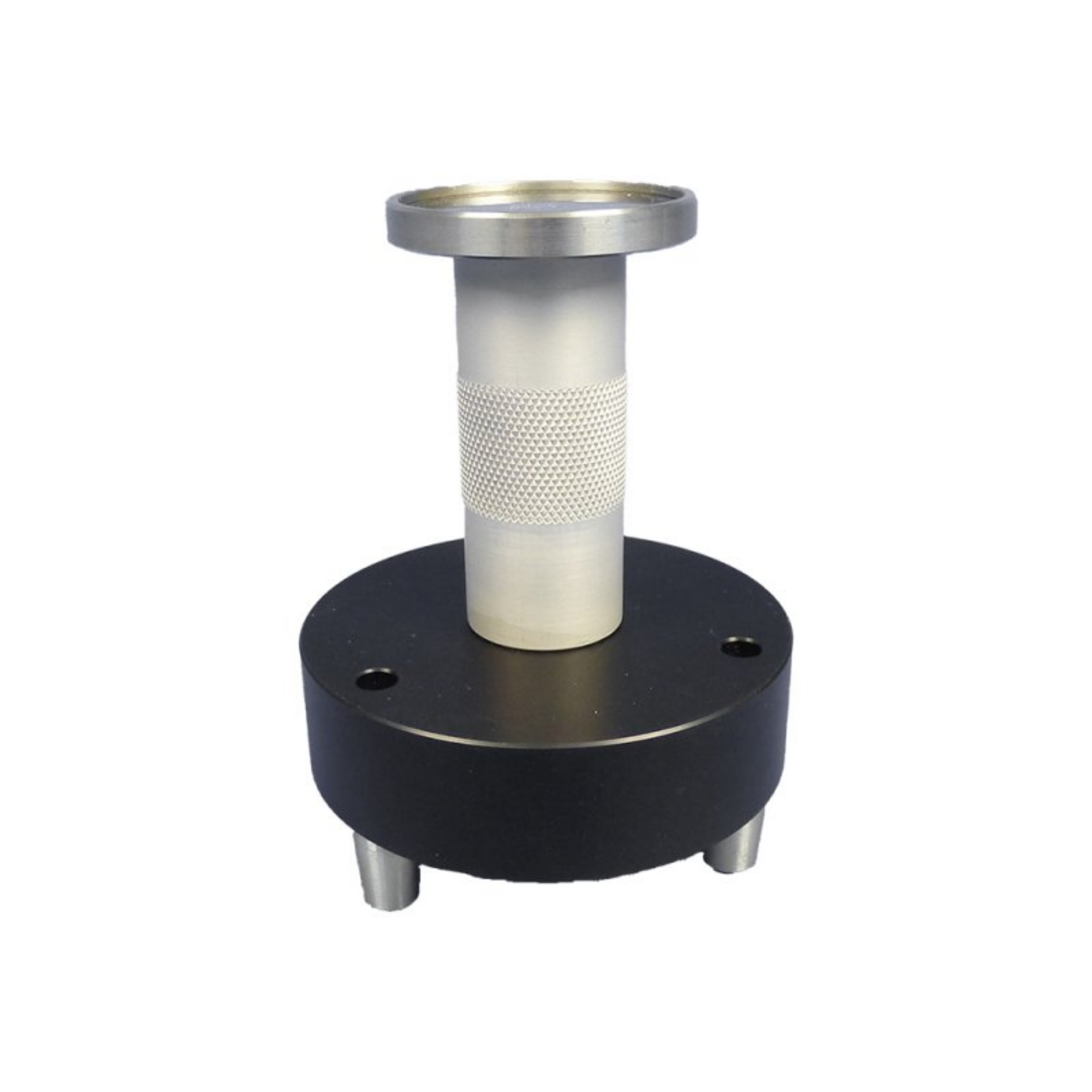

    Tripod Adapter for Reference Spheres - 200mm

    SKU: 030-10171
    0 review(s) | Add your review

    Tripod Adapter for Reference Spheres - M8 Thread (200mm sphere). Compatible with XXL Reference Sphere.

    Back

    £118.80

    In stock
    Options
    Picture of Tripod Adapter for Reference Spheres - 200mm Tripod Adapter for Reference Spheres - 200mm £118.80

    Detailed Description

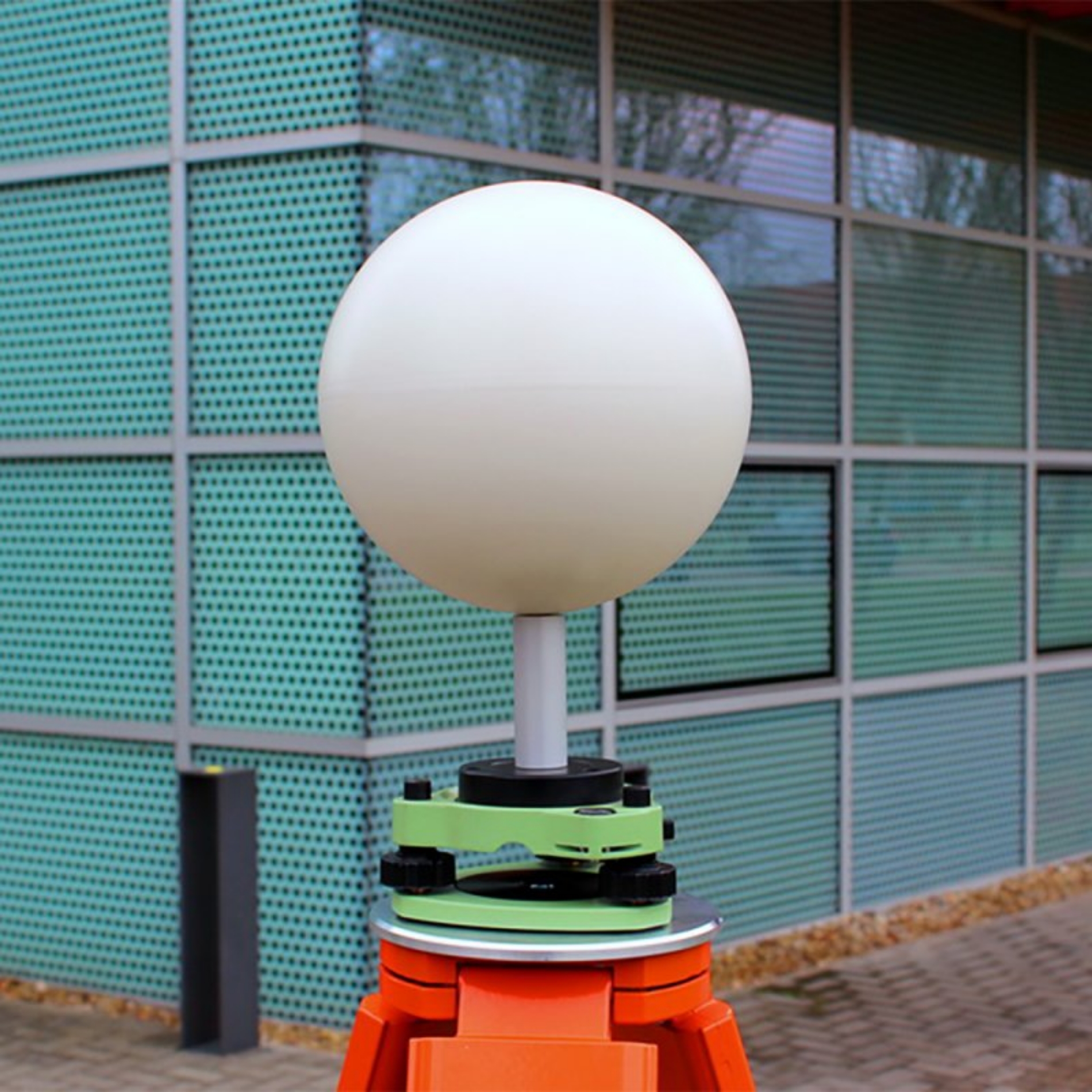

    You want to work with a positive centering? You want to cover large distances? Due to the tripod adapter with claw system, you can use your reference spheres (200mm diameter) wherever you can install a tripod. A positive centering is ensured with this adapter. The center of the reference sphere has a height of 196mm and, thus, is exactly located on the tilting axis height of many total stations (e. g. Leica, Trimble).

    Designated use:

    • Positive centering of your reference sphere on a tripod by using a claw system
    • Connect the fixed points marked on the ground with your laser scanning project by rigging up a tripod on a fixed point and clamping the tripod adapter into your tripod

    Scope of application:

    • Working with positive centering
    • Creating reference points using fixed points on the ground by means of surveying tripod and tripod adapter with claw system
    • Use of 200mm sphere allows the reference sphere's visibility even at a great distance to the scanner
    • Placing reference spheres in natural surroundings (woods and meadows) without suitable magnetic ground

    Notes:

    • If you use a total station with a tilting axis height unlike 196mm/7.7 in, feel free to contact us! We will make an adapter that is adjusted for your individual needs.
    • Existing fixed points on the ground can easily be integrated in your laser scanning project
    • The items delivered don not include a reference or a tripod

    Features & Benefits

    • The center of the unscrewed reference sphere (200mm) is located in the height of the vertical axis and the tilting axis of all total stations with a tilting axis height of 196mm (e. g. Leica, Trimble)
    • Due to this position, the sphere's center can be determined tachymetrical easily by replacing the adapter by a prism

    Technical Specification

    Call our Support Team on 0330 1759558 if you require more information on this product.

    Document Download

    Call our Support Team on 0330 1759558 if you require more information on this product.

    What's In The Box

    • 1 tripod adapter with claw system
    • 1 adapter piece with M8 thread or magnet clip
