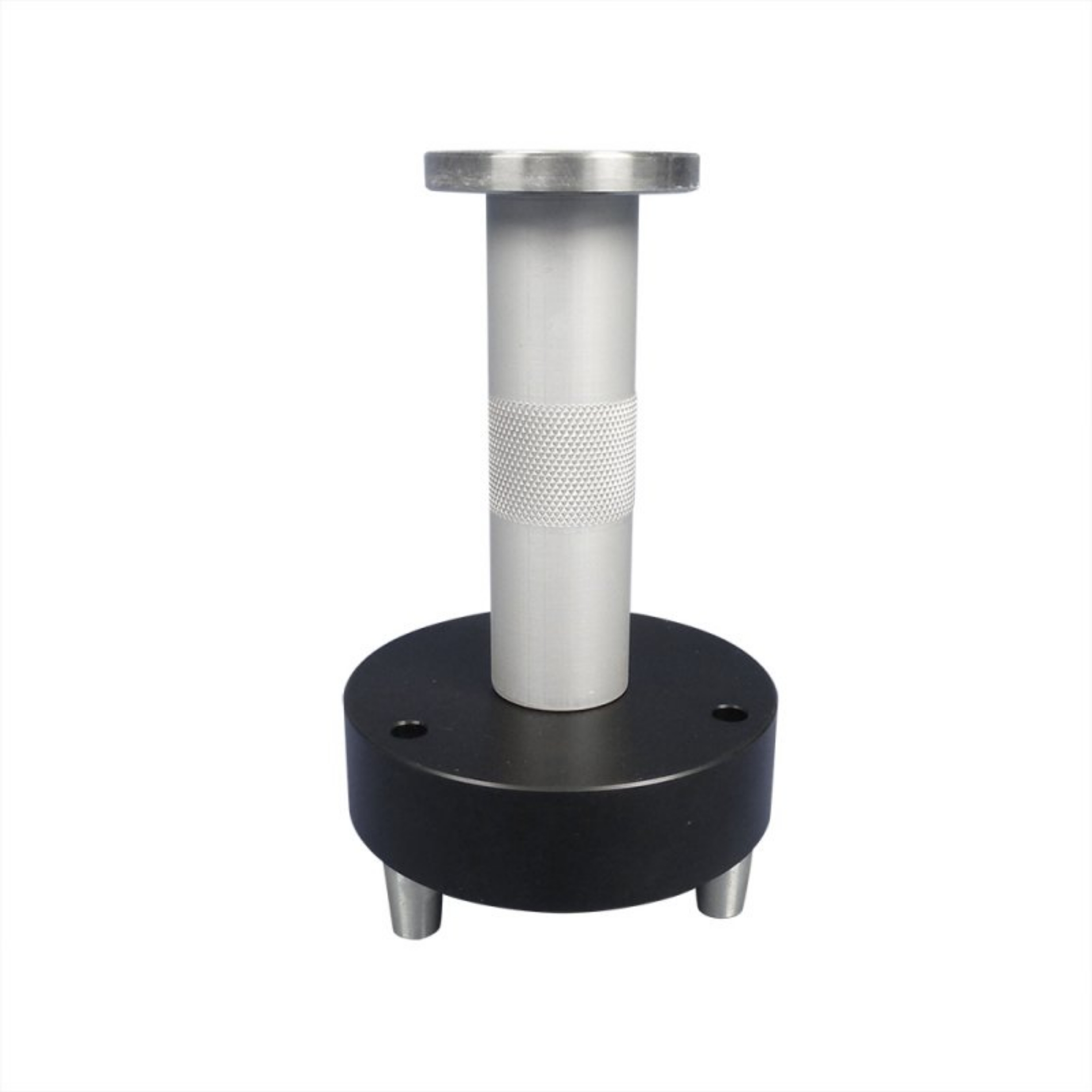

Tripod Adapter for Reference Sphere - (145mm / 5.7inch)

You want to work with a positive centering? You want to cover large distances? Due to the tripod adapter with claw system, you can use your reference spheres (145mm diameter) wherever you can install a tripod. A positive centering is ensured with this adapter. The center of the reference sphere has a height of 196mm and, thus, is exactly located on the tilting axis height of many total stations (e. g. Leica, Trimble).

Designated use:

• Positive centering of your reference sphere on a tripod by using a claw system

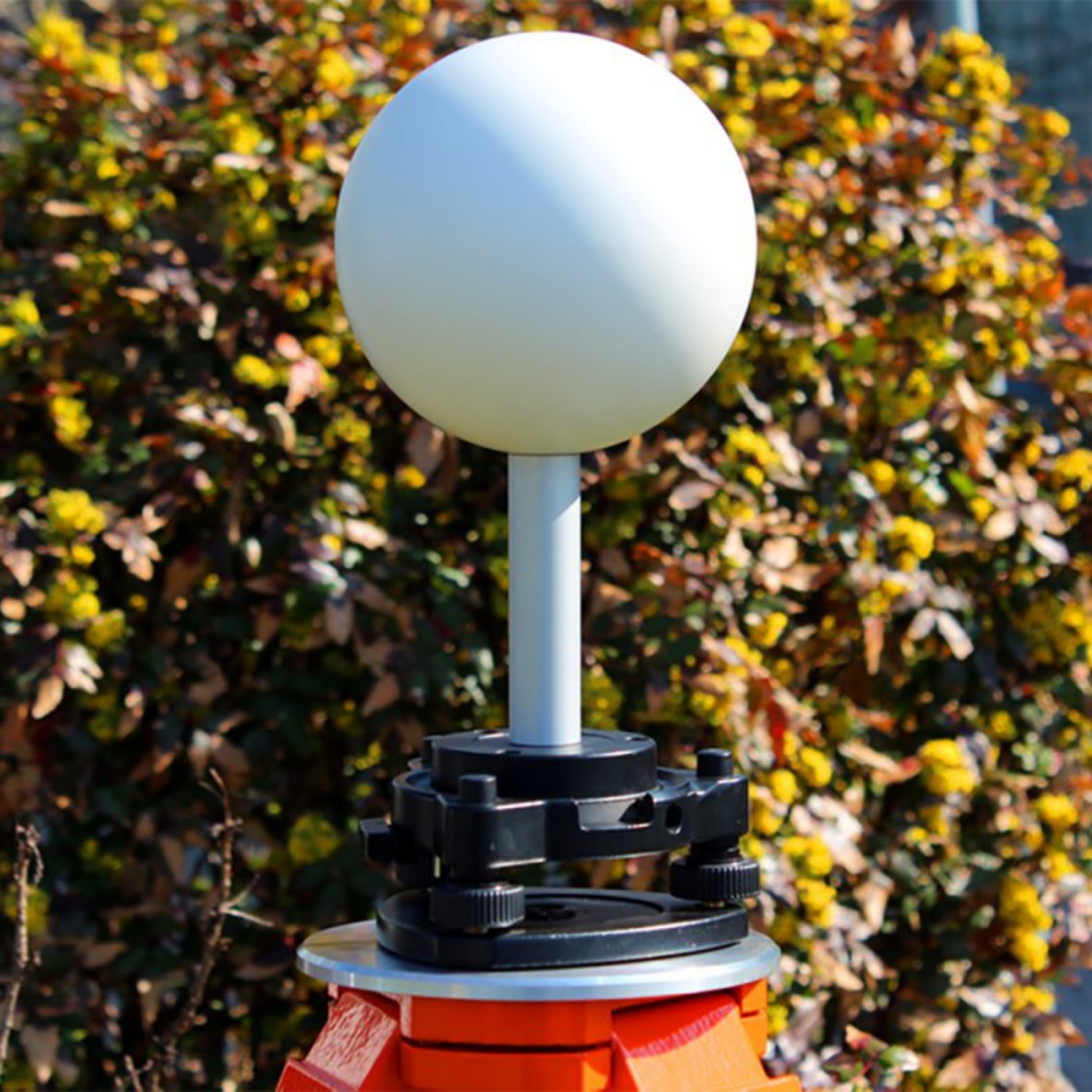

• Connect the fixed points marked on the ground with your laser scanning project by rigging up a tripod on a fixed point and clamping the tripod adapter into your tripod

Scope of application:

• Working with positive centering
• Creating reference points using fixed points on the ground by means of surveying tripod and tripod adapter with claw system
• Use of 145mm sphere allows the reference sphere's visibility even at a great distance to the scanner
• Placing reference spheres in natural surroundings (woods and meadows) without suitable magnetic ground

Compatibility:

• mini prism for reference sphere set
• reference sphere set Basic
• reference sphere set Traveler
• reference sphere set Flexi
• reference sphere set UltraX

Notes:

• Existing fixed points on the ground can easily be integrated in your laser scanning project
• The items delivered do not include a reference or a tripod
