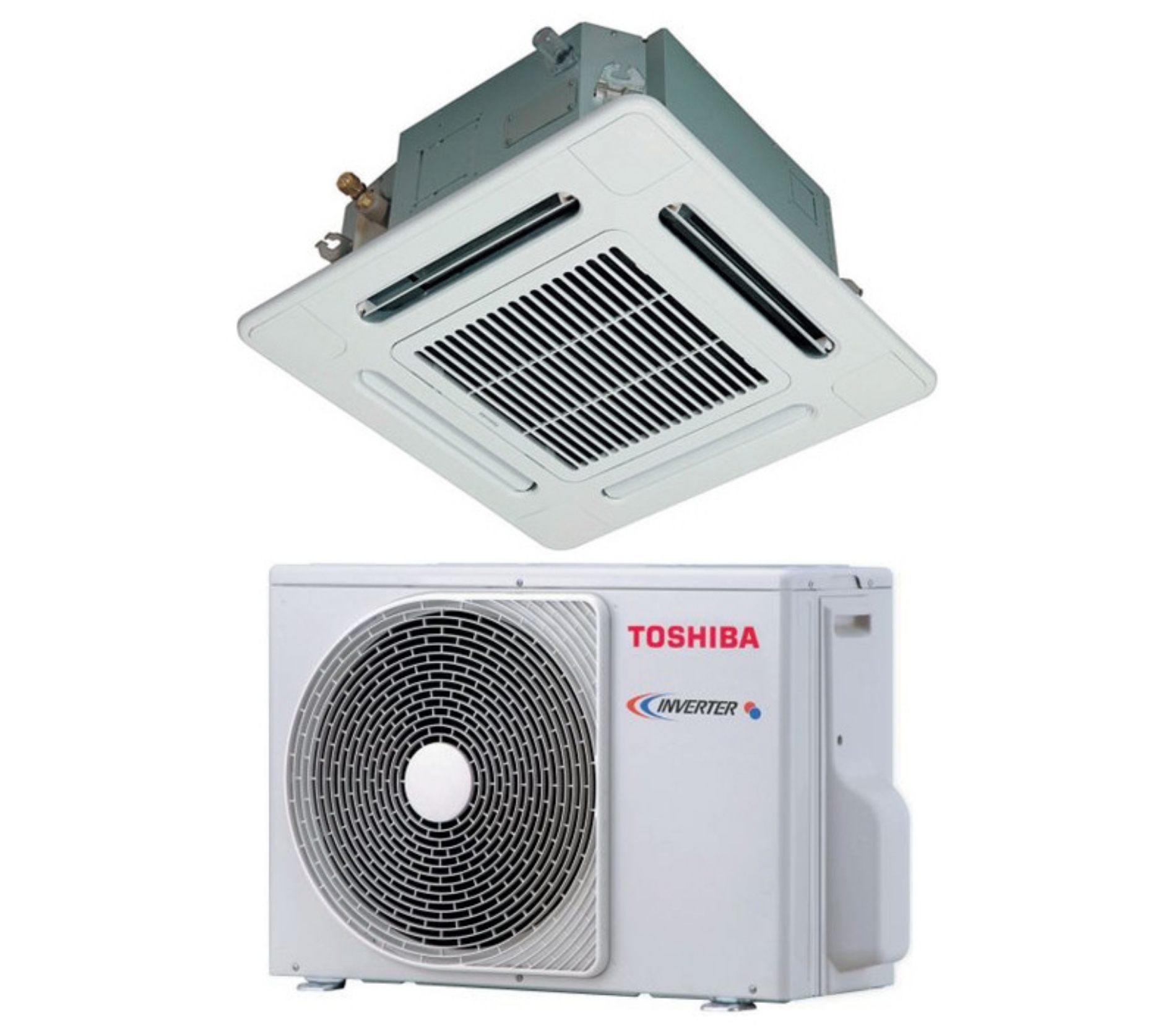

Toshiba 5kW Ceiling Cassette Split System
The compact 4-way cassette has been especially designed for small commercial application where a compact efficient unit is needed. Designed to suit all standard 600 x 600mm grid ceilings to allow simple and easy installation maintenance.. High performance combined with minimum consumption; ensure lower running cost, new elegant flat panel design for perfect grid ceiling.
With Digital and Super Digital Inverter outdoor units for refrigerant R32 or R410A.
Perfect for grid system ceiling | Comfort | Ease of installation & maintenance | Built-in condensate drain pump | Self clean mode
Toshiba continues to improve its range of split systems dedicated to commercial applications. Digital Inverter (DI), compact and already previously highly efficient has been totally redesigned. High performance combined with minimum consumption; ensure lower running cost, new elegant flat panel design for perfect grid ceiling.
This system comes with a 7 years manufacturer’s parts warranty
The split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside.
Our residential customers are looking to save money on sourcing the equipment with intentions to install the hardware, either themselves or by the builder. You will need an F-GAS registered engineer on standby to come and commission the unit once it is in place.
Alternatively, you could have your engineer completely fit the unit from start to finish, having saved a small fortune by sourcing the system from us.
We will ensure you are buying the correct unit for your space. If you need assistance please contact our team on 0330 175 9558 or email firstname.lastname@example.org. Alternatively, you can use our live chat option.
Features & Benefits
- Designed to fit within T-bar of the ceiling grid: 620 x 620mm
- Individual setting of louvre position: 3 different swing mode: standard, diagonally, opposite turn around
- 5 Step air flow control
- Compact and thin chassis with only 256 height
- Optional wireless remote controller receiver fits into the ceiling panel corner pocket
- Optional occupancy sensor detects human presence and automatically switches between standby mode, operation and stop operation, increasing energy saving
- Lightweight and very easy to install
- Elegant flat panel design depth 12mm for sleep, unobtrusive installation
- Removable corner pockets for easy access
- Infra-red and wired control options available
- Detachable louvre and grille for easy cleaning
- R32 Refrigerant – Protect the planet by reducing the impact of climate change
Documentation File Format Size
What's In The Box

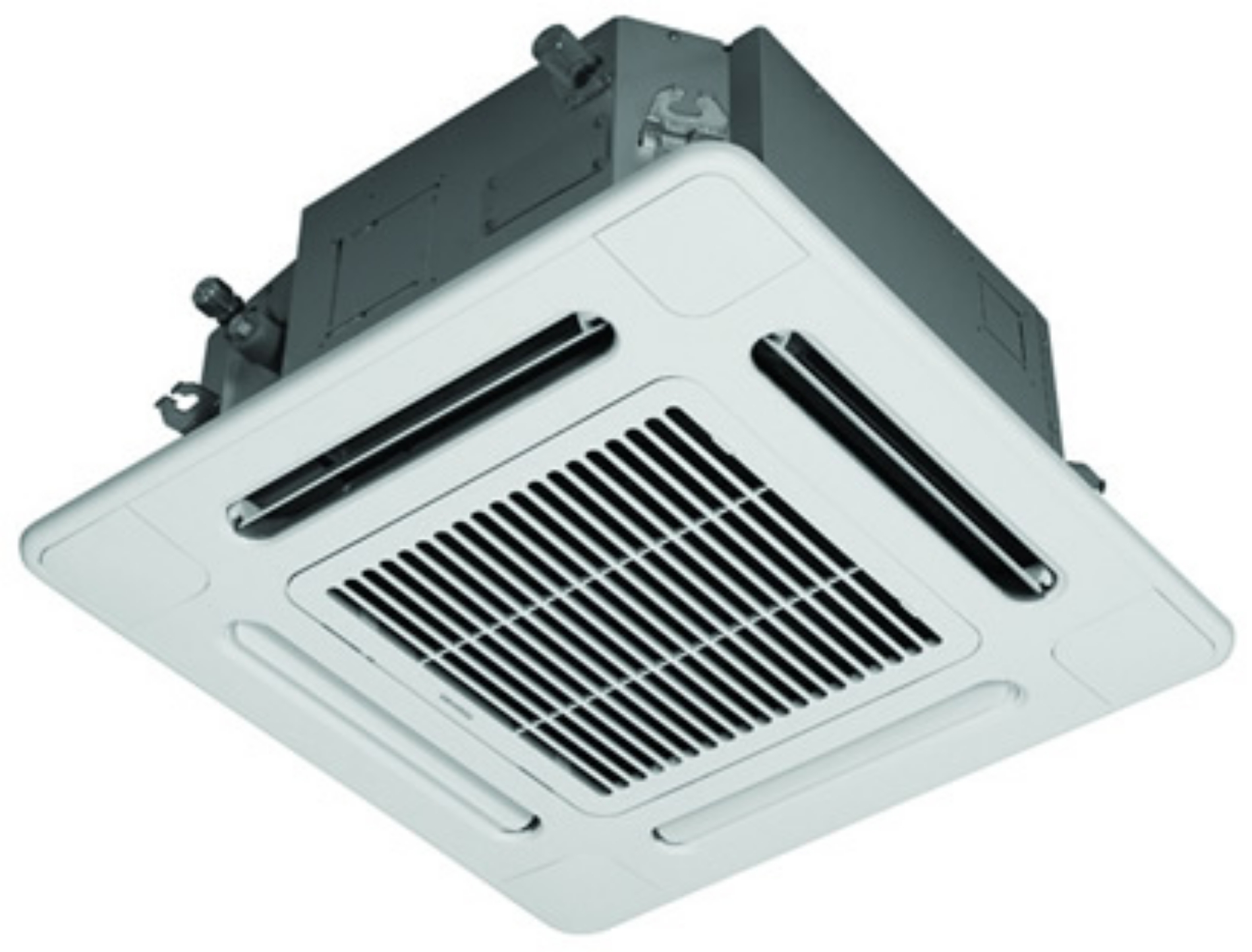

1 x RAV-RM561MUT-E 4-Way Ceiling Cassette

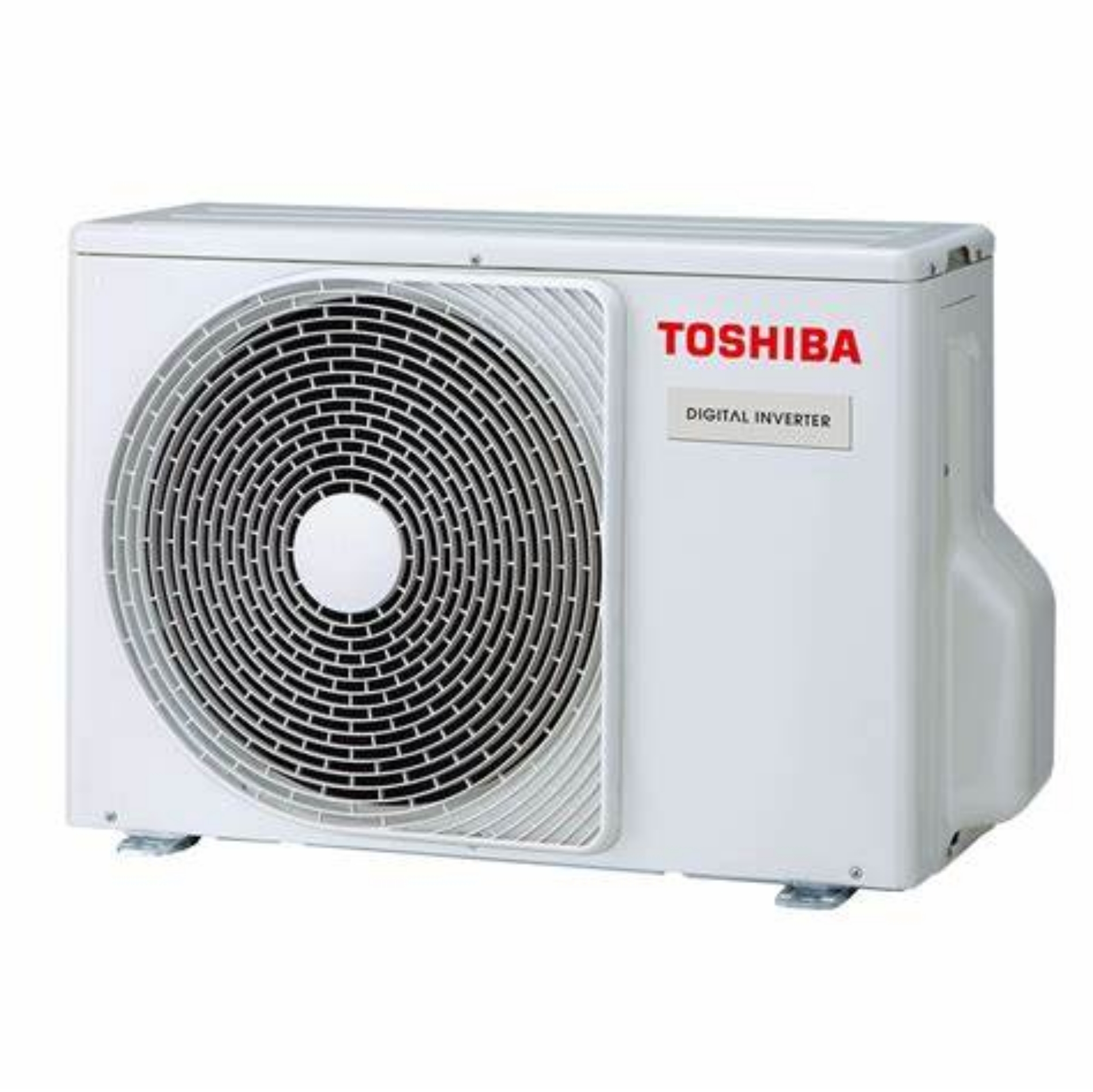

1 x RAV-GM561ATP-E Digital and Super Digital Inverter outdoor unit
