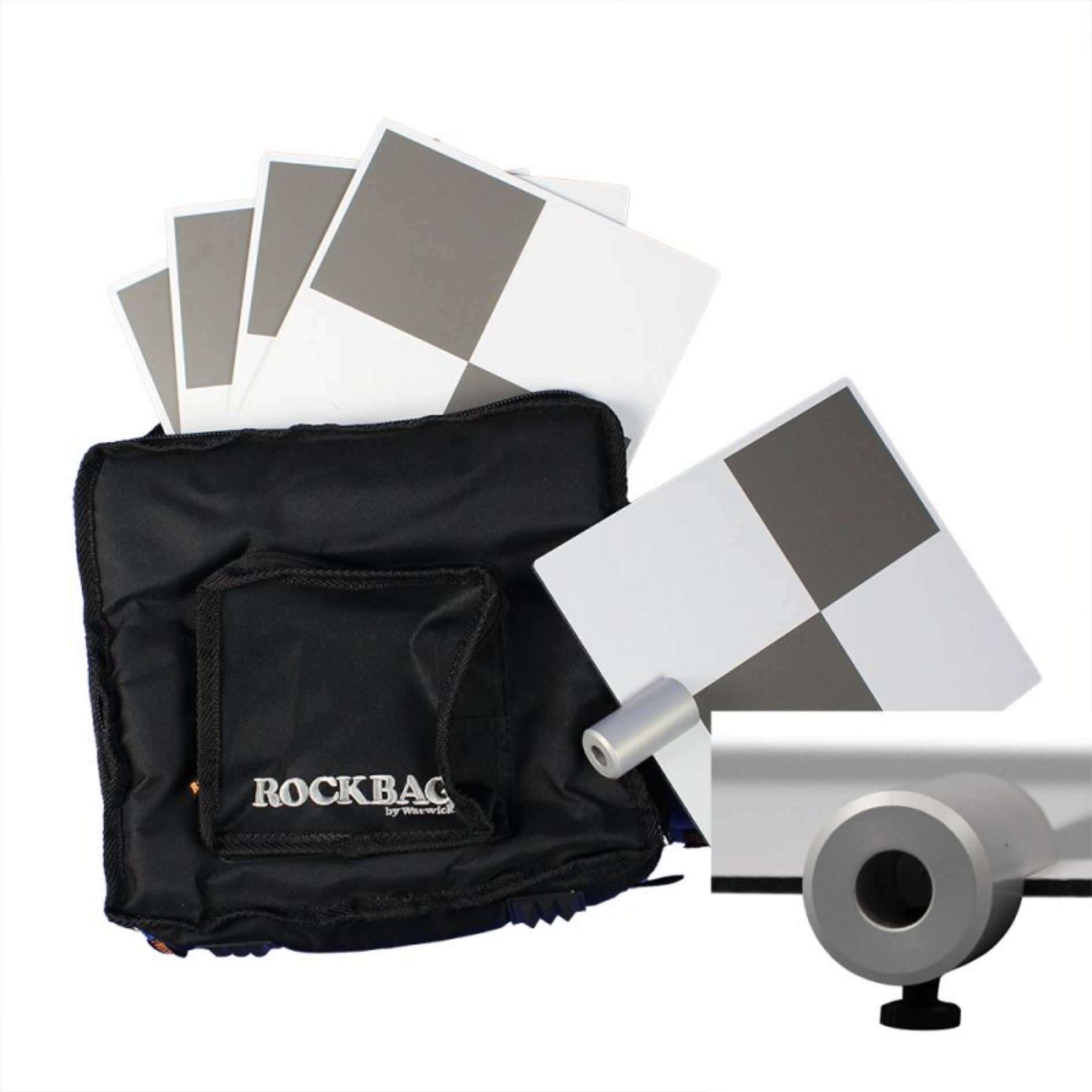

    Target Plate Set - Checkerboard - Small

    SKU: 030-10260
    0 review(s) | Add your review

    Set consisting of 5 checkerboard targets in a space-saving carrying case.

    Back

    £492.00

    In stock
    Accessories
    Picture of Target Plate Set - Checkerboard - Small Target Plate Set - Checkerboard - Small £492.00

    Detailed Description

    Universal: The laser scanning checkerboard target can be used with both laser scanners and tachymeters (non-reflective).

    Flexible: Besides its compact dimensions ensuring easy handling, the checkerboard target is an ideal laser scanning companion due to its ability to measure long distances.

    Designated use:

    • Registration mark visible up to 25m
    • Can be positioned flexibly and adjusted arbitrarily by use of a tripod or a prism pole

    Field of application:

    • Architecture, construction, and preservation of historic buildings and monuments
    • Digital factory and plant construction
    • Mining industry and tunnel construction
    • Energy and supplying industry
    • Chemical and process engineering
    • Forensic

    Tripod socket compatibility:

    • Leica plug (fixation is made with a horizontal knurled screw)
    • 5/8'' for fixation onto tripods or other appropriate surveying accessories
    • 1/4 inch for use on camera tripods
    • M8 thread + magnet: can be used with a LSE prism pole, a suction cup holder or simply with the magnets of our reference spheres

    Features & Benefits

    • Torsion-stiff plates with low weight
    • Weather-resistant
    • Remarkably even surfaces ensure excellent results
    • Dimensions of the plate: 24 x 21cm
    • Dimensions of the checkered pattern: 20 x 20cm
    • Integrated circular level
    • Can be mounted on different tripods and fits onto various adapters (available for Leica plug, M8 + magnet, 1/4" and 5/8'')
    • The axis of the checkered pattern is exactly situated in the axis of the connection. In the case of a level checkerboard target, the center of the checkerboard target is still unchanged in position and height when it pivots on the axis
    • The checkerboard target's center has the standard height of the tilting axis of 196mm (when the 5/8" connection is used in conjunction with a 32mm tall tripod
    • Bag made of a padded water-repellent material

    Technical Specification

    Call our Support Team on 0330 1759558 if you require more information on this product.

    Document Download

    Call our Support Team on 0330 1759558 if you require more information on this product.

    What's In The Box

    5 x Small laser scanner checkerboard target with adapter
    1 x Bag for safe transport
