Detailed Description

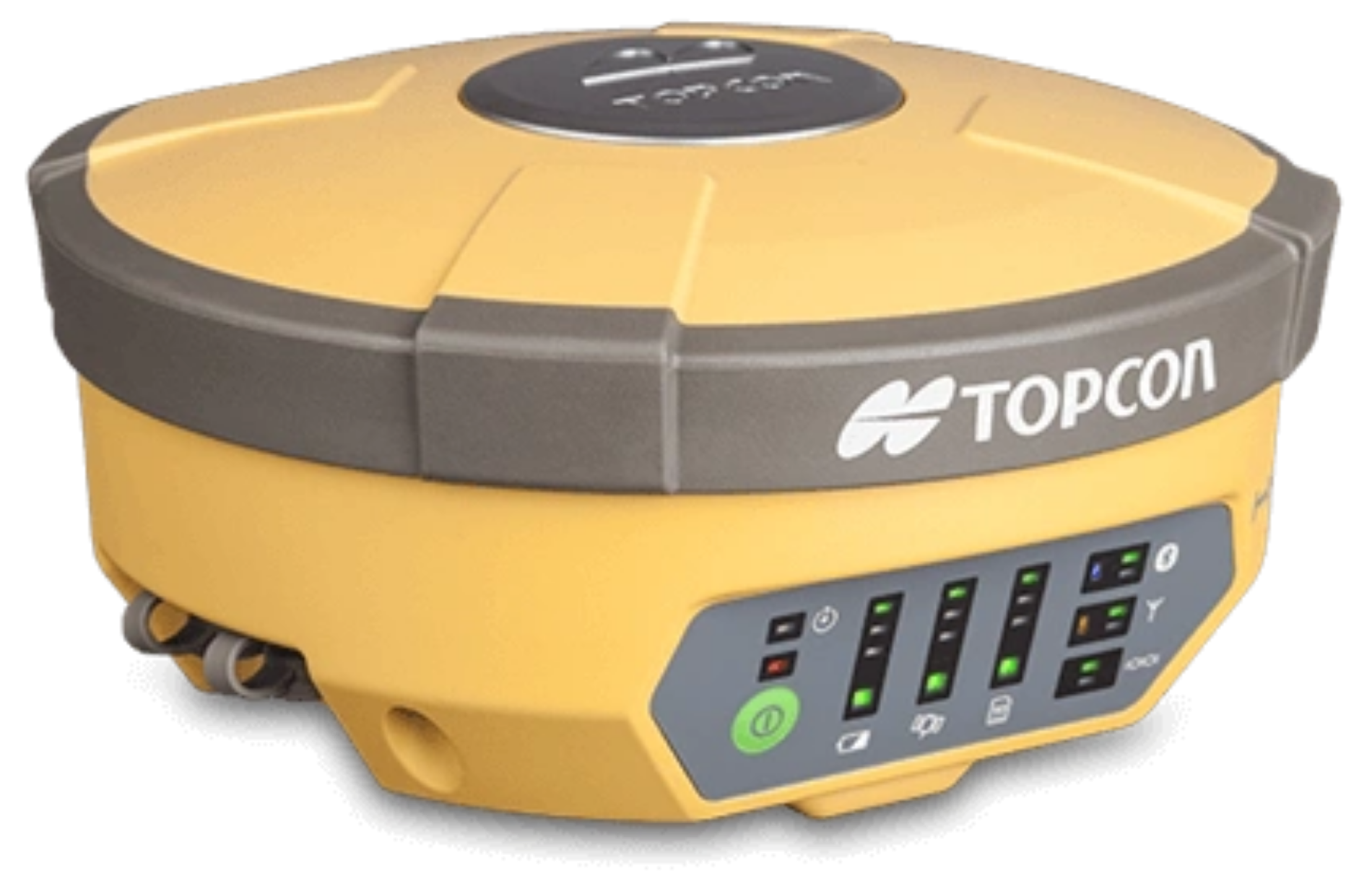

Topcon HiPer V Integrated Receiver Digital UHFII 440-470 Base & Rover Kits represent the high line in Integrated GNSS technology, with Bluetooth, Radio and Serial connectivity.
Featuring state-of-the-art Vanguard Technology, the Topcon HiPer V Integrated Receiver Base & Rover Kit supports 226 channels, with Fence Antenna to lock and fix quickly, and track for longer.
All Certified Approved Used Topcon equipment is fully reconditioned in our own Topcon-Accredited workshops by our Topconfactory-trained engineers and comes with:
12 months Certificate of Conformity
3 months warranty
Features & Benefits
| Weight | 2.20 lb |
| Dimensions | 7.24” Diameter x 3.74“ Height |
| Housing | Magnesium alloy |
Display/Keypad | |
| Type | 22 LED status indicators |
| Touchscreen | No |
| Size | 7.24" (184mm) Diameter, 3.74" (95mm) Height |
Temperature | |
| Operating | -40 to +149°F |
| Storage | -49 to +158°F |
Battery/Power | |
| Battery Life | >7.5 hours in static mode w/Bluetooth® connection |
| Power Source | Detachable and Rechargeable Lithium-ion Battery |
| Charging Time | 4 hours at 77°F |
| Voltage | 7.2V |
Tracking Features | |
| Satellites | WAAS, EGNOS, QZSS, and MSAS |
| Frequency | UHF II 440-470 MHz |
| Channels | 226 Universal |
| RTK | Integrated |
| Antenna | Fence Antenna |
Applications | |
| Mapping | Yes |
| Kinematic Survey | Yes |
Accuracy | |
| RTK | L1+L2/H: 10mm + 1ppm; V: 15mm + 1ppm |
| Static | L1 only:H=3mm + 0.8ppm V=4mm + 1ppm; L1+L2/H=3mm + 0.1ppm (1) V=3.5mm + 0.4ppm (1) |
| DGPS | Less than 0.5m (1.6 foot) |
Communication Interface | |
| Bluetooth | V2.1 + Enhanced Data Rate (EDR), Class 1, 115,200bps |
| Internal UHF | Receiver (RX) and transmitter (TX). Supports 410 to 470MHz radio frequency range. |
Advanced Features | |
| Speaker | Yes |
| Weather Protection | IP67 Dust and Water-Proof |
| Shock Protection | Drop-Proof |
Technical Specification
Document Download
What's In The Box
1x Hiper V Base / Rover
2x BDC70 Batteries
1x CDC68 Charger
1x Case
No controller is included. Email surveyusedapproved@sunbeltrentals.co.uk if you would like to look at an option with a controller
