    SPX Radiodetection

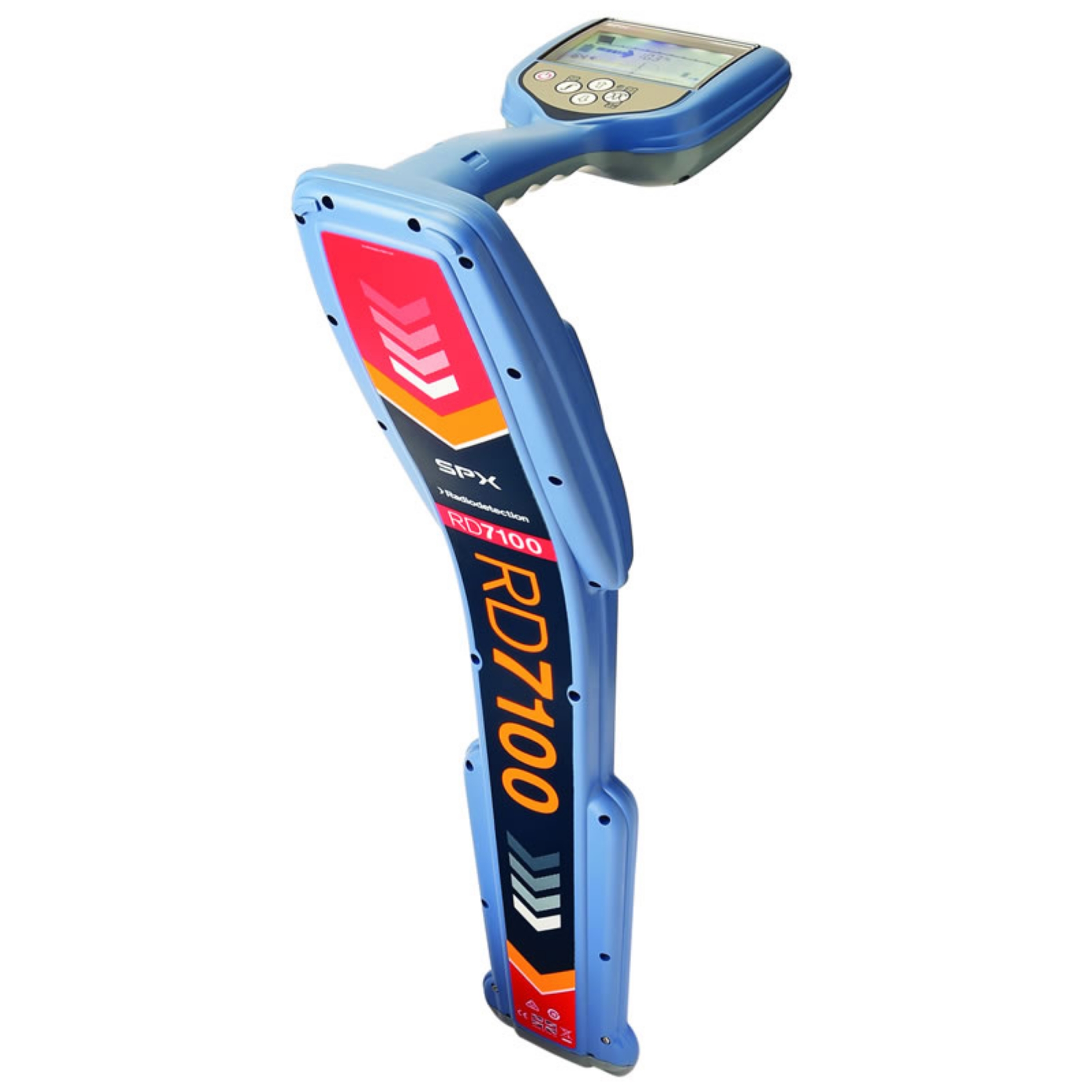

    Radiodetection RD7100 Precision Cable & Pipe Locator

    SKU: 10/71K
    0 review(s) | Add your review

    The RD7100 (successor to the RD7000) range offers the power of Radiodetection’s most advanced locating technologies, with each model optimized for a specific industry. Users benefit from the simplicity of having menu options and capabilities matched to their requirements.
    The GPS and usage logging models are designed to facilitate the observance of best working practices amongst remote crews.

    Back

    MSRP £1309.20 £1309.20

    In stock
    Model Options
    Accessory Options
    Picture of Radiodetection RD7100 Precision Cable & Pipe Locator Radiodetection RD7100 Precision Cable & Pipe Locator £1309.20

    Detailed Description

    Accurately locating and marking buried assets ensures minimum downtime during repair or maintenance activities. It also prevents damage which can be costly for both you and your customers.

    Range FeaturesSLDLDLGPLPLGTLTLG
    Locate Frequencies4555577
    Sonde Frequencies 441133
    Passive Modes2332222
    Compass in Active ModesYesYesYesYesYesYesYes
    Compass in Passive Modes CPSCPSPFPF
    Depth in Power   YesYes
    On-board GPS  Yes Yes Yes
    Usage Logging  Yes Yes Yes
    CALSafe™  o o o
    Power Filters (PF)   YesYes
    Fault Find   YesYesYesYes
    Lithium-Ion Batteryooooooo



    Applications:
    RD7100SL - Construction Industry

    Accurate and simple to use, the RD7100SL comes with four active and two passive frequencies that cover the majority of site locating tasks. A rugged, IP65 rated casing along with a high contrast screen make it suitable for use in all weather conditions.

    RD7100DL(G) - Water Industry
    With four sonde frequencies, the RD7100DL can be used to trace deep pipes made from a variety of materials including: cast iron, clay, concrete and brick. Additionally, it can be used to locate Cathodic Protection System (CPS) signals applied to pipelines.

    RD7100PL(G) - Power Industry
    Designed for use in dense infrastructures where signals from high voltage equipment and cables can be confusing or overwhelming. Dynamic Overload Protection reduces the effect of interference, while Power Filters™ can be used to establish if a large power signal comes from one source or from the presence of multiple cables.

    RD7000TL(G) - Telecom Industry
    RD7000TL features higher frequencies to locate high impedance cables amongst large bundled pairs and sonde frequencies for duct and conduit tracing. Higher frequencies can also be used to trace sheathed domestic cables without grounding connections. Cable sheath faults can be located to within 100mm using 8kHz Fault Find mode with a Radiodetection A-Frame.

    Features & Benefits

    Features:
    Guidance Mode allows you to quickly follow utility paths

    Guidance Mode allows you to rapidly find and follow the path of a buried utility. Directional information is displayed alongside proportional distance arrows to help find the utility and then keep you on its path. The simultaneous display of depth and current information gives confidence the correct utility is being traced even in congested networks. For rough or uneven terrain differentiated audio tones can be used, freeing the user to concentrate on potential hazards.

    Peak+™ Mode combines accuracy with speed
    Combine the accuracy of Peak locating with the rapid ground coverage of Guidance arrows in the new Peak+™ mode. A single key press lets you check for distortion by comparing Null with Peak.

    Automatic usage-logging with GPS positioning
    GPS equipped RD7100 locators automatically capture key locate parameters every second, providing a comprehensive picture of individual locates and allowing you to assess usage patterns over periods of a year or more.

    The data generated can be used to ensure adherence to best practice, or to identify training needs before poor work habits develop. Additionally, the information can be used for internal audits or shared with stakeholders to enable process improvements, and evidence task completion.

    Usage data can be exported in multiple file formats – for example, KML for Google Maps to confirm where and when the work was performed.

    Power Filters™ pinpoint and discriminate between power cables (PL models)
    When a signal transmitter can’t be connected, tracing individual power lines through complex networks can be a real challenge. Conflicting or powerful signals confuse, or combine to create a wash of signal. With a single key press you can now utilize the harmonic properties of power signals to establish if a signal comes from one source, or from multiple cables, then trace and mark their routes.

    Li-Ion rechargeable battery options
    Lithium-Ion rechargeable battery options for both locator and transmitter provide extended runtime with reduced running costs.

    Advantages:
    Powerful locating at your fingertips

    Interface consistency with our previous locators allows you to transfer knowledge and reduces retraining costs. Menu options and capabilities are matched to specific industries simplifying use.
    RD7100's ergonomic balanced design and light weight (1.9kg) ensures it is comfortable to use for extended periods.

    On-site operator confidence
    StrikeAlert™ in active and passive locating modes gives visual and audio warnings of shallow cables reducing the risk of accidents.
    TruDepth™ ensures depth readings are only given when RD7100 is correctly oriented ensuring you can be confident in the result.
    The integrity of the measurement system can be confirmed on-site. Self-test applies signals to the locating circuitry as well as checking display and power functions. ECERT™ allows you to verify and certify the calibration of your locator over the internet using RD Manager PC software package without returning the unit to a service centre.

    Simplify complex locates
    Simultaneous display of depth and current measurements gives you confidence you are following the correct line.
    Dynamic Overload Protection filters out interference, enabling use in electrically noisy environments such as near substations or overhead power lines.
    Industry specific frequencies and modes simplify menu options and reduce complexity.
    Power Filters™ uses the harmonic properties of mains networks to establish if a strong power signal comes from one source of multiple cables.

    Technical Specification

    Depth Estimation
    Yes
    Data Logging
    Yes
    GPS Data Logging
    Yes
    Connectivity
    Bluetooth Cable

    Document Download

    Documentation File Format Size

    Radiodetection RD7100 Brochure PDF 1.5 MB
    Radiodetection RD7100 User Manual PDF 2 MB
    Radiodetection RD7100 User Guide PDF 3.1 MB
    Radiodetection RD7100 Technical Specification PDF 0.1 MB

    What's In The Box

    Call our Support Team on 0330 1759558 if you require more information on this product.
