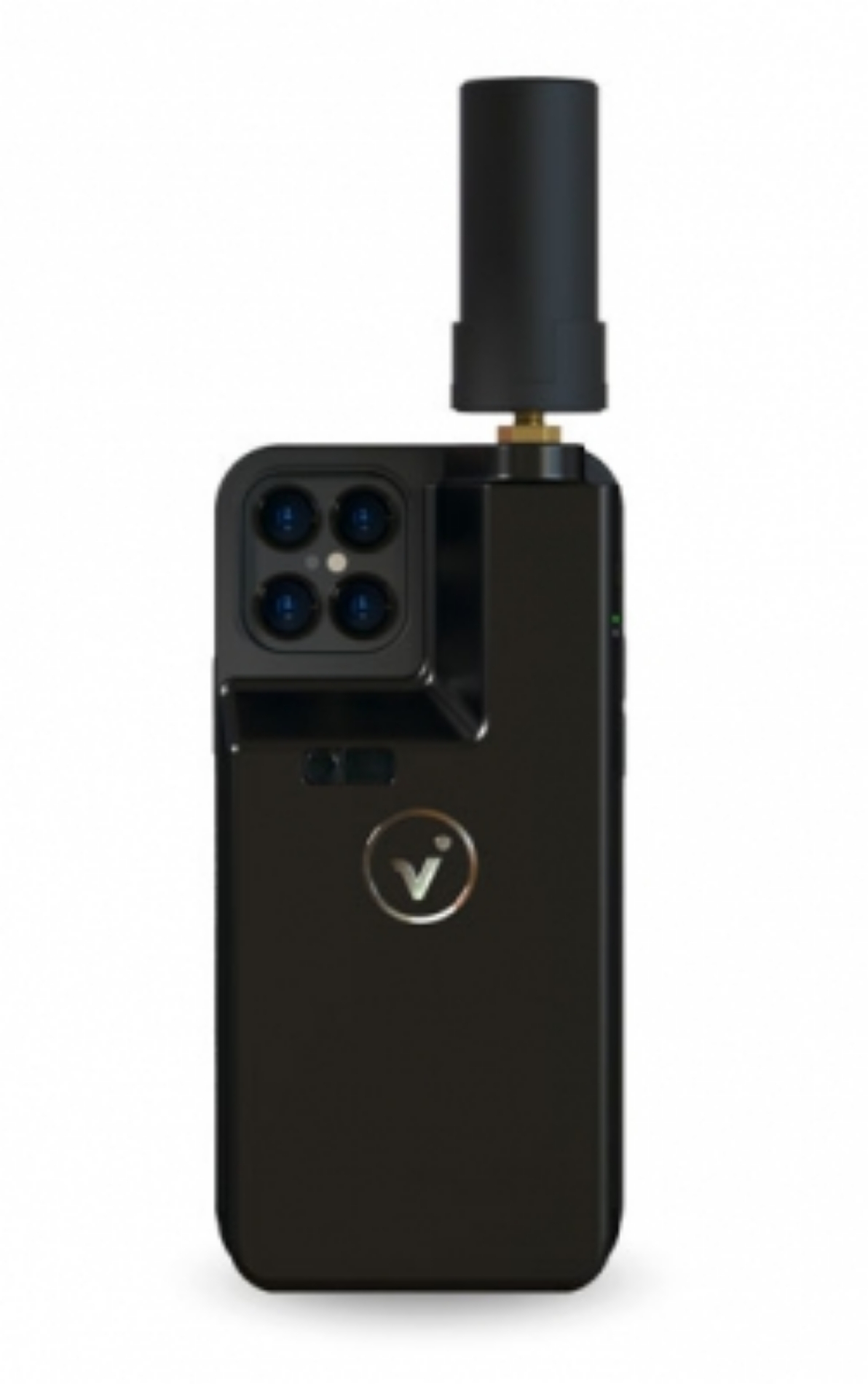

    Picture of Pix4D ViDoc RTK Rover

    Pix4D Vidoc RTK Rover Pix4D ViDoc RTK Rover for iphone Pix4D ViDoc RTK Rover for ipad Pix4D Vidoc RTK Rover 4 Pix4D Vidoc RTK Rover 5
    Pix4D

    Pix4D ViDoc RTK Rover

    SKU: VIDOC

    The viDoc RTK rover is the ideal ground image acquisition device. It geotags images collected with PIX4Dcatch in real-time when connected to any NTRIP service, allowing for absolute accuracy (under 5 cm) during ground data collection and surveying.

    Back

    £4700.00

    In stock
    Options
    Pix4D Vidoc RTK Rover Pix4D ViDoc RTK Rover £4700.00

    Detailed Description

    Use a handheld RTK rover to elevate single point measurement with 3D scans. For selected iPhones and iPads.  The future of single point measurement with 3D scanning.

    Easy field-to-finish workflows - Easy digitalisation with Pix4D software that can measure single points or create line work from data capture.

    RTK positioning rover for 3D scanning - viDoc RTK rover pairs with the Pix4D Catch to geotag images of the 3D scan in real-time using NTRIP services.

    Enhanced mobile data collection - viDoc connects to over 600 channels (including all major constellations such as GPS, GLONASS, Galileo, etc.) which results in convergence in under 5 seconds.

    Replacing complex workflows - Ground surveying equipment like laser scanners can be expensive, bulky, and highly technical. Drones can be restricted by regulations. Overcome the obstacles with a handheld rover.

    A complete, accurate workflow in your hands - The viDoc, the iOS device, PIX4Dcatch, and PIX4Dcloud. An end-to-end solution that gets measurements with an absolute accuracy of less than 5cm.

    Intuitive feel and structure - Easy for anyone to collect points or complete an accurate 3D scan. The handheld rover combines with mobile software to create digital twins as fast as possible.


    Multiple options for accurate point measurement

    Measure with the laser, photogrammetry, or attach it to a surveying rod.

    Measure obstructed points

    Complete data collection without missing anything that may be obstructed by objects like trees or overhangs.

    Accurate and safe measurement methods

    Get your measurements and reduce risks - cut unnecessary trench visits, etc. Make data collection safer.




    Features & Benefits

    Includes 2 year warranty

    Optimised for use with PIX4Dcatch

    GNSS Antenna  satellite signals: GPS, GLONASS, BeiDou, Galileo

    242g

    Compatible with 2020 and 2021 iPad Pro (11 inch models only)

    Compatible with Android devices with ARCore capability

    Compatible with iPhone models:

    • iPhone 13 Pro
    • iPhone 13 Pro Max
    • iPhone 12 Pro
    • iPhone 12 Pro Max
    • iPhone 11 Pro*
    • iPhone 11 Pro Max*
    • iPhone XR*



    Technical Specification

    Inst Reflectorless Range
    1000m
    Length (mm)
    153
    Width (mm)
    19
    Height (mm)
    72
    Weight (kg)
    0.242
    Battery
    2.400mAh
    Angular Accuracy (")
    5

    Document Download

    Documentation File Format Size

    Technical data specifications PDF 1.9 MB
    Pix4D ViDoc and Pix4Dcatch Product Brochure PDF 4.8 MB

    What's In The Box

    ViDoc RTK Rover for iPad Pro:

    • ViDoc RTK rover device
    • GNSS antenna
    • USB-C charging cable
    • Hard carrying case

    ViDoc RTK Rover for iPhone and Android:

    • ViDoc RTK rover device
    • SP phone case
    • GNSS antenna
    • USB-C charging cable
    • Hard carrying case
