Move Digital Communication Node Detailed Description
Once the sensors are connected to this wireless device and the Gateways are correctly installed on-site, they are ready to receive, store and send data. You can freely configure the Digital Node and all the sensors connected remotely using the Move Cloud Platform. Perfect for implementing any monitoring system and meeting all project requirements.

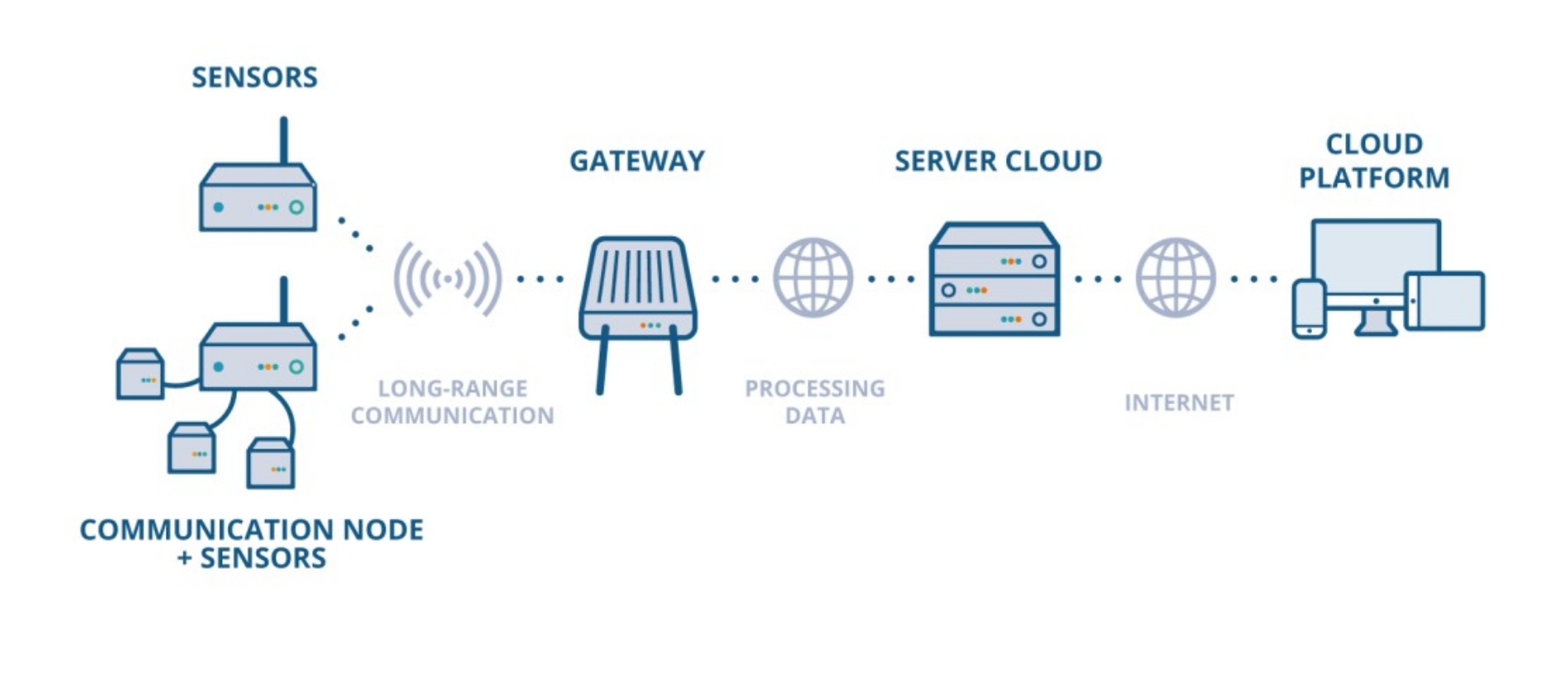

The wireless sensor system automatically communicates the measurement data via LoRaWAN with the on-site Gateway which in turn sends the received data via 4G or LTE to the online servers.
The Move Cloud Platform is the cloud-based web tool that allows you to access, view and export your measurement data and configure the settings of the entire sensor system. You can access the Move Cloud Platform 24/7 from any location or device around the world.
One of the main advantages of the Move Cloud Platform is that it offers remote access to measurement data and allows remote configuration of all installed sensors. This saves time and labor. In addition, you can analyze the measurement data using processing algorithms included in the service. Perform complex calculations, correlations and analyzes automatically and effortlessly.
With the touch of a button, you can export measurement data in CSV format. You can also easily configure alerts to multiple recipients who will receive threshold cross notifications via email.
Geo-environmental Monitoring
Analyzing the displacement of the ground (settlement or lateral movement) and the stress-deformation state of the ground with inclinometer probes and vibrating ropes. You can also monitor all external atmospheric agents such as wind direction and speed, rain, humidity and temperature.
Hydrogeological Monitoring
With sensors such as piezometers, it is possible to monitor the level of groundwater and surface water and correlate it to the soil subsidence values.
Structural Monitoring
The use of crack meters allows you to keep a dangerous crack pattern under control. You can also monitor the stress-strain state of the structural elements using strain gages and correlating the data with the temperature.
Geotechnical Monitoring
By inserting load and pressure cells into the ground, it is possible to monitor both the pressures exerted by the ground and the distribution of loads on the foundations and their deformations.
Features & Benefits
- A wireless device with a built-in long-life battery.
- Enables to LoRaWAN wireless communication any wired sensor.
- 1 BUS supported, up to 30 sensors.
- The sample rate can be set remotely.
- Support all Modbus – RS485 sensors.
- Extremely easy installation with versatile mounting options.
- Waterproof rating IP67.
- Easily install the entire system on the structure without the use of wiring.
- Configure all wireless sensors quickly and remotely.
- View real-time measurement data wherever you are, on any device, 24/7.
- Process the data collected through the implemented algorithms.
- Constantly monitors the operating status and signal quality of the system remotely.
- Customize your alarm notifications and receive overrun notifications by email.
- Optionally, you can integrate data on your platform using an MQTT bridge, FTP or through API calls.
Technical Specification
What's In The Box
