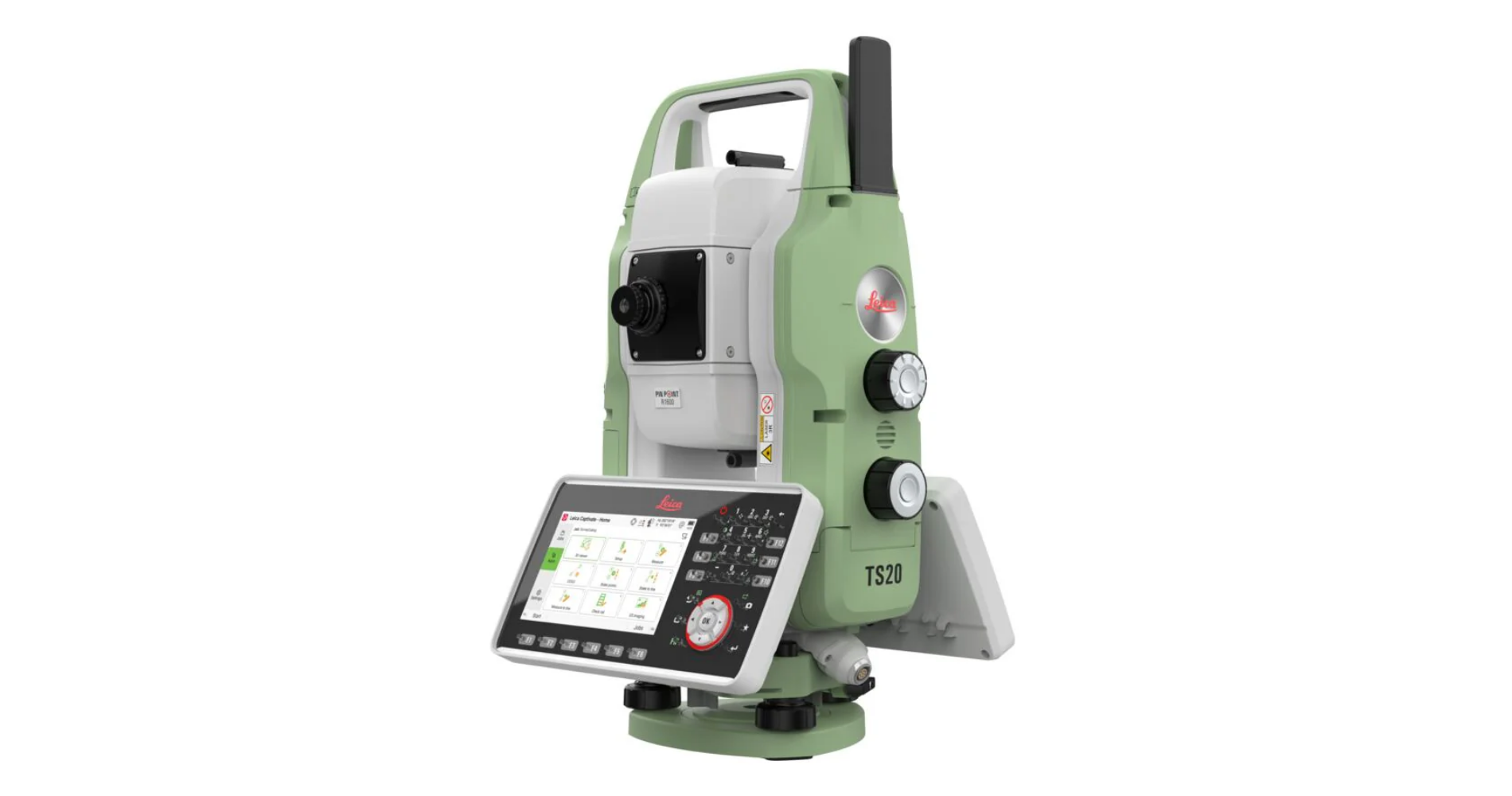

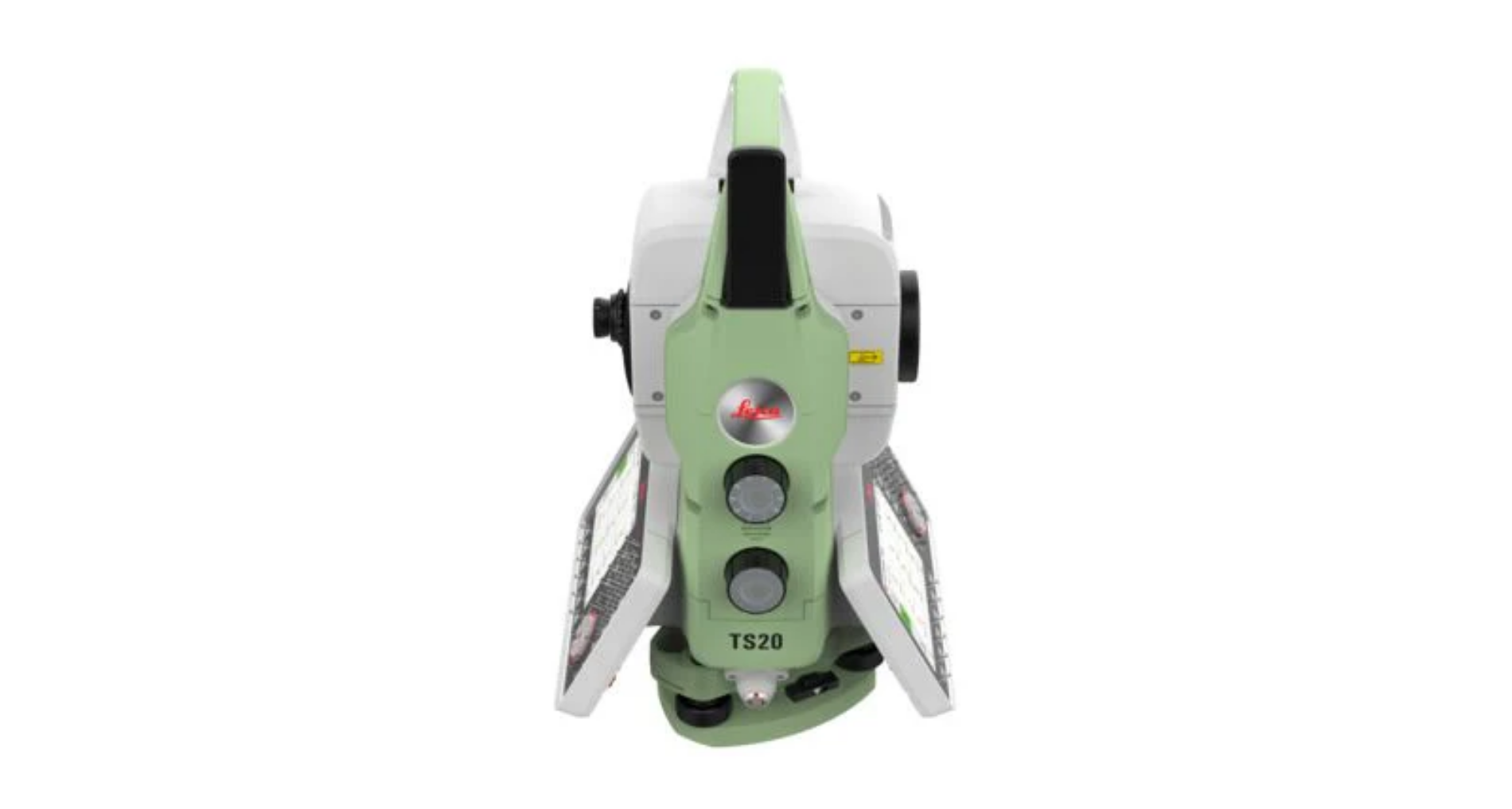

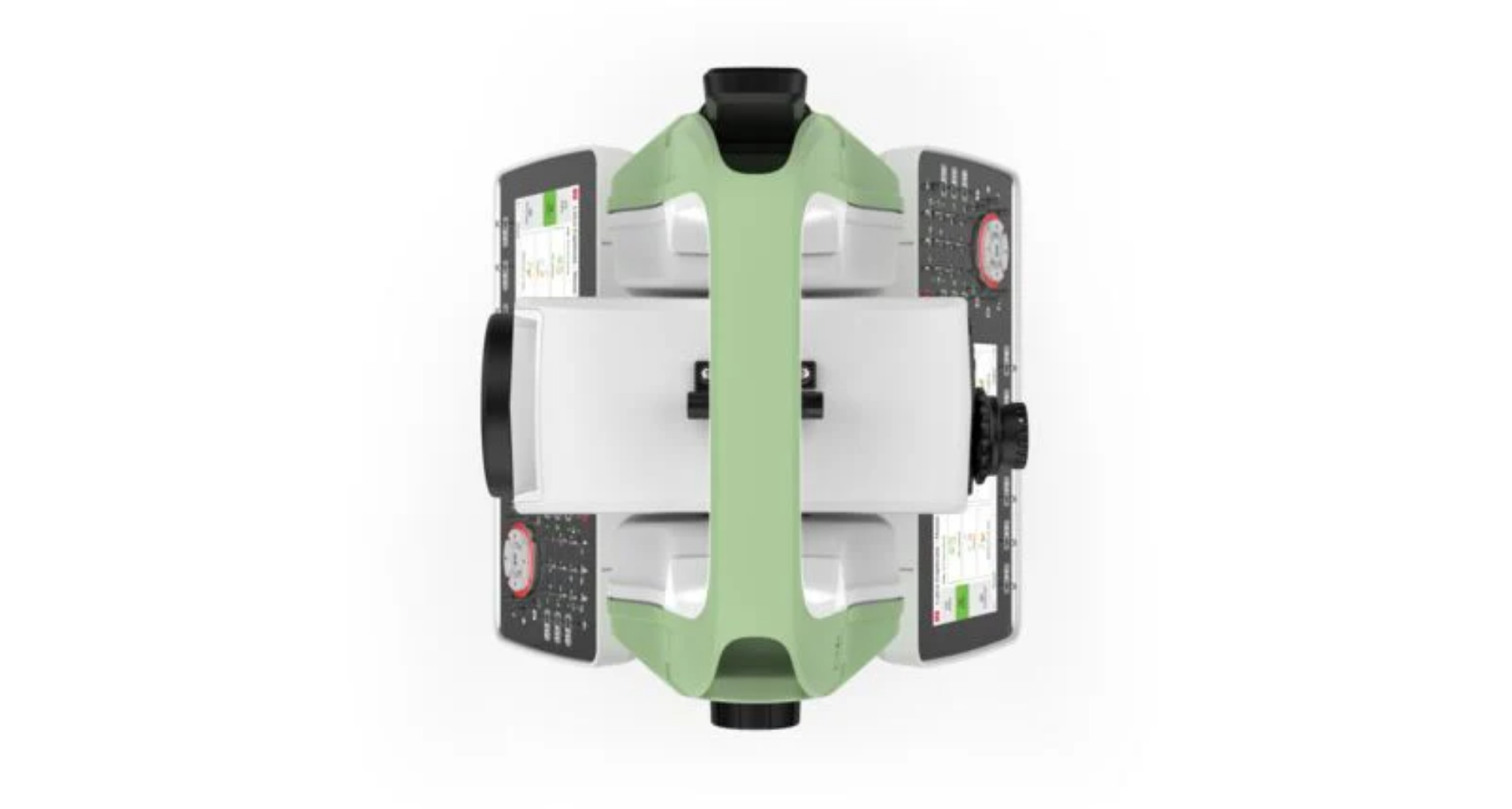

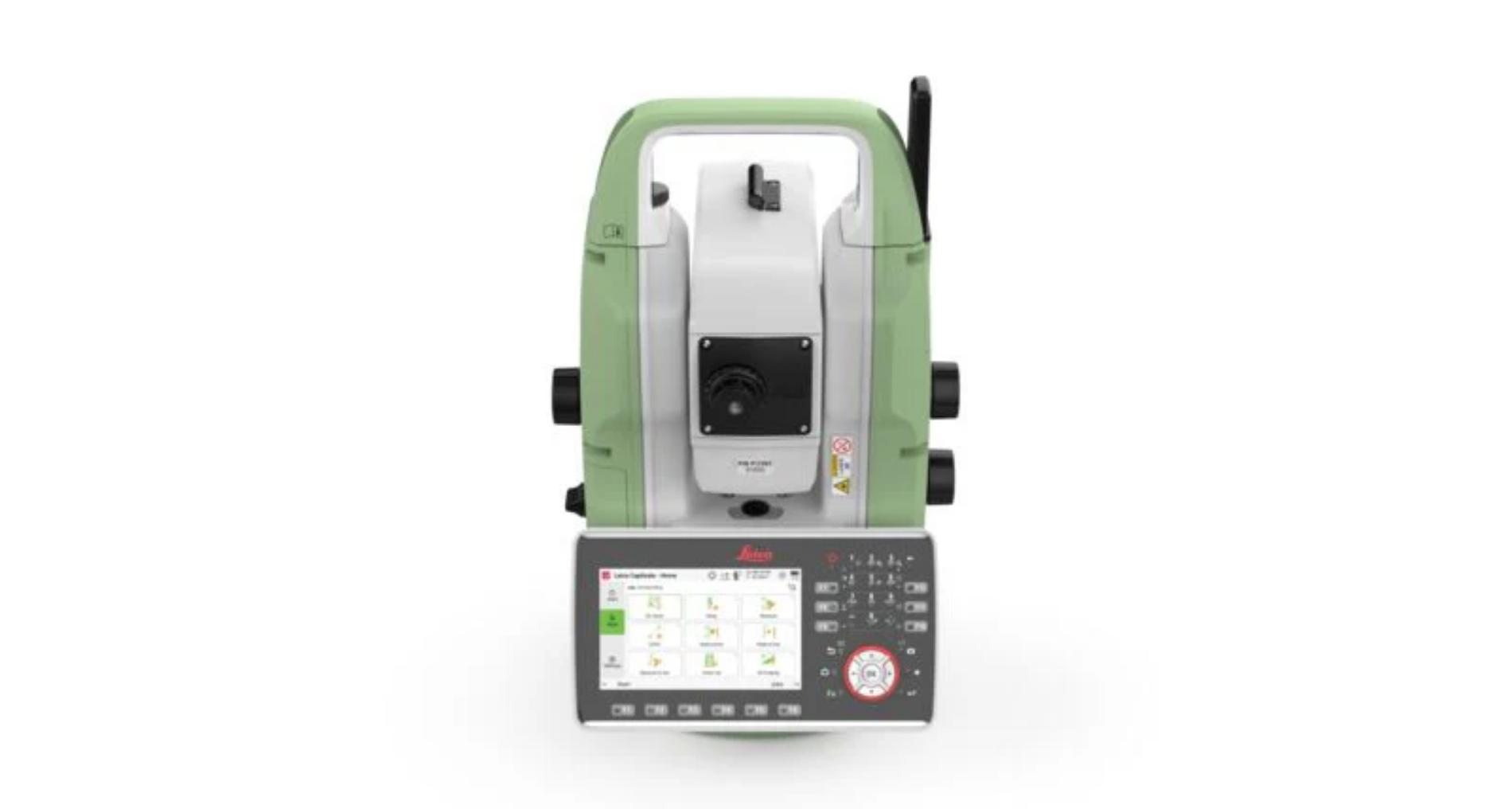

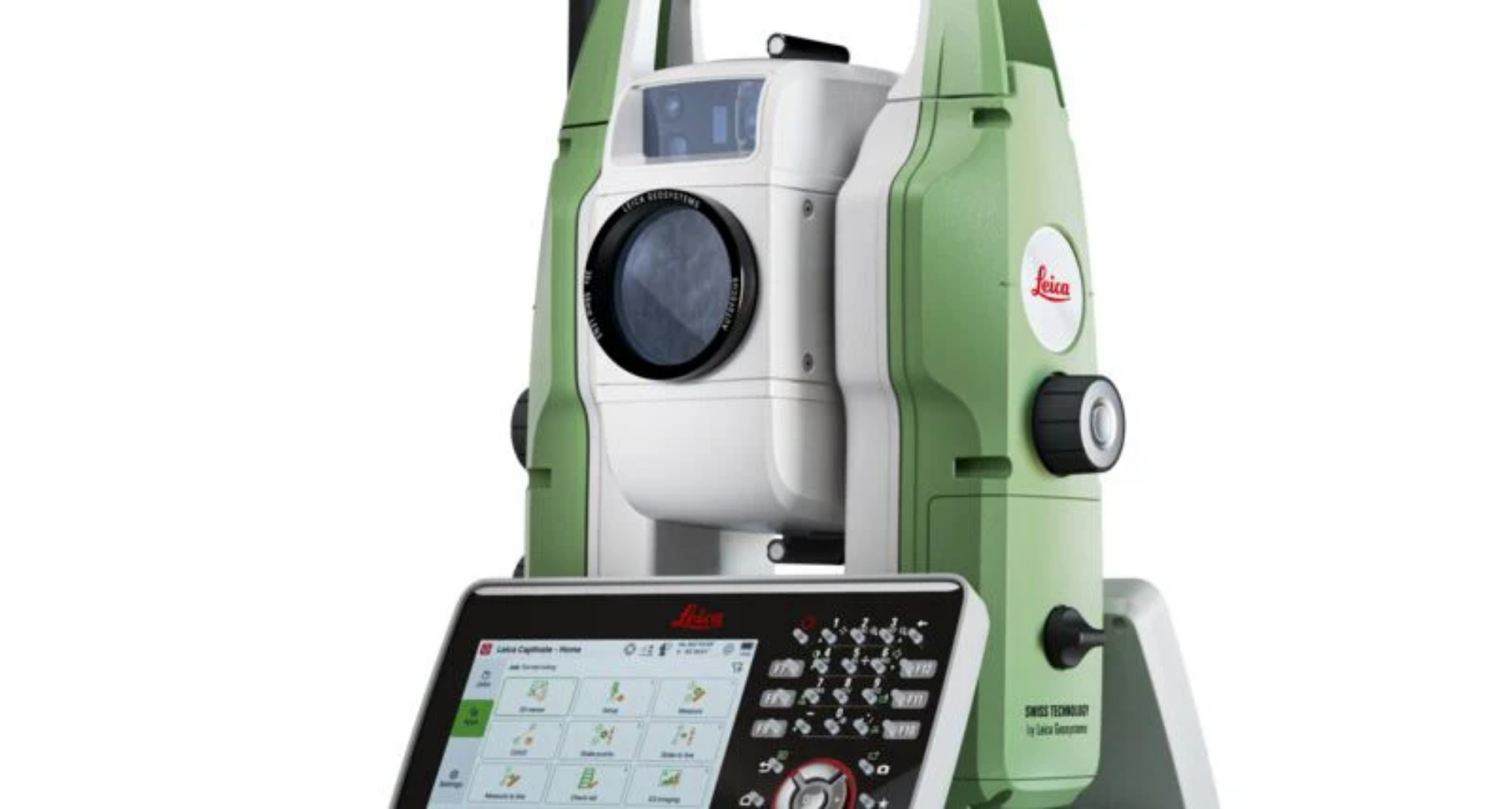

Leica TS20 Robotic Total Station

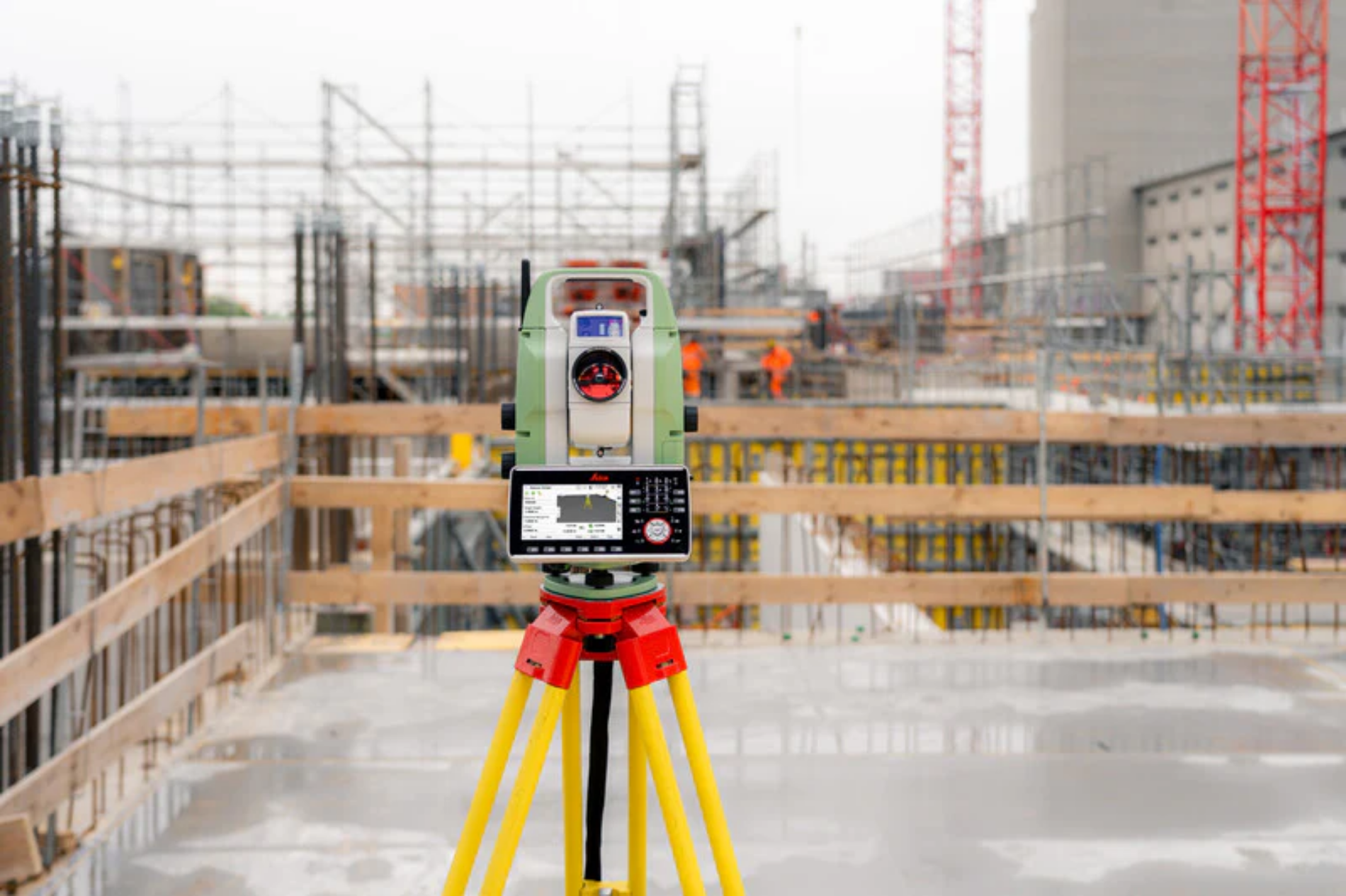

The Leica TS20 represents the next generation of robotic total stations engineered from the ground up to supercharge productivity for surveyors. Whether you’re working in cadastral, construction, or monitoring projects, the TS20 delivers powerful automation, rugged reliability, and seamless connectivity in a compact, high-performance package.

Key Features

• AI‑Powered Automation
  Powered by a dedicated Neural Processing Unit (NPU), the TS20 brings true edge AI to the job site. It can instantly recognize prism types (AI‑Detect), automatically search and lock targets (AI-powered PowerSearch & ATR), and even follow the Leica AP20 AutoPole — even when the line of sight is broken.

• High Durability (IP66)
  Built to withstand the harshest conditions, the TS20 is rated IP66. It's fully protected against dust and powerful water jets, so your instrument stays reliable even in challenging environments.

• Fast, Maintenance‑Free Motors
  With direct-drive, high‑speed motors and a refined Electronic Distance Measurement (EDM) system, the TS20 minimizes downtime and maximizes efficiency.

• Seamless Connectivity
  The TS20 supports integrated mobile data (via eSIM), long-range Bluetooth, Wi-Fi, and Ethernet, enabling real-time data transfer. Plus, it’s fully compatible with Leica’s GeoCloud services for secure, cloud-driven workflows.

• Smart Security: GeoCloud Protect
  Protect your investment with built-in theft deterrence. GeoCloud Protect provides remote locating, movement alerts, and locking. If the instrument is stolen, you can disable it remotely — making it unusable until recovered.

• Intuitive Operation
  The TS20 features a 5″ WVGA multi-touch screen and a 37-key illuminated keyboard. With its speed-optimized processor, Leica Captivate runs fluidly, ensuring that setup and surveying are both fast and intuitive.

• Adaptable for Monitoring
  Designed for semi-automated monitoring workflows, the TS20 integrates with Leica’s TPS Monitoring App, GeoMoS Now!, and GeoCloud Drive, delivering high data reliability over long campaigns.

Technical Specifications

• Operating System: Linux with NXP i.MX 8M Plus + NPU

• Display: 5″ color touch, 37 illuminated keys

• Telescope: 30× magnification, 1.45 m to ∞ focus range

• Power: Exchangeable Li-ion battery — up to ~5 h runtime

• Storage: 32 GB internal + 16 GB via USB‑C

• Environmental: –20 °C to +50 °C, 100% humidity non‑condensing

• Weight: 4.97 kg (instrument only)
