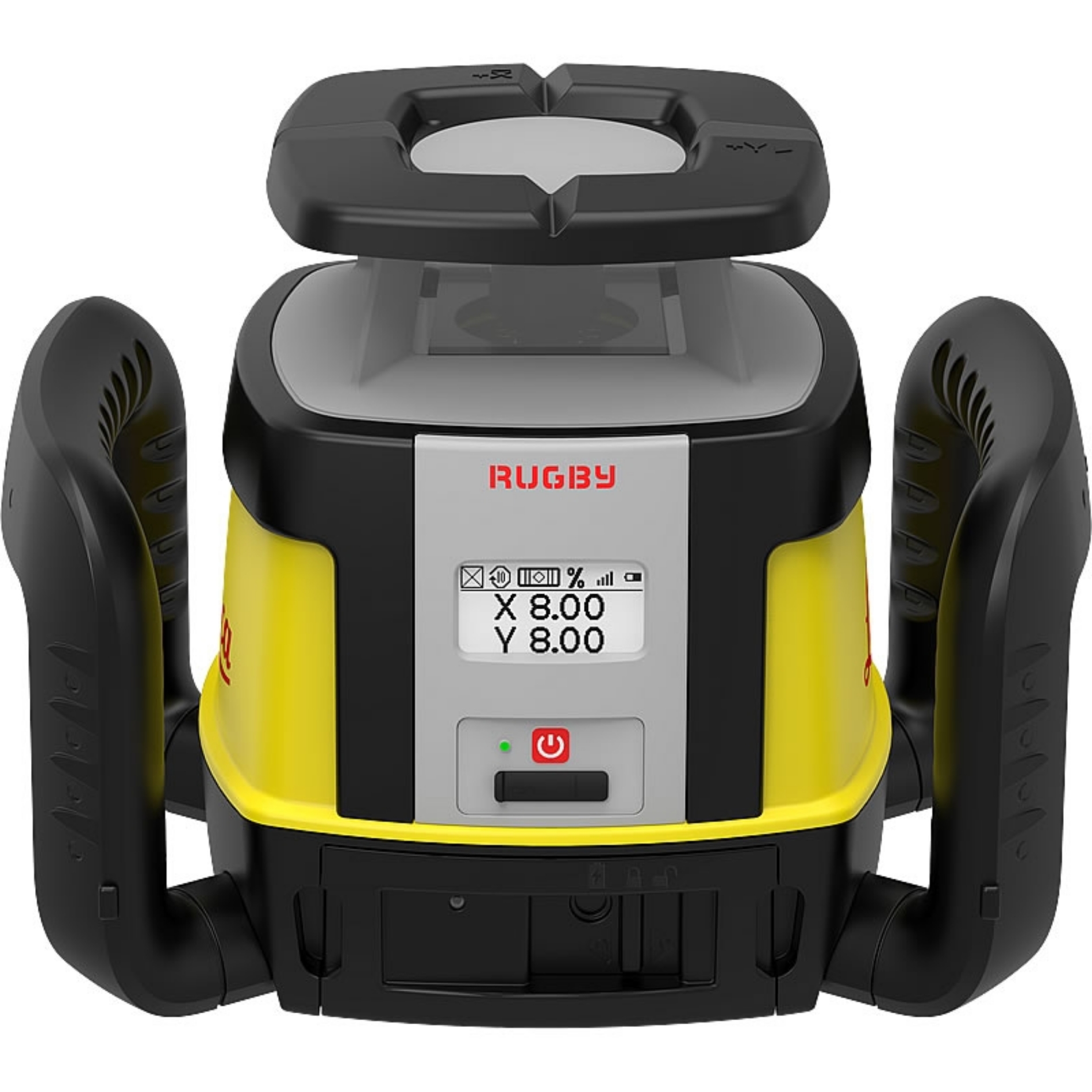

Picture of Leica Rugby CLH Laser Level

    Picture of Leica Rugby CLH Laser Level

    Picture of Leica Rugby CLH Laser Level
    Leica Geosystems

    Leica Rugby CLH Laser Level

    SKU: 6012274
    0 review(s) | Add your review

    Leica Rugby CLH (horizontal) simplicity allows for effortless use of the capabilities of the laser system. It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The upgrade options allow for maximised performance in all levelling applications.

    Back

    MSRP £834.00 £917.40

    In stock
    Optional Accessories
    Upgrade Options
    Picture of Leica Rugby CLH Laser Level Leica Rugby CLH Laser Level £917.40

    Detailed Description

    The First Upgradable Laser Level
    The maximum flexibility and the ability to quickly adjust to the job’s needs is vital for your projects. With the Leica Rugby CLA (all-round) and CLH (horizontal) you can upgrade your lasers to match your application needs. You pay for the functionality you need to do your job without paying for the extra features that you don’t use. With additional professional services such as repair and calibration you can secure your laser’s exceptional performance for many years.

    Simplicity At Its Best
    Leica Rugby CLH simplicity allows for effortless use of the capabilities of the laser system. It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The upgrade options allow for maximised performance in all levelling applications.

    Base Unit: Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications.

    Upgrade Options:

    • CLX 200: with manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task
    • CLX 300: adding +-8% semi-automatic grade functionality in single axis with a dial-in option, the upgrade delivers a solid performance in single slope applications
    • CLX 400: adding +-8% semi-automatic grade functionality in second axis with a dial-in option, the upgrade delivers a solid performance in dual slope applications




    Features & Benefits

    Rugby LaserRugby CLHRugby CLA
    Warranty5Y / 2Y knockdown5Y / 2Y knockdown
    Grade capability* (X/Y Axes)±5%, 8%±15%
    Self-levelling accuracy**± 1.5mm at 30m± 1.5mm at 30m
    Self-levelling range±6°±6°
    Operating range with Combo, Rod Eye 140/1601350m (diameter)1350m (diameter)
    Remote range600m (diameter)600m (diameter)
    Laser class12
    Environmental standardIP68 /MIL-STD-810GIP68 /MIL-STD-810G
    Operating temperature-20°C to +50°C-20°C to +50°C
    Storage temperature-40°C to +70°C-40°C to +70°C
    Rotation speed10,15,20 RPS0,2,5,10,15,20 RPS
    BatteriesLi-IonLi-Ion
    Battery operating time**50h50h
    Battery charging5h (full charge)
    1h fast charge ±8h operating
    5h (full charge)
    1h fast charge ±8h operating
    Dimensions (H × W × D)230mm, 296mm, 212mm230mm, 296mm, 212mm
    Weight with batteries3.8Kg3.8Kg
    *up to 45° with adapterup to 45° with adapter
    **Accuracy defined at 25°C battery life depending upon environmental conditions
    All specifications are dependent on activated functionality

    Technical Specification

    Application
    Exterior
    Laser Accuracy
    1.5
    Max. Range (metres)
    1350
    Vertical Application
    No
    Horizontal Application
    Yes
    Beam
    Visible
    Alignmaster
    No
    Grade
    Single

    Document Download

    Documentation File Format Size

    Leica Rugby CLH & CLA Laser Level Brochure PDF 1.9 MB
    Leica Rugby CLH & CLA Laser Level Flyer PDF 0.3 MB

    What's In The Box

    Rugby CLH Basic Laser Level
    Li-ion Battery Pack
    A100 Li-ion Battery Charger
    Carrying Case
    User Manual
    Calibration Certificate - 1 Year
