    Leica Geosystems

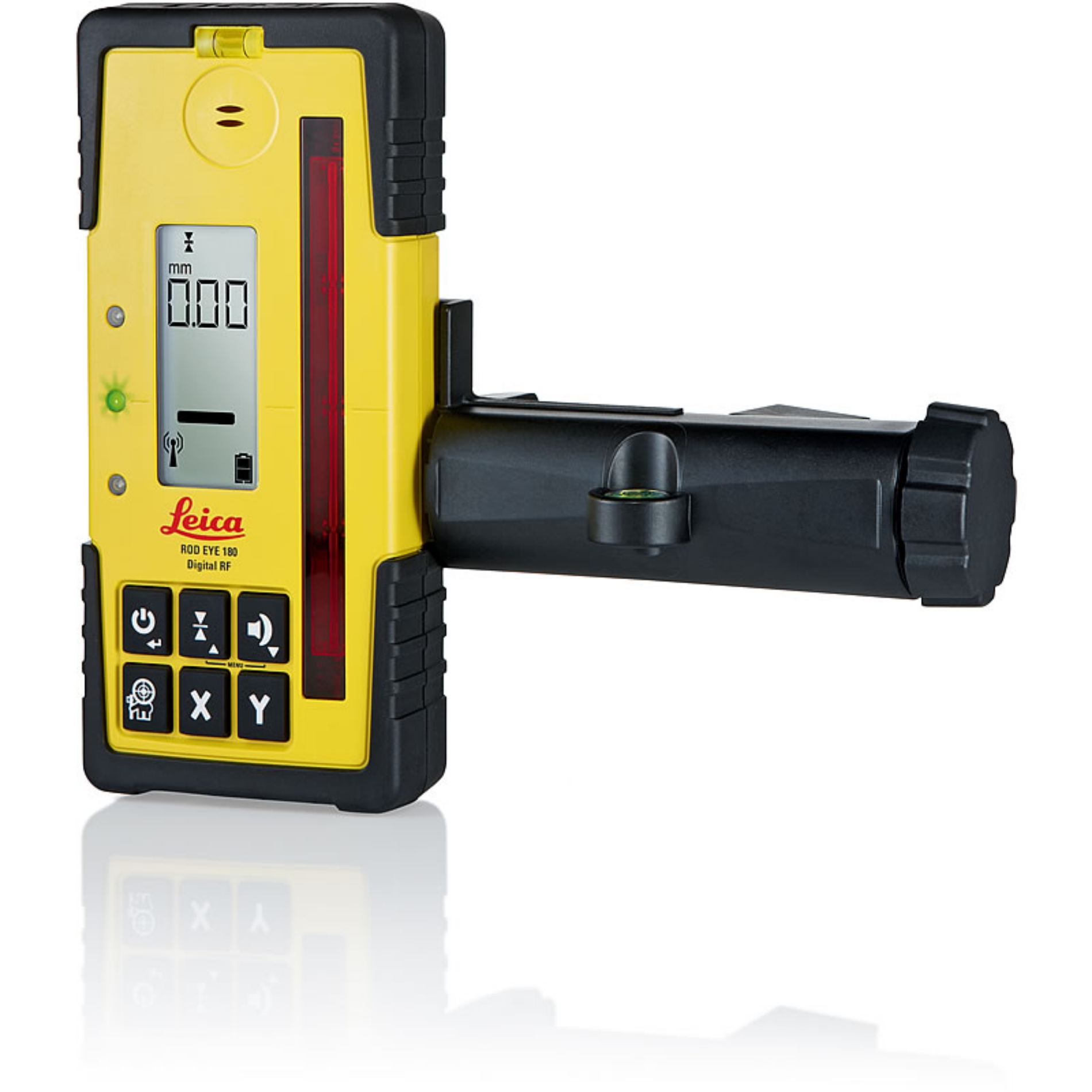

    Leica Rod Eye 180 Digital RF Laser Receiver

    SKU: 789926
    0 review(s) | Add your review

    Top of the range receiver with integrated radio remote functionality, digital readout, millimetre accuracy and strobe rejection.
    Intelligence inside with Laserman: Automatically align your laser plane at the touch of a button – horizontal, vertical and dual axis.
    Monitor and correct the laser plane in real-time using Smart Lock functionality
    Bracket included.

    Back

    £442.20

    In stock
    Picture of Leica Rod Eye 180 Digital RF Laser Receiver Leica Rod Eye 180 Digital RF Laser Receiver £442.20

    Detailed Description

    Top of the range receiver with integrated radio remote functionality, digital readout, millimetre accuracy and strobe rejection.

    Intelligence inside with Laserman:
    Automatically align your laser plane at the touch of a button – horizontal, vertical and dual axis.
    Monitor and correct the laser plane in real-time using Smart Lock functionality

    Bracket included.

    Features & Benefits


    Smart TechnologySmart Target - Automatic slope catching and monitoring with radio communication for slope, façade, batter board applications and more.
    Digital ReadoutThe large numbers are clear and easy to read, so you can stay on grade. The 21 step arrow displays provide a graduated reference as you lock on the laser beam.
    LCD IndicationTwo, large graphic displays on the front and back of the receiver.
    LED IndicationThree bright LED’s can be used as a ready reference for the receiver position.
    Capture FunctionThe capture button allows the user to store and display a measurement.
    Menu FunctionAdditional options are available to set your functional preferences.
    Level VialEnsures good alignment and improves your reading accuracy.
    Exceptional ReceptionThe extra long reception window includes the unique technology that provides the accurate digital input.
    Audio IndicationFour audio settings. Up to 110 decibels for noisy jobs.
    Units of MeasureDigital information is displayed above and below grade in mm, cm, inches, fractions of inches and feet.
    Versatile Rod BracketAn optional rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb.
    Protective OvermoldProtects the receiver from drops in tough jobsite conditions.

    Special Features

    Anti-strobe ProtectonDetects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.
    Beam FindingPassing the receiver through the laser beam will cause the receiver to beep twice quickly.
    Out of Beam DisplayIf the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.
    Laser Low BatteryA small laser icon on the receiver display alerts the user when the batteries are getting low.

    Features & Benefits

    SpecificationsRod Eye BasicRod Eye 140Rod Eye 160Rod Eye 180
    Working diameter (laser dependent):300 m1350 m1350 m1350 m
    Detection height:36 mm120 mm120 mm120 mm
    Detectable spectrum: 600 nm to 800 nm600 nm to 800 nm600 nm to 800 nm
    Numeric readout height: -90 mm90 mm
    Detectable accuracies
    Very fine:--± 0.5 mm± 0.5 mm
    Fine:± 1.0 mm± 1.0 mm± 1.0 mm± 1.0 mm
    Medium:-± 2.0 mm± 2.0 mm± 2.0 mm
    Coarse:± 3.0 mm± 3.0 mm± 3.0 mm± 3.0 mm
    Very coarse:--± 5.0 mm± 5.0 mm

    Audio volumes:High, Low, Off105 dBA / 65dBA / Off105 dBA / 95 dBA / 65dBA / Off105 dBA / 95 dBA / 65dBA / Off
    Automatic shut off:10 minutes10 minutes10 minutes10 minutes
    Digital readout:--Units: mm, cm, in, in (fractions), ftUnits: mm, cm, in, in (fractions), ft
    Arrow display:5 channels11 channels15 channels15 channels
    Anti-strobe protection:

    -

    YesYesYes
    Memory, last beam strike:-YesYesYes
    Beam finding (double beep):-YesYesYes
    Laser low battery indicator:-YesYesYes
    Warranty:One yearThree yearsThree yearsThree years
    Environmental:IP66IP67IP67IP67
    Batteries:50 hours (1 x 9V type)50+ hours (2 x 1.5 V "AA" )50+ hours (2 x 1.5 V "AA" )50+ hours (2 x 1.5 V "AA" )
    Dimensions:150 x 80 x 35 mm173 x 76 x 29 mm173 x 76 x 29 mm173 x 76 x 29 mm
    Operating temperature:-20°C to +50°C-20°C to +50°C-20°C to +50°C-20°C to +50°C
    Storage temperature (except batteries):-40°C to +70°C-40°C to +70°C-40°C to +70°C

    -40°C to +70°C





    Technical Specification

    Call our Support Team on 0330 1759558 if you require more information on this product.

    Document Download

    Documentation File Format Size

    Leica Rod Eye 180 Receiver User Manual PDF 1.3 MB
    Leica Rod Eye Receivers Datasheet PDF 0 MB
