    Leica Geosystems

    Reconditioned Leica Piper 100 Pipe Laser

    SKU: RECON-PIPER100

    The Piper 100 is a powerful and compact laser. Built within a solid aluminium housing it’s extremely tough, and it’s the only pipe laser that fits inside a 100mm pipe.

    Please note there is a 5 - 7 working day turnaround on this equipment.

    Back

    Was: £990.00 Ex. VAT £975.00 Ex. VAT Inc. VAT

    In stock
    Picture of Reconditioned Leica Piper 100 Pipe Laser Reconditioned Leica Piper 100 Pipe Laser £975.00 Ex. VAT

    Detailed Description

    The Piper 100 is a powerful and compact laser. Built within a solid aluminium housing it’s extremely tough, and it’s the only pipe laser that fits inside a 100mm pipe.

    It has a large clear display showing you the grade, line position, battery status and the level indication. It also automatically self-levels over a full grade range so you don’t have to tip the laser for steep slopes.

    This instrument has been fully reconditioned by our Leica accredited service department.

    12 Month Certificate of Conformity | Fully Calibrated | 3 Month Warranty

    Features & Benefits

    Leica Piper
     Leica Piper 100Leica Piper 200
     3R2M3R GREEN2M GREEN3R3R GREEN
    Laser beam color635nm520nm635nm520nm
    Laser class3R2M3R2M3R3R
    Max. average radiant power4.75mW1.2mW4.8mW1.2mW4.75mW4.8mW
    Working range<200m/650 ft
    Grade range-10% to +25%
    Self-levelling range-15% to +30%
    Line movement6m at 30m / 20ft at 100ft
    Battery*Li-Ion, up to 40h
    Charging time*4h
    Operating temperature-20°C to +50°C / -4°F to +122°F
    Dimensions (diameter x length)96mm x 267mm / 3.9“ x 10.5“
    Weight2.0Kg / 4.4lbs
    HousingCast aluminium
    Protection classIPx8
    Wireless remote distanceFront 150m / 500ft
    Wireless remote distanceBack 10m / 35ft
    Self levelling accuracy**+/-1.5mm at 30m / +/- 1/16“ at 100ft
    Auto targetingNoYes

    Technical Specification

    Document Download

    Documentation File Format Size

    Leica Piper 100 & 200 Pipe Laser User Guide PDF 1.2 MB
    Download

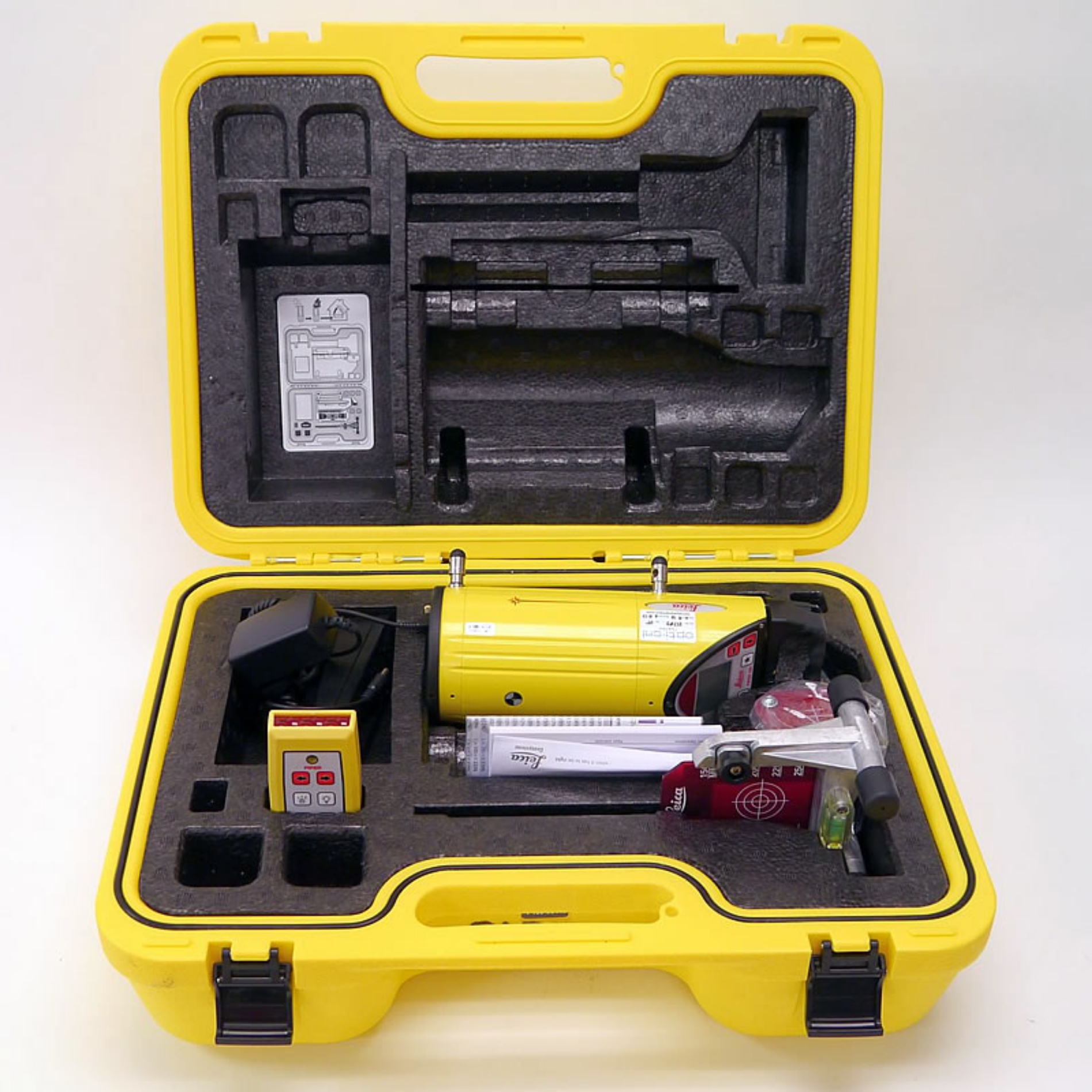

    What's In The Box

    Piper 100 Pipe Laser
    Carrying Case
    GKL311 Charger
    IR Remote Control
    Target Assembly with Small Insert 300mm
    Target Assembly 4"/100 mm
    1 Year Calibration Certificate
    3 Month Warranty
