Leica Geosystems

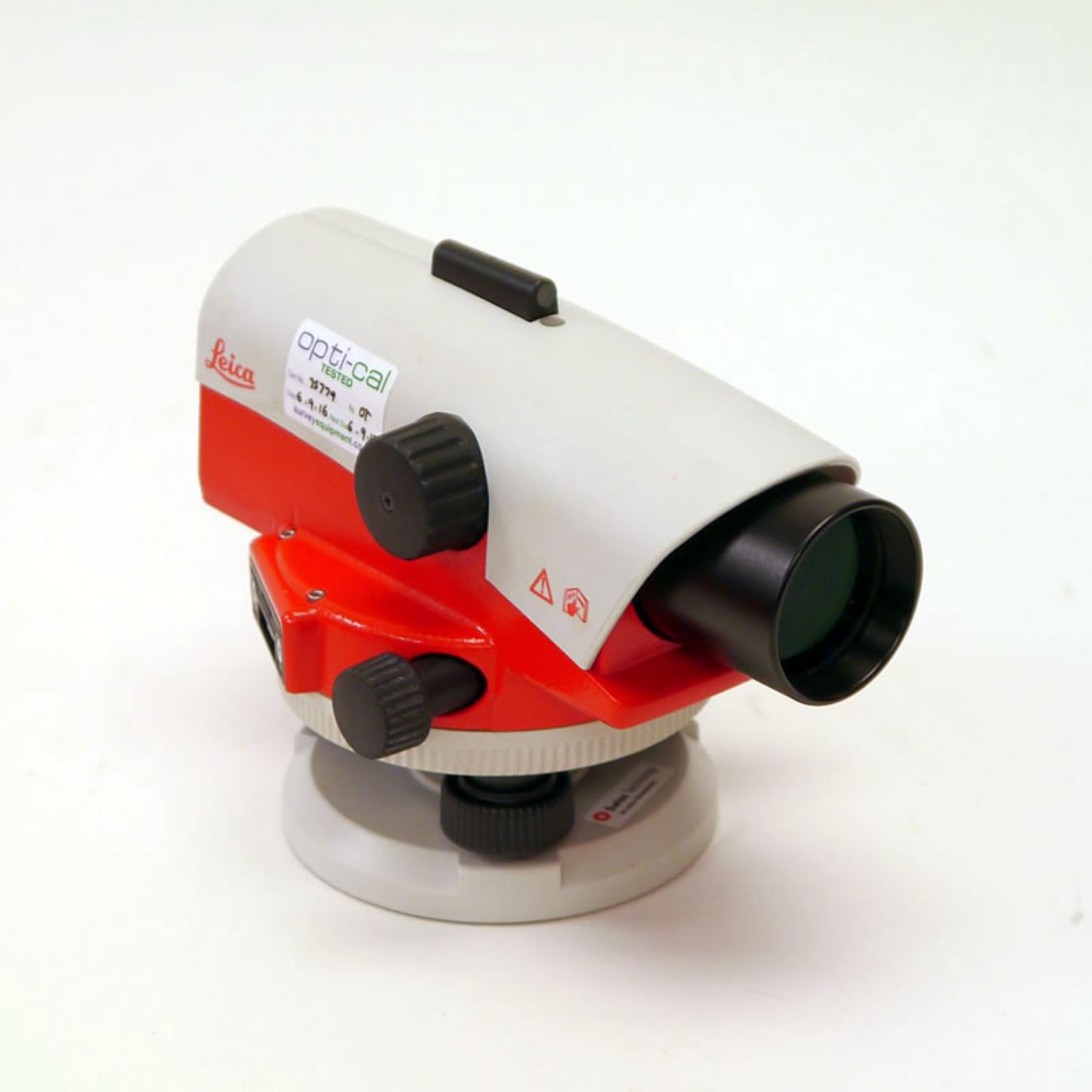

Leica NA724 Automatic Level - Used

SKU: RECON-NA724

The Leica NA724 is a tough rugged level which still retains the accuracy you need from a top quality surveying instrument.

Back

£234.00

In stock
Accessory Options
Picture of Leica NA724 Automatic Level - Used Leica NA724 Automatic Level - Used £234.00

Detailed Description

Nothing stops a Leica NA724 level. A short drop onto the ground, a fall into water, vibration from heavy machinery - with a Leica NA724 level you just carry on working. No time-consuming checking or readjustment required. And, the 'best in class' optics enable you to always work as precisely as possible, even in twilight. What does this add up to? Reduced work downtime, thus translate into higher productivity, resulting in reliability and accuracy at an extremely reasonable price.

Leica NA724 - 24x telescopic magnification for improved accuracy. Reliability and Robustness for the demanding construction user.

This instrument has been fully reconditioned by our Leica accredited service department.

Features & Benefits

Technical DataNA720NA724NA728NA730NA730 +
Accuracy
Per km double run2.5 mm2 mm1.5 mm1.2 mm0.7 mm
Single measurement – Target distance 30m1.5 mm1.2 mm1 mm0.8 mm0.4 mm
Compensator
Setting accuracy< 0.5"< 0.5"< 0.3"< 0.3"< 0.3"
Working range± 15'± 15'± 15'± 15'± 15'
Environmental
Impact standardISO 9022-33-5ISO 9022-33-5ISO 9022-33-5ISO 9022-33-5ISO 9022-33-5
Resistance to water and dust ingresIP57IP57IP57IP57IP57
Temperature Range
Operation-20° to +50°C-20° to +50°C-20° to +50°C-20° to +50°C-20° to +50°C
Storage-40° to +70°C-40° to +70°C-40° to +70°C-40° to +70°C-40° to +70°C
Dimensions & Weight
Dimensions19x12x12 cm19x12x12 cm21x12x12 cm21x12x12 cm21x12x12 cm
Weight1.6 kg1.6 kg1.7 kg1.7 kg1.7 kg

Technical Specification

Telescope Magnification (x)
24

Document Download

What's In The Box

NA724 Level
Carry Case
1 Year Calibration Certificate
3 Month Warranty
