Detailed Description

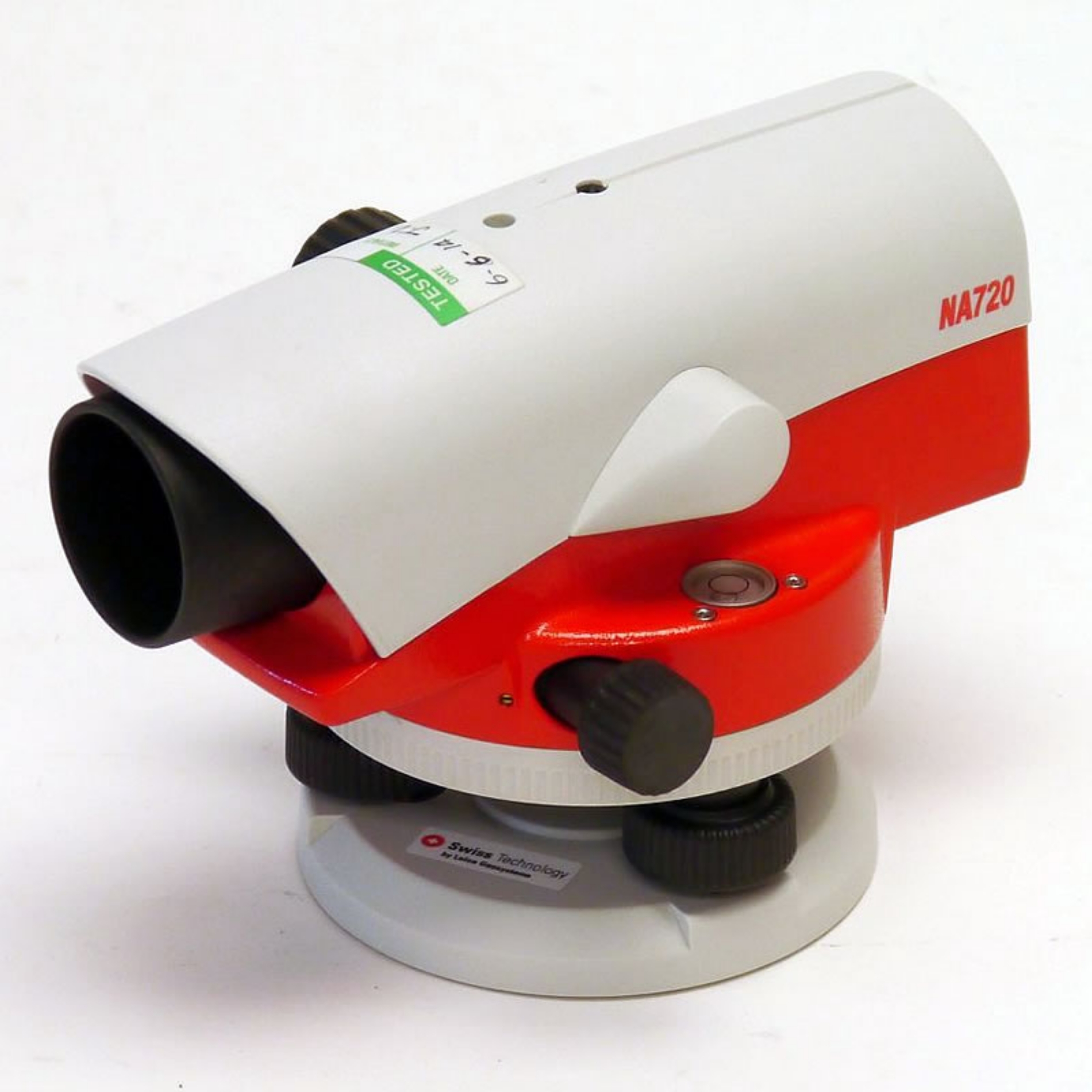

The Leica NA720 is a tough rugged level which still retains the accuracy you need from a top quality surveying instrument.
12 Month Certificate of Conformity | Fully Calibrated | 3 Month Warranty
Features & Benefits
Technical Data | ||||
NA720 | NA724 | NA728 | NA730 | |
Accuracy | ||||
Per km double run | 2.5 mm | 2 mm | 1.5 mm | 1.2 mm |
Single measurement – Target distance 30m | 1.5 mm | 1.2 mm | 1 mm | 0.8 mm |
Compensator | ||||
Setting accuracy | < 0.5" | < 0,5" | < 0.3" | < 0.3" |
Working range | ± 15' | ± 15' | ± 15' | ± 15' |
Environmental | ||||
Impact standard | ISO 9022-33-5 | ISO 9022-33-5 | ISO 9022-33-5 | ISO 9022-33-5 |
Resistance to water and dust ingress | IP57 | IP57 | IP57 | IP57 |
Temperature Range | ||||
- Operation | -20° to +50°C | -20° to +50°C | -20° to +50°C | -20° to +50°C |
- Storage | -40° to +70°C | -40° to +70°C | -40° to +70°C | -40° to +70°C |
Dimensions & Weight | ||||
Dimensions | 19x12x12 cm | 19x12x12 cm | 21x12x12 cm | 21x12x12 cm |
Weight | 1,6 kg | 1,6 kg/TD> | 1,7 kg | 1,7 kg |
Technical Specification
Telescope Magnification (x)
20
Document Download
What's In The Box
1x Leica NA720 Automatic Level
1x Carry Case
