Jasic TIG 200 Welding Inverter 230V | JT-200 £666.00 Detailed Description
The Jasic TIG 200 (JT-200) is is extremely user-friendly, offering MMA functionality and a reliable and consistant arc performance. It is equipped with a singular PCB for improved efficiency and maintenance, and has powerful IGBT components.
Features & Benefits
- Single PCB construction, easy for testing and maintenance.
- High quality tactile rubber finish to mouldings and handle.
- Compact size, lightweight and modern design.
- Auto compensation for voltage fluctuation.
- High frequency inverter, high-efficiency.
- Anti-Stick, Arc-Force, Hot Start 2T/4T.
- IGBT TIG/MMA inverter technology.
- Supplied in full colour packaging.
- Easy start, stable and reliable arc.
- Down slope and post flow.
Technical Specification
Length (mm)
365
Width (mm)
135
Height (mm)
277
Weight (kg)
6.12
Input Voltage
50/60 Hz
leff (A)
18.9
Input Power (kVA)
8.2
Current Range (A)
TIG 10 - 200 / MMA 10 - 180
Duty Cycle @ 40°C
200A @ 35%
No-Load Voltage (V)
65
Efficiency (%)
85
Power Factor
0.7
Protection/Insulation Class
IP21S/F
What's In The Box
- Operating instructions.
- Inverter power source.

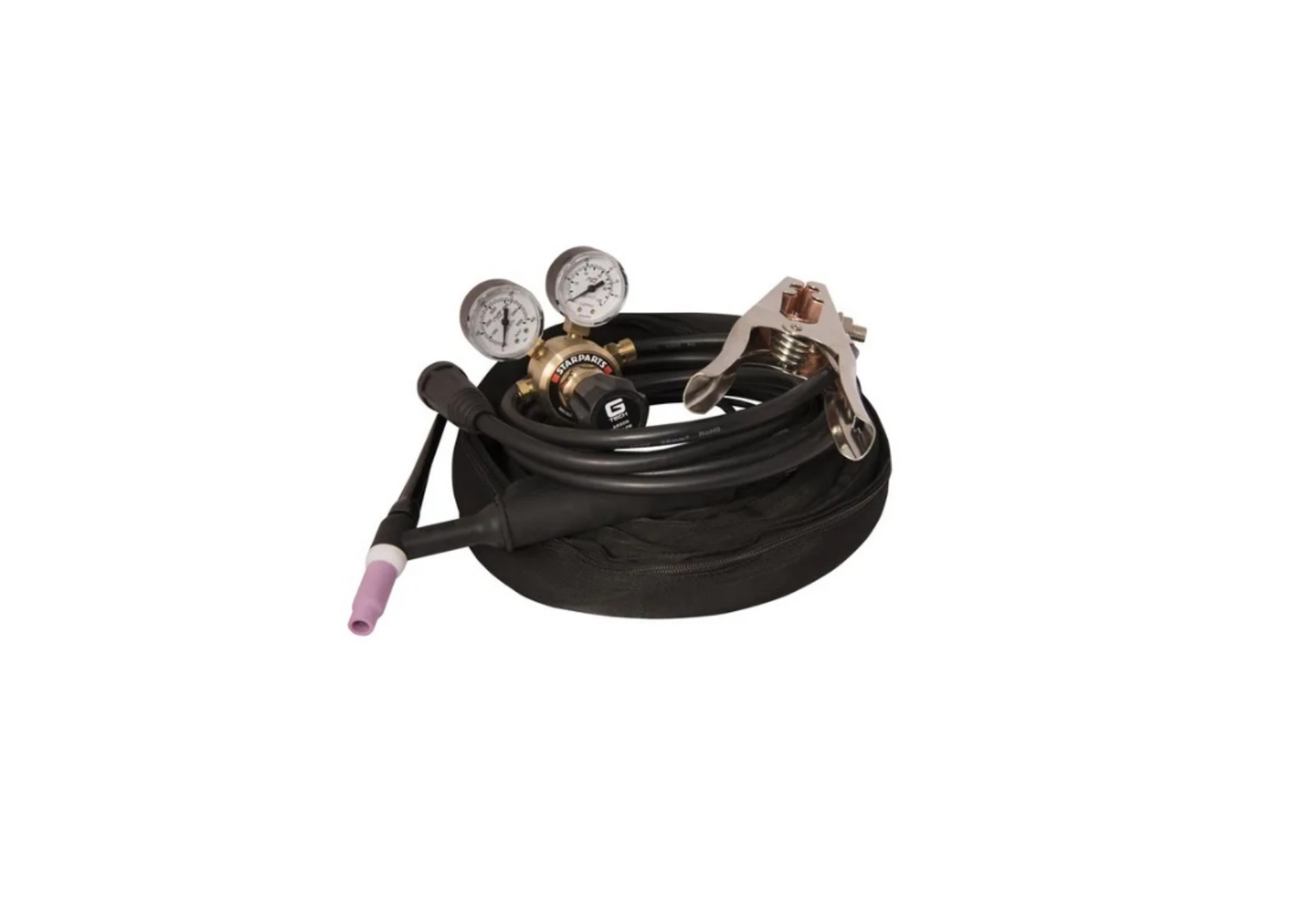

- TIG torch & adaptor.
- Earth return lead.
- Gas regulator
