Jasic TIG 180 DC SE Inverter Welder Case & Leads 230V Package | JPT-180* £583.80 Detailed Description

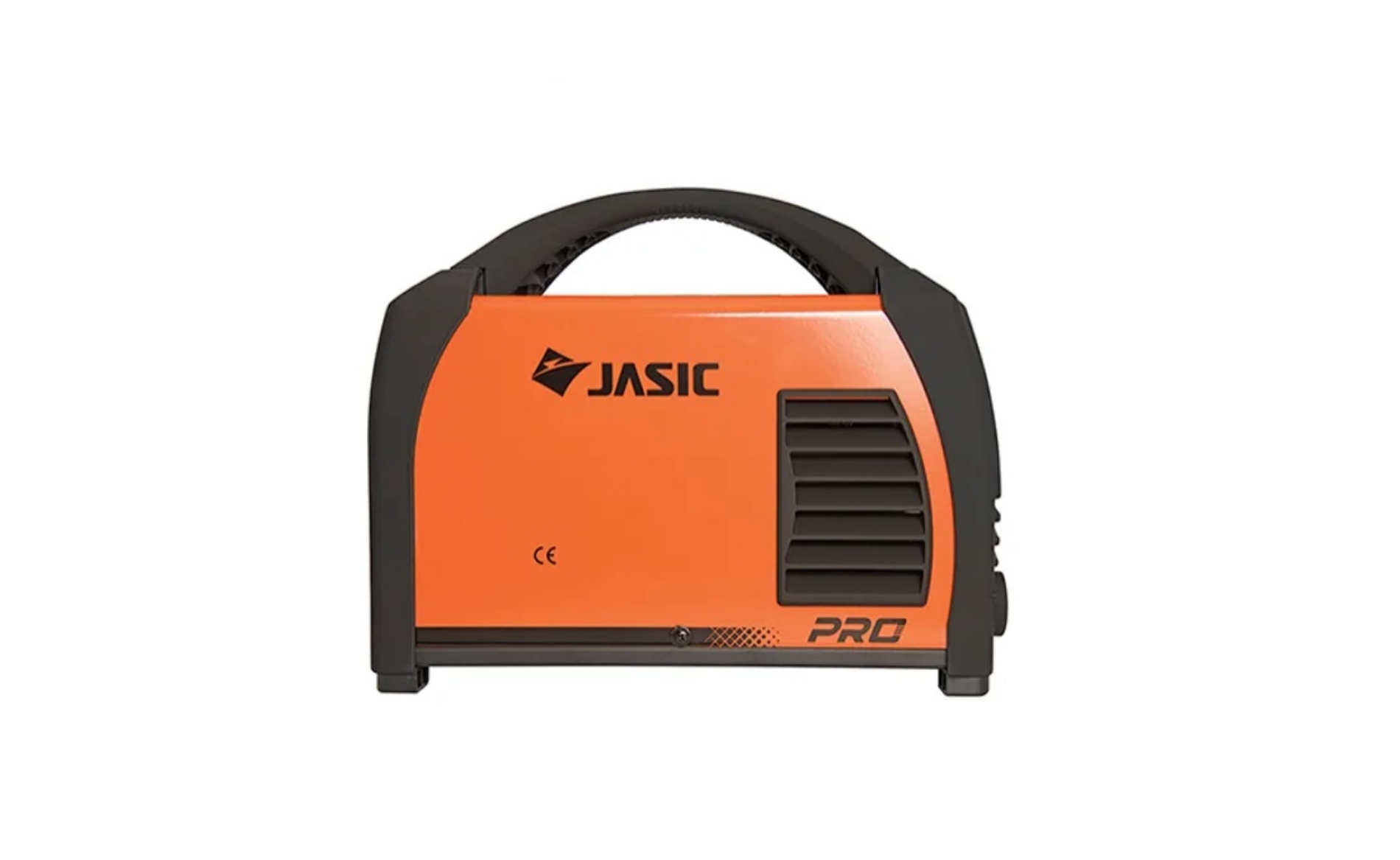

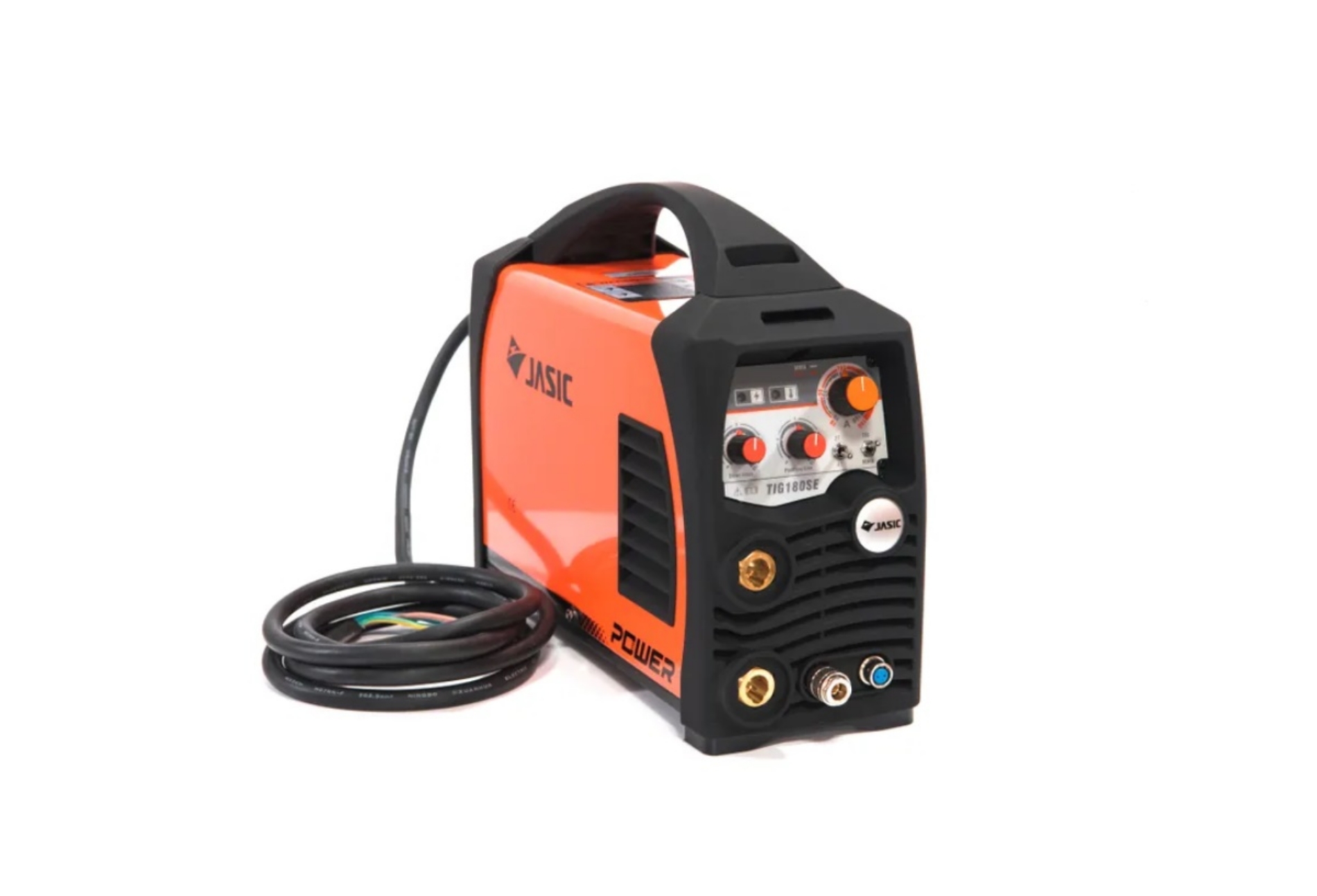

The Jasic Power TIG 180 (JPT-180*) is extremely user-friendly, equipped with a singular PCB for improved maintencance and efficiency. With powerful IGBT components, it offers reliable and consistent arc peformance.
Features & Benefits
- Single PCB construction, easy for testing and maintenance.
- Quality tactile rubber finish to moulding and handle.
- Compact size, lightweight and modern design.
- Auto compensation for voltage fluctuation.
- High frequency inverter, high-efficiency.
- Anti-Stick, Arc-Force, Hot Start 2T/4T.
- IGBT TIG/MMA inverter technology.
- Easy start, stable and reliable arc.
- Down slope and post flow.
- Generator friendly.
Technical Specification
Length (mm)
365
Width (mm)
135
Height (mm)
277
Weight (kg)
5.94
Input Voltage
50/60 Hz
leff (A)
16.5
Input Power (kVA)
7.1
Current Range (A)
10 - 180
Duty Cycle @ 40°C
180A @ 35%
No-Load Voltage (V)
65
Efficiency (%)
85
Power Factor
0.7
Protection/Insulation Class
IP21/F

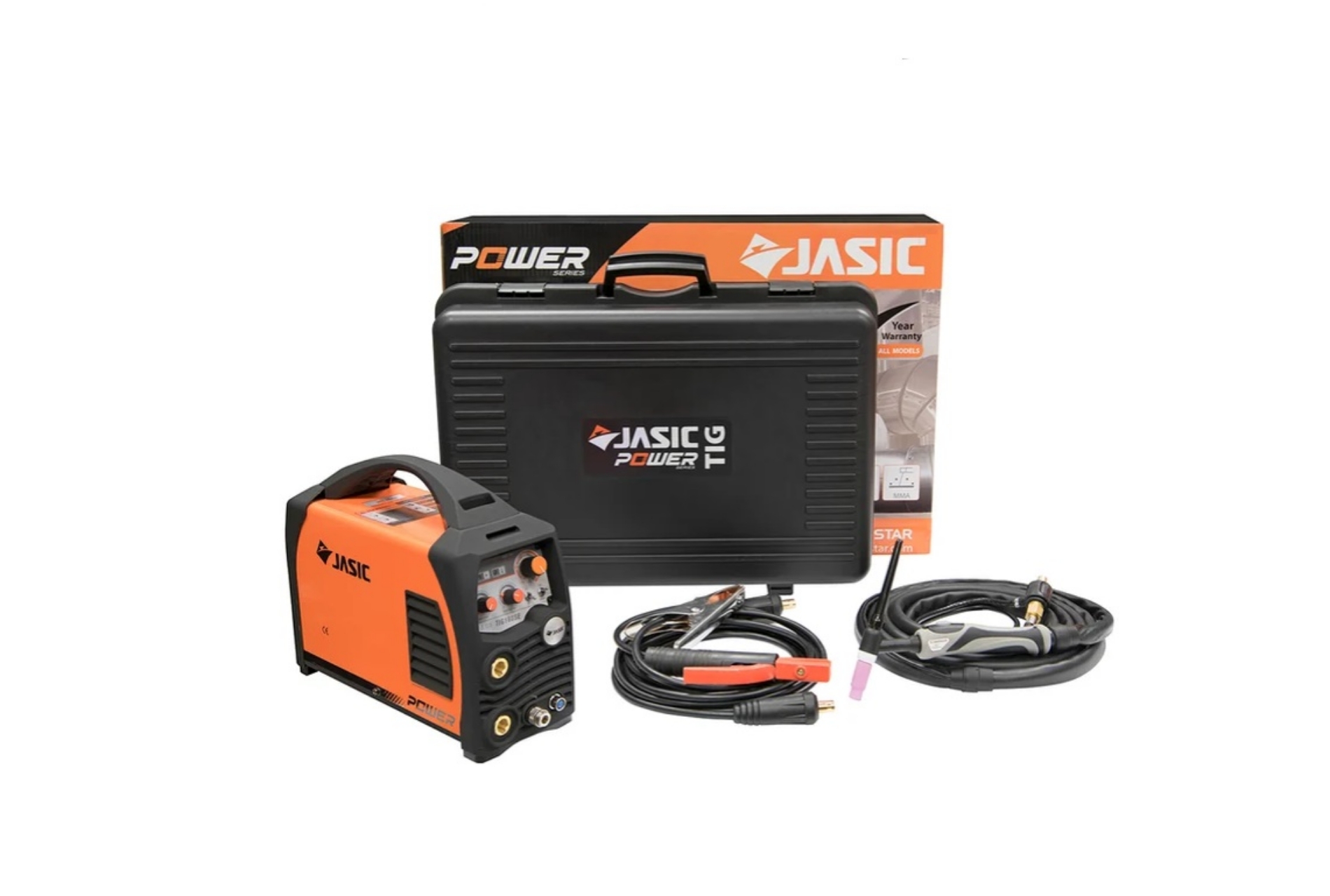

What's In The Box
- Operating instructions.
- Inverter power source.

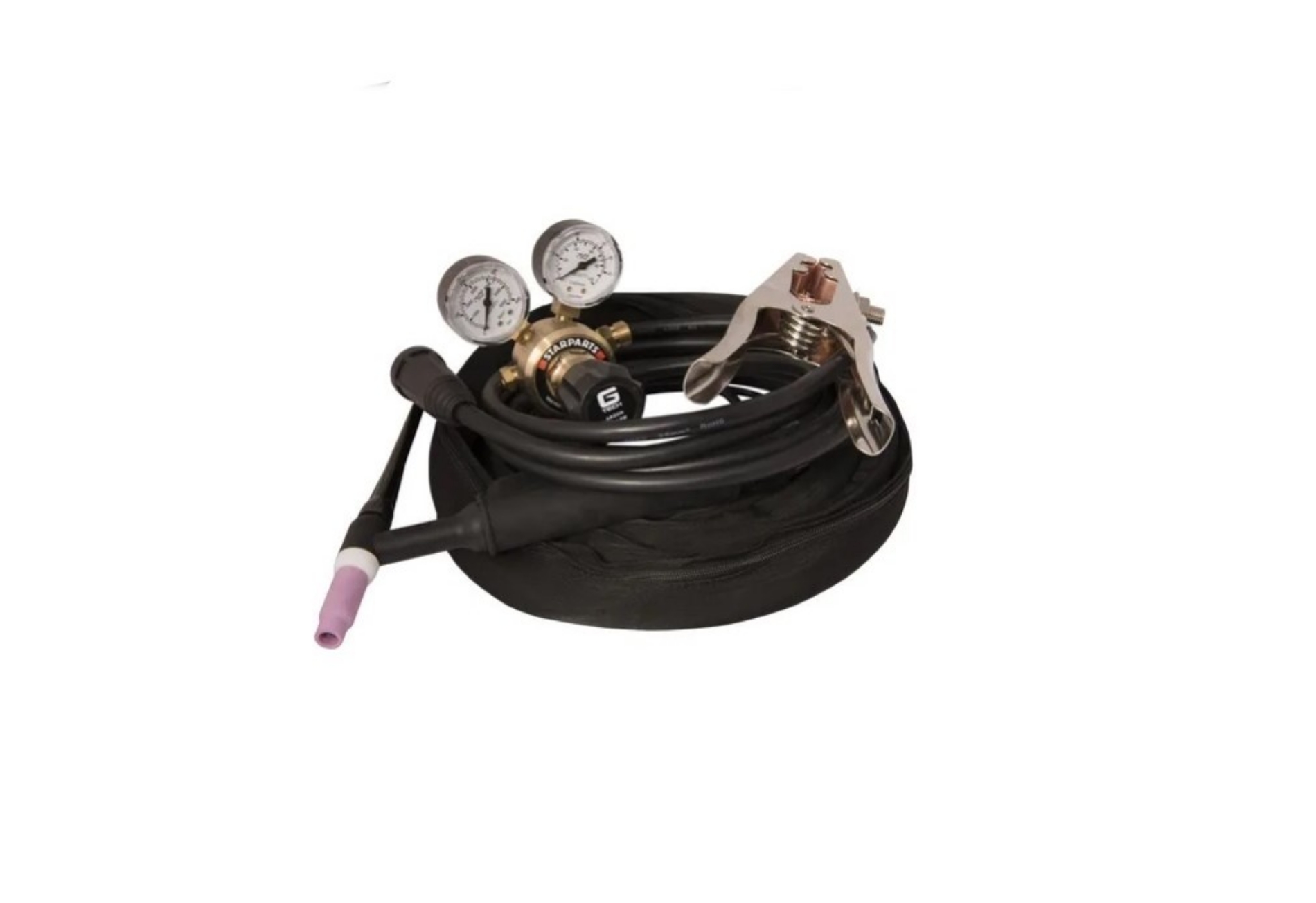

- TIG torch & adaptor.
- Earth return lead.
- Protective case.
- Gas regulator.
- MMA lead.
