    Jasic

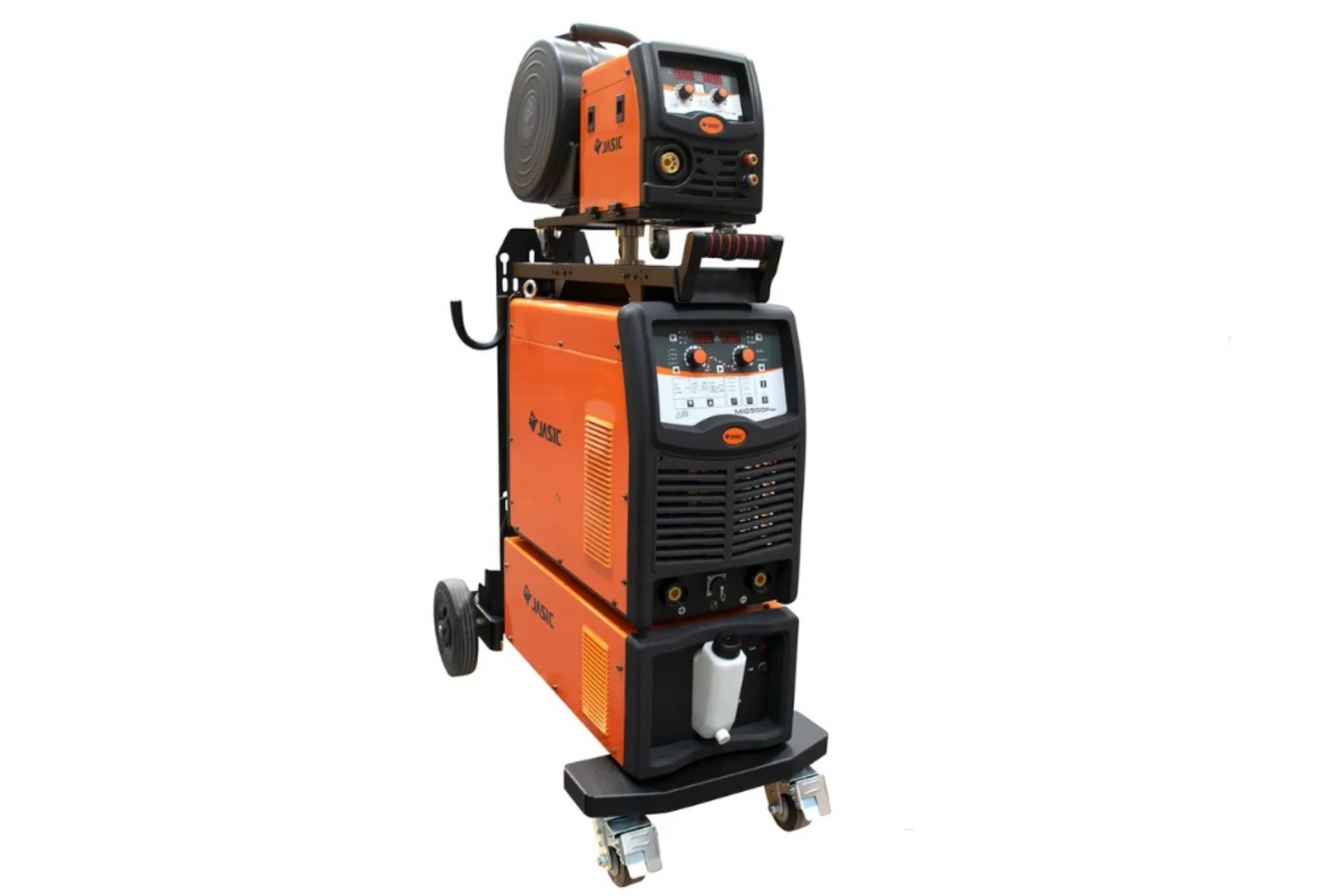

    Jasic MIG 450 Separate Inverter Welder & 10M Leads 400V | JM-452S-10M

    SKU: WE-03-007-0005

    High quality, three-phase inverter welder, equipped with powerful IGBT components and 10M leads.

    Back

    £3402.00

    In stock
    Image 1 Jasic MIG 450 Separate Inverter Welder & 10M Leads 400V | JM-452S-10M £3402.00

    Detailed Description

    The Jasic MIG 450 (JM-452S-10M) features a unique welding dynamic characteristic control, and delivers an impressive 400 amps at 100% duty cycle. A reliable performance is gauranteed as it features multi process capabilities and a stable arc, low spatter, excellent weld appearance and efficiency.



    Features & Benefits

    • Inverter MIG trolley takes full size gas bottle.
    • Suitable for 0.8/1.0/1.2/1.6mm MIG wires.
    • IGBT MIG/MAG MMA inverter welder.
    • Burn back control & wire inching.
    • Digital amp and Voltmeter.
    • Advanced control circuitry.
    • High duty welding cycle.
    • 4 Roll wire feed unit
    • 2T/4T trigger function.
    • Power & status LED's.
    • Gas check function.
    • Variable inductance.

    Technical Specification

    Length (mm)
    1020
    Width (mm)
    505
    Height (mm)
    1460
    Weight (kg)
    108
    Input Voltage
    50/60 Hz
    leff (A)
    27
    Input Power (kVA)
    18.7
    Voltage Adjustment Range (V)
    15 - 40
    Current Range (A)
    MIG 60 - 450 MMA 30 - 400
    Duty Cycle @ 40°C
    400A @ 100%
    No-Load Voltage (V)
    65
    Wire Speed (m/min)
    1 - 18
    Efficiency (%)
    85
    Power Factor
    0.91
    Protection/Insulation Class
    IP21S/F

    Document Download

    Documentation File Format Size

    Specification Sheet PDF 0.8 MB
    Operating Manual PDF 6.9 MB

    What's In The Box

    • Gas hose and Regulator.
    • 4 Roll Wire Feed Unit.
    • MIG inverter welder.
    • MIG welding torch.
    • Earth return lead.
    • Water-Cooler.
    • 10M Leads.

    Solid Wire

    • Steel up to 12.7mm (1/2") Stainless Steel up to 12.7mm (1/2")
    • Aluminium up to 12.7mm (1/2")

    Flux Cored Wire

    • Steel up to 12.7mm (1/2")
