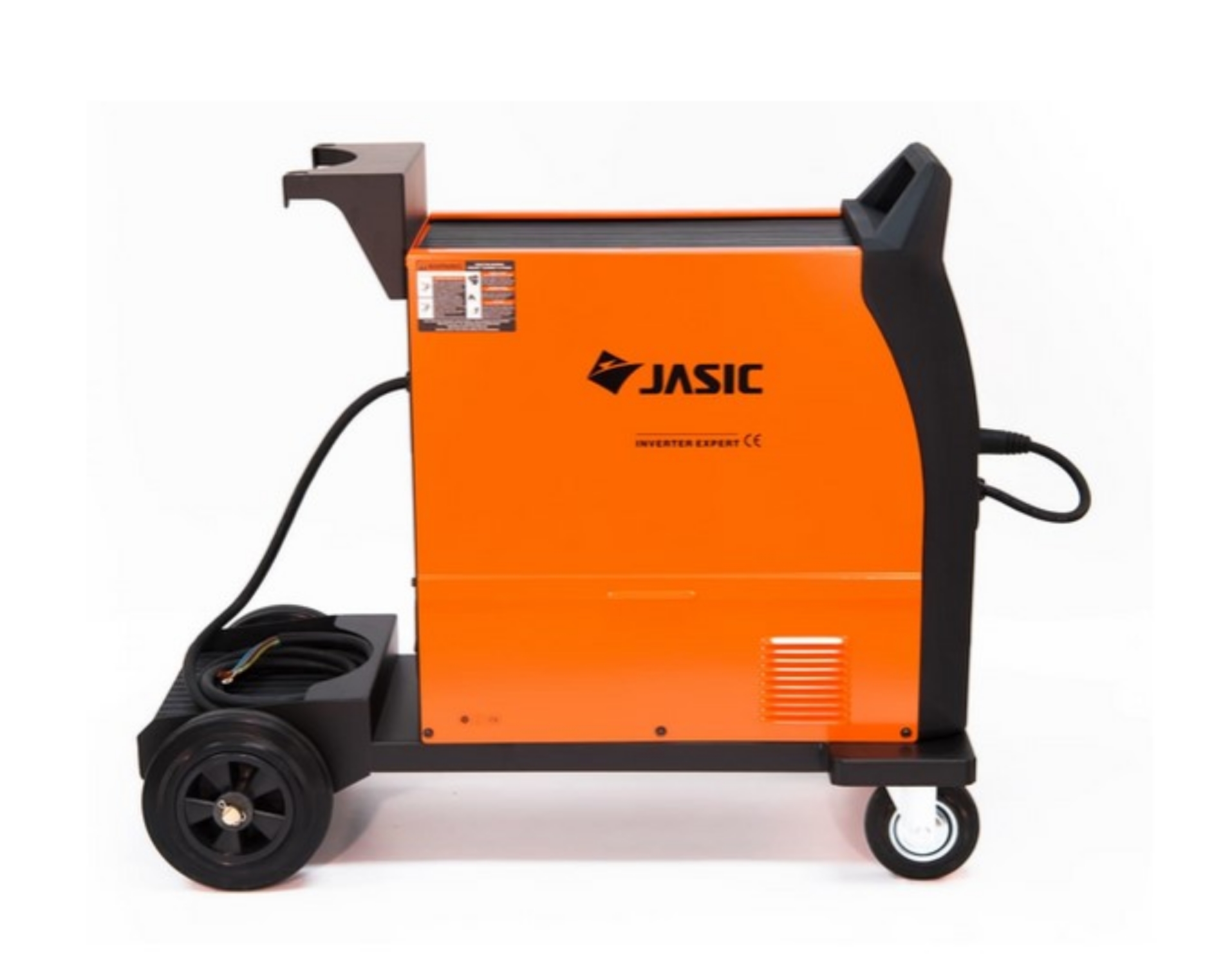

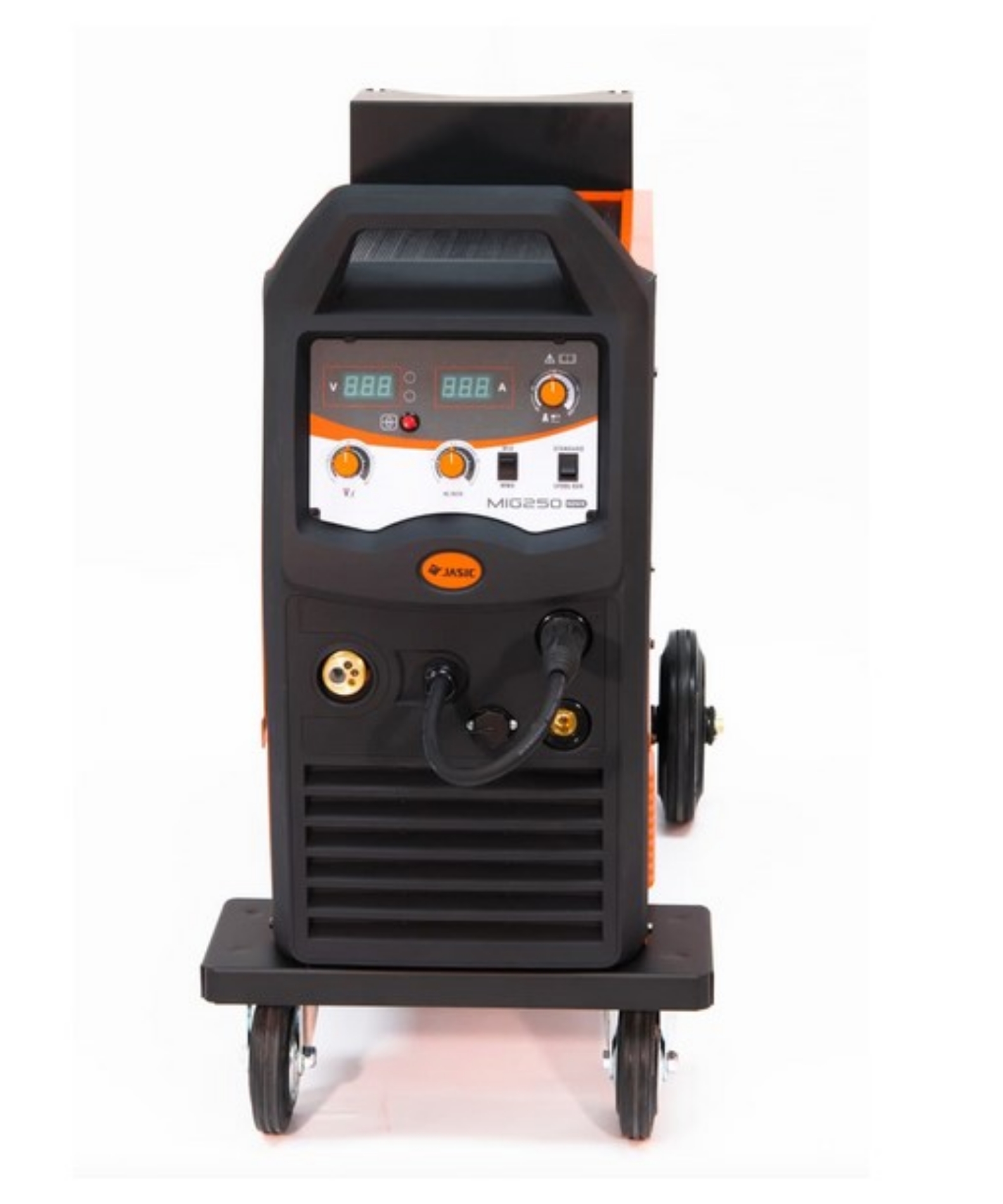

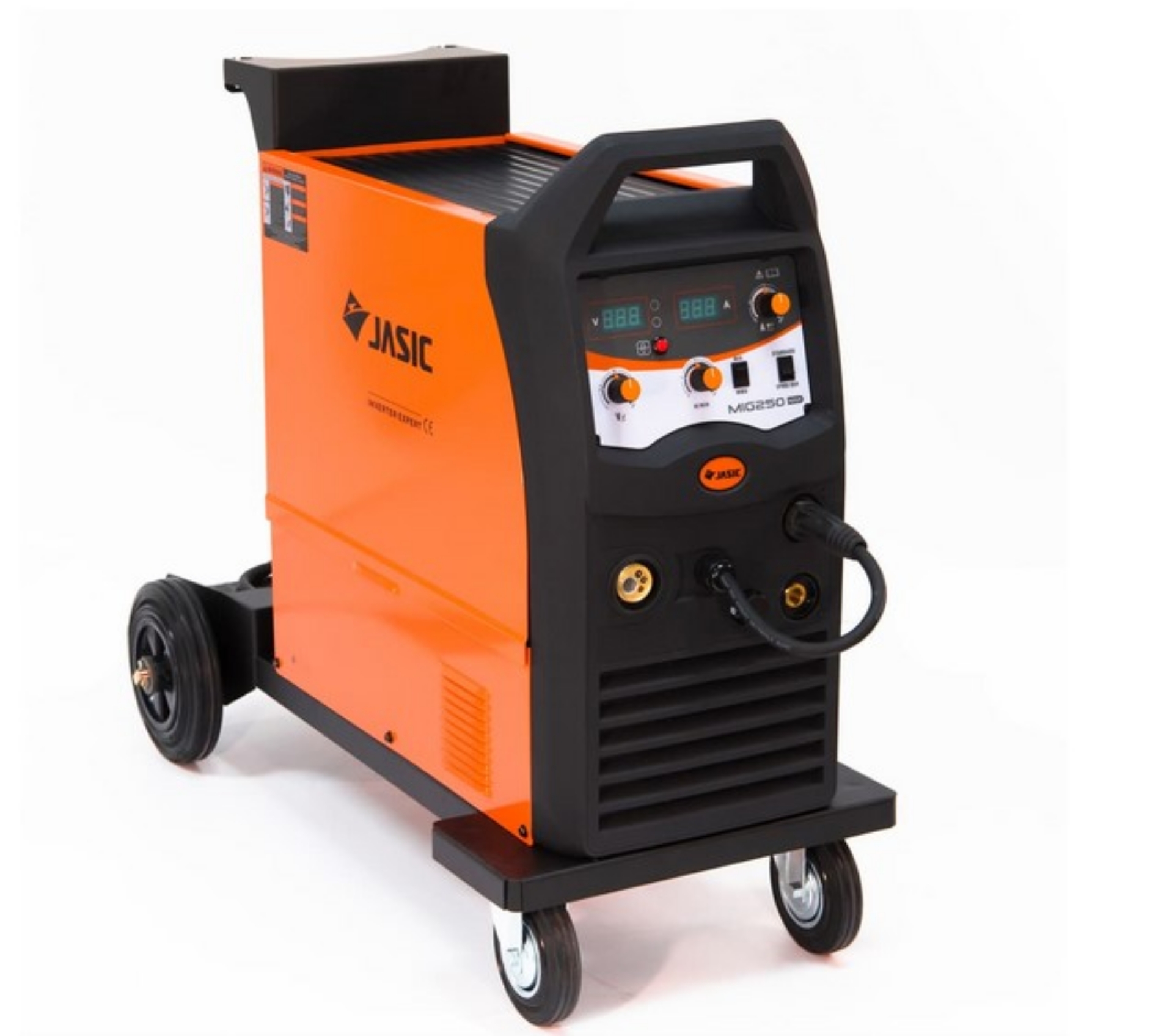

    Jasic MIG 250 Compact Inverter Mig Welder 230V | JM-252C

    SKU: WE-03-004-0005

    The all-new Jasic MIG 250 MIG Compact inverter welder is equipped with powerful IGBT components.

    Back

    £1339.80

    In stock
    JASIC MIG 250 Inverter Mig Welder 230V Jasic MIG 250 Compact Inverter Mig Welder 230V | JM-252C £1339.80

    Detailed Description

    A digital A/V display and the option to weld in MMA (Stick) mode.

    The welding inverter offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles.

    This high quality single-phase MIG inverter delivers an impressive 250 amps at 35% duty cycle, making the MIG 250 an excellent choice for medium duty fabrication work.

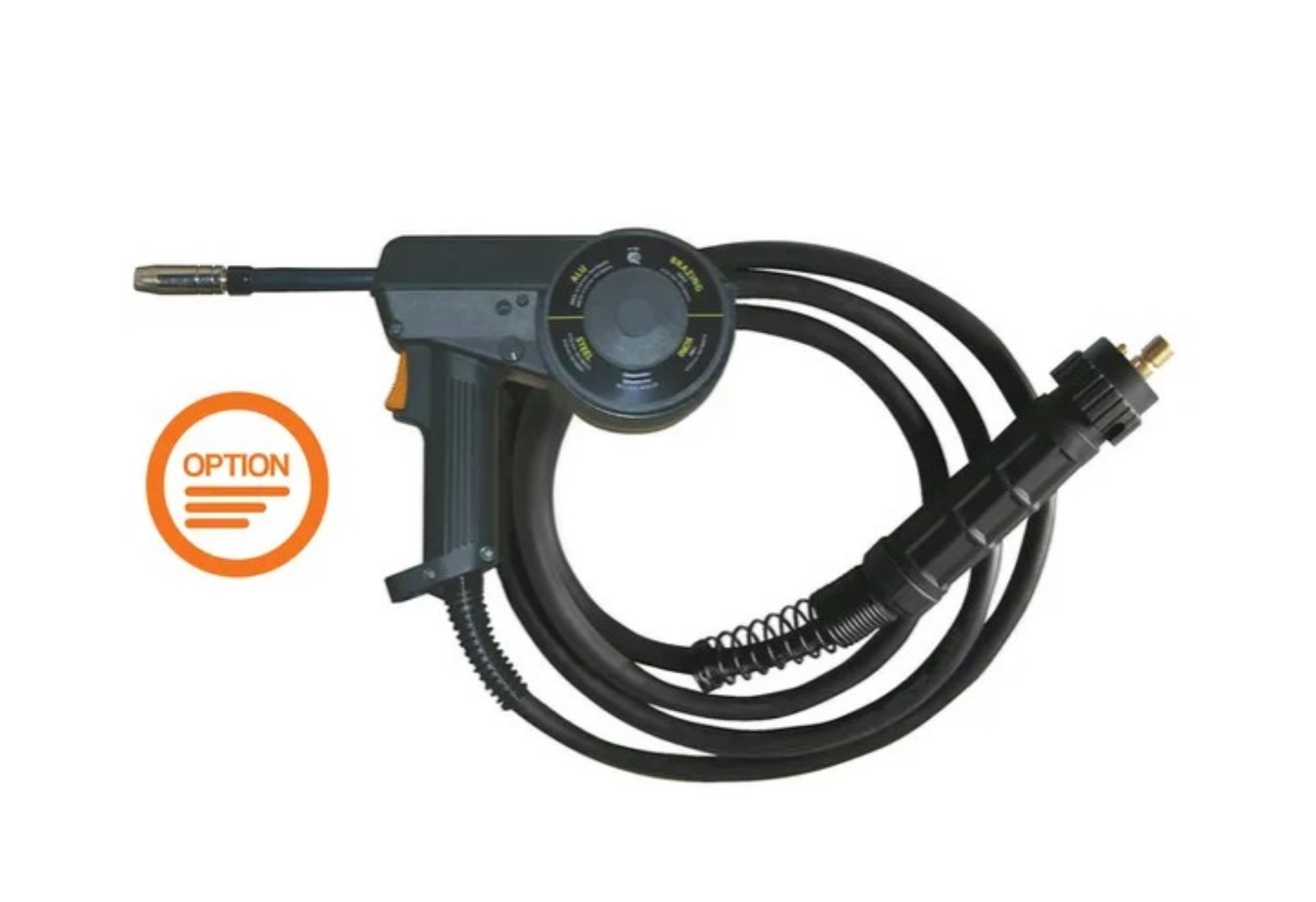

    Another great feature of this welding inverter is the option to connect a Spool Gun

    Features & Benefits

    • Single Phase MIG inverter welder
    • MIG/MAG and MMA welding processes
    • IGBT power device
    • Advanced control circuitry
    • Digital Amps/Volts display
    • Closed loop feedback control
    • High duty cycle for increased productivity
    • Suitable for 0.6/0.8/1.0mm MIG wires
    • Stable and reliable welding arc
    • Burn back control
    • Spool Gun interface
    • Welding wire inching feature

    Technical Specification

    Length (mm)
    900
    Width (mm)
    450
    Height (mm)
    755
    Weight (kg)
    48
    Input Voltage
    AC 230V - 50/60 Hz
    leff (A)
    28.4
    Input Power (kVA)
    11
    Current Range (A)
    30 - 250
    Duty Cycle @ 40°C
    250A @ 35%
    Power Factor
    0.75
    Protection/Insulation Class
    IP21S/F
    Efficiency (%)
    82
    No-Load Voltage (V)
    52

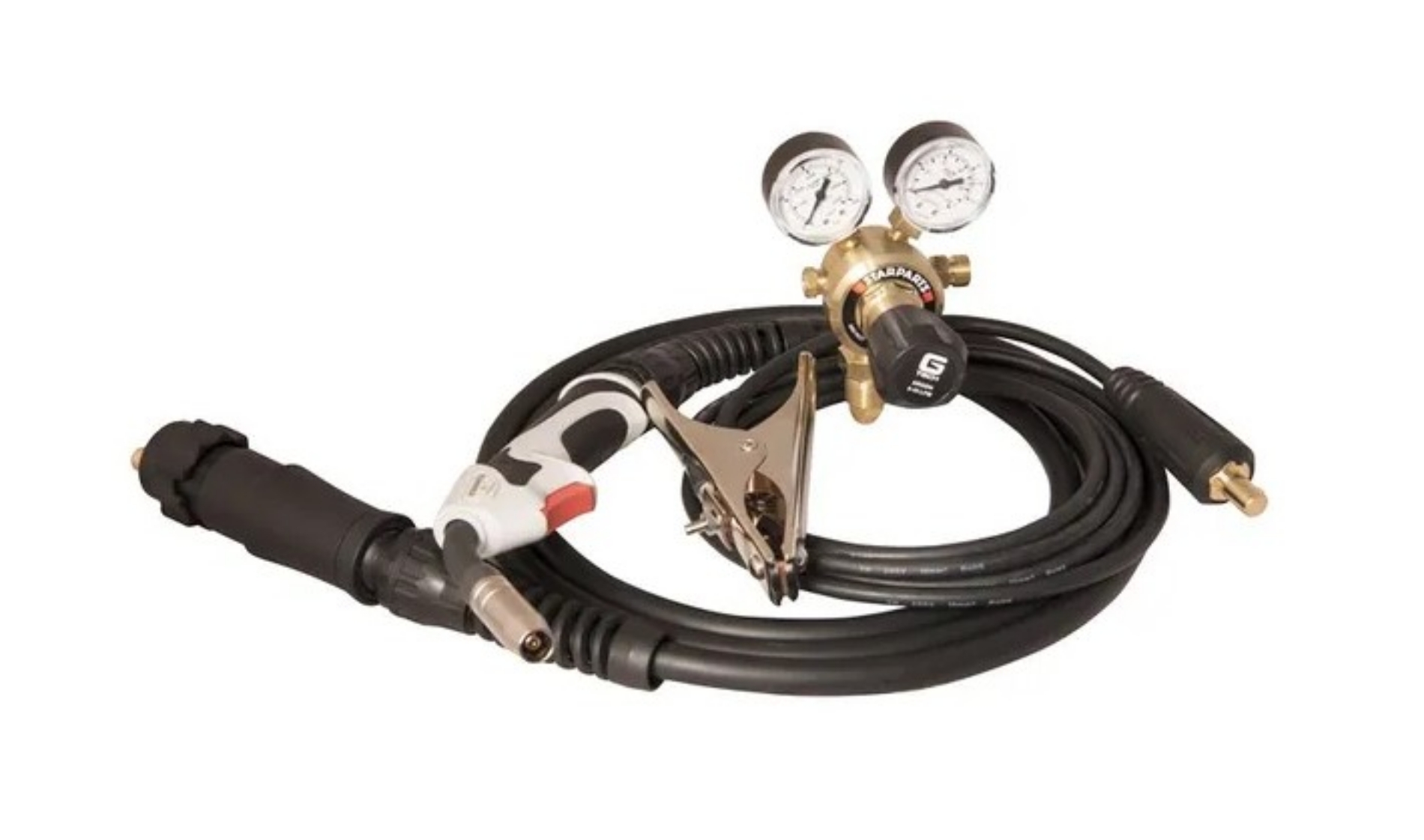

    What's In The Box

    • MIG inverter welder
    • MIG welding torch
    • Earth return lead
    • Gas hose and Regulator
