Jasic MIG 200 Compact Multi Process Inverter Mig Welder 230V | JM-200C £1029.00 Detailed Description
Multi process capabilities and a singular PCB for improved effeciency and maintenance.
This compact and portable inverter offers excellent welding characteristics and consistently reliable performance for both MIG MAG and MMA welding processes
Features & Benefits
- IGBT MIG/MMA/ Multi Process
- Single PCB compact welding inverter
- Self-adaptive creater filling function
- Stable arc and reliable performance
- Easy arc starting, less spatter, stable current and excellent weld bead shaping
- Suitable for 0.6/0.8/1.0mm welding wire
- Compact size, lightweight and modern design
- Burn back control
- Ideal for production, site work & maintenance
- Wire Spool Size ø 200mm
Technical Specification
Length (mm)
485
Width (mm)
185
Height (mm)
370
Weight (kg)
12.8
Input Voltage
AC 230V - 50/60 Hz
leff (A)
21
Input Power (kVA)
8
Current Range (A)
30 - 200
Duty Cycle @ 40°C
200A @ 35%
Power Factor
0.7
Protection/Insulation Class
IP21S/F
Efficiency (%)
85
No-Load Voltage (V)
53
What's In The Box

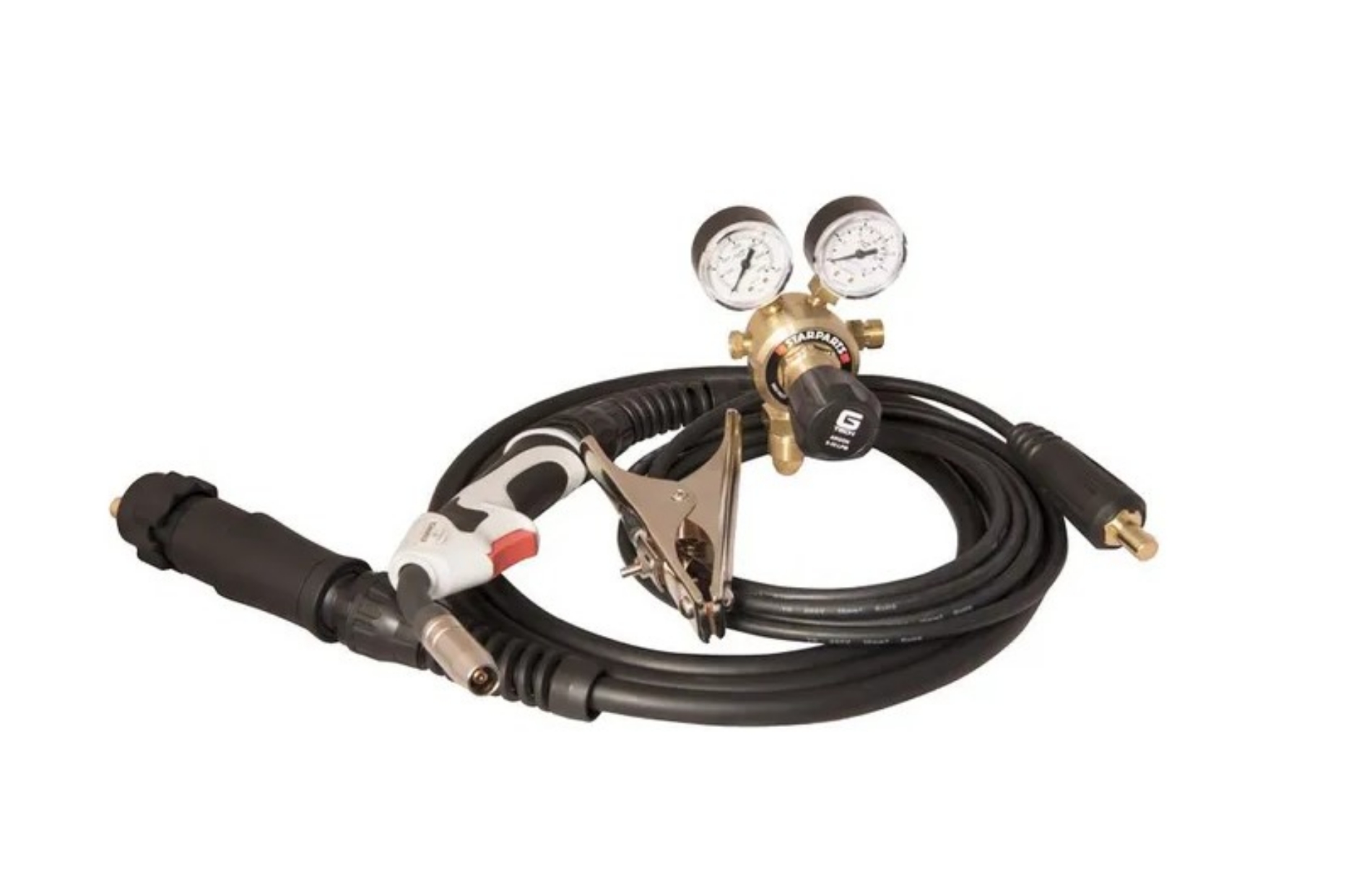

- Inverter power source
- MIG welding torch
- Earth return lead
- Gas hose and Regulator
- Operating instructions.
