Detailed Description
Fujitsu AOYG30KBTA4 8kW Air Conditioning System
The AOYG30KBTA4 outdoor heat pump and air conditioner unit can run up to 4 indoor air conditioning units. With A rated energy efficiency this system can run in either cooling or heating mode.
Height: 844mm | Width: 820mm | Depth: 315mm | Weight: 55kg
The Fujitsu multi-split air conditioning system range is extremely efficient and cost effective. With flexible installation – Piping length of 30m max, height difference of 15m can be supported (custom length copper piping available, refer to related products). Multi type can be installed in large-size residence or building with multiple floors.
Choose from a large range of indoor air conditioning units to best match your rooms. Minimum 2 indoor units, maximum 4 indoor units.
Maximum configuration allowance for the Fujitsu AOYG30KBTA4 8kW outdoor air conditioning unit
Indoor Unit 1 | Indoor Unit 2 | Indoor Unit 3 | Indoor Unit 4 |
ASYG12 | ASYG12 | ASYG09 | ASYG07 |
3.5kW | 3.5kW | 2.5kW | 2kW |

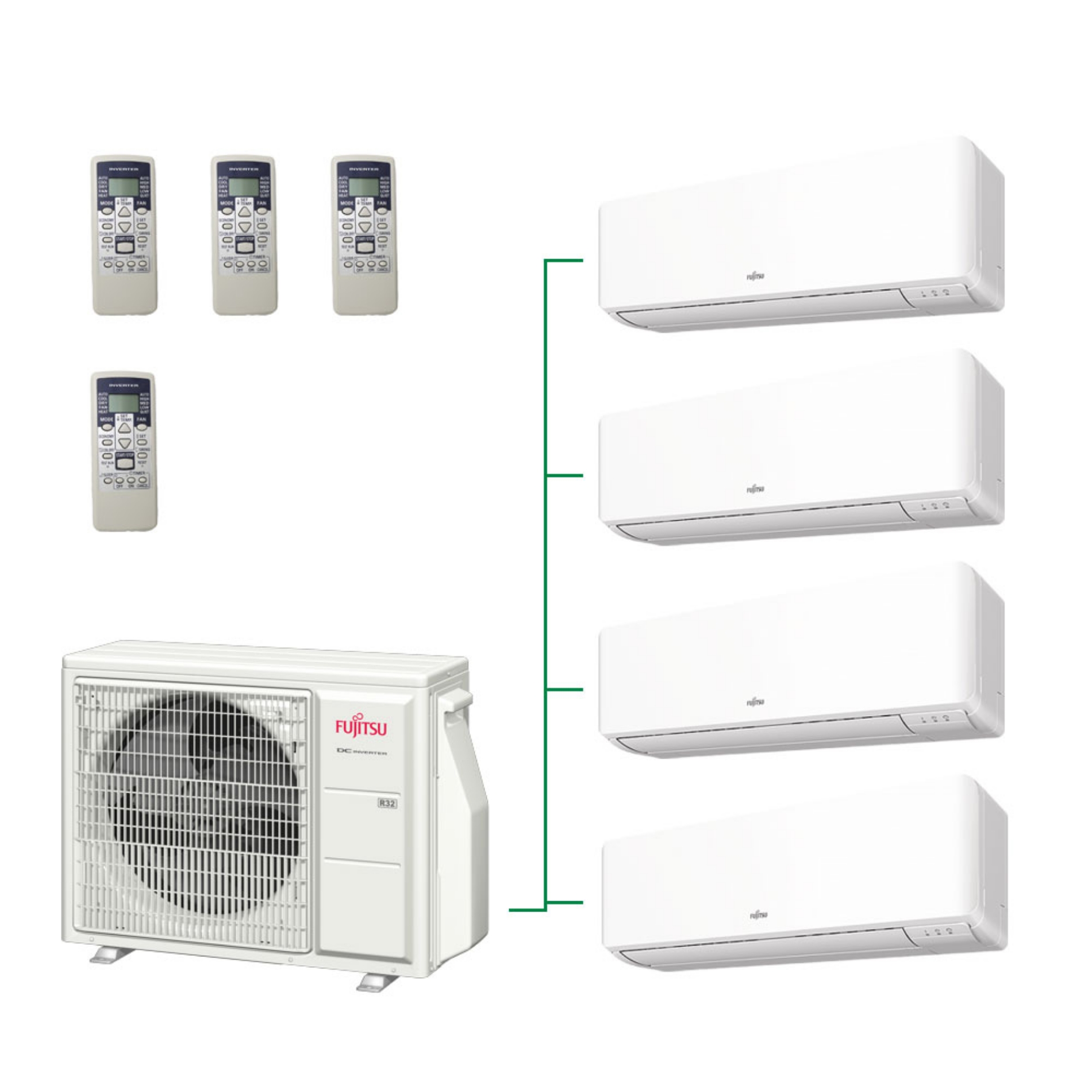

Wall Mounted Standard Range - KMCE
Slim & stylish square design | High energy saving | Low noise – 20dBA on low | Infra-red controller
Wall Mount Designer Series (High Spec & Design) - KGTE
Full reverse cycle heat pumps | LCD remote controller | Very energy efficient at heating | Environmentally friendly refrigerant R32

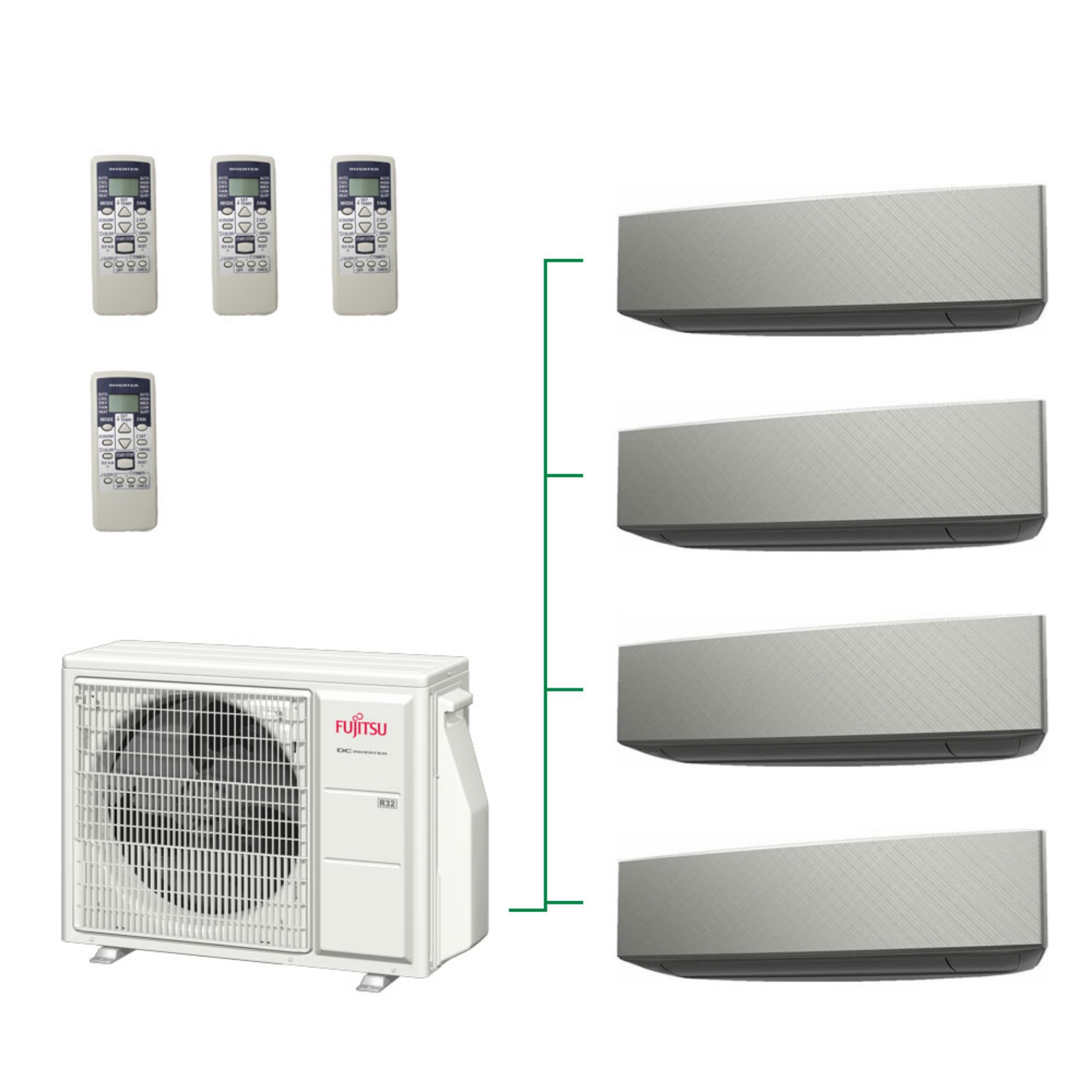

Wall Mount Designer Series - Dark Grey/Silver - KETE
Cool beauty design | Top class high efficiency | Heat pump inverter technology | Comfortable airflow & silent operation
Wall Mount Designer Series - Pearl White - KETEB
Cool beauty design | Top class high efficiency | Heat pump inverter technology | Comfortable airflow & silent operation
Installation
Our residential customers are looking to save money on sourcing the equipment with intentions to install the hardware, either themselves or by the builder. You will need an F-GAS registered engineer on standby to come and commission the unit once it is in place.
Alternatively, you could have your engineer completely fit the unit from start to finish, having saved a small fortune by sourcing the system from us.
We will ensure you are buying the correct unit for your space. If you need assistance please contact the team on 0330 175 9558 or email orders@sunbeltsales.co.uk. Alternatively, you can use our live chat option.
Features & Benefits
- Uses R32 refrigerant - environmentally friendly
- Latest generation energy efficient inverters
- One outdoor unit and four indoor units
Technical Specification
Document Download
Documentation File Format Size
What's In The Box
1 x Fujitsu AOYG30KBTA4 8kW
Please select up to 4 indoor units from the drop down options
