Detailed Description
Short-range professional grade laser scanner.
The ultra-portable device enables fast, straight-forward and accurate measurements of small construction sites, small-scale facades, complex structures, production and supply facilities and manageable crime and accident scenes. Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data.
The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.

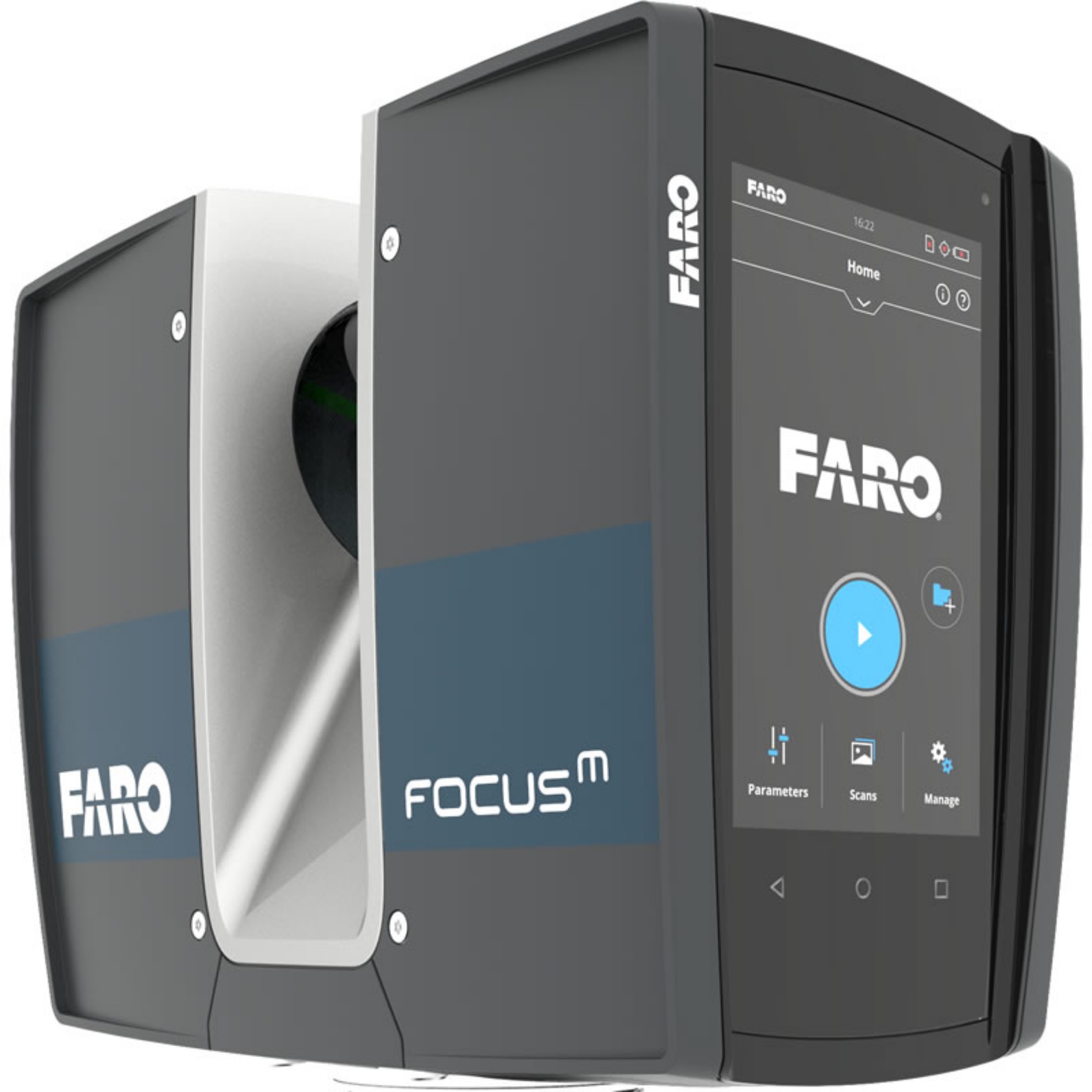

The FARO Laser Scanner M 70 is equipped with recognisable features from FARO’s most popular, compact lightweight and intuitive laser scanner product line.
Features & Benefits
- Range: 0.6 – 70m
- High Dynamic Range (HDR) Exposure Bracketing 2x, 3x 5x
- Measurement Speed: up to 488,000 points/second
- Ranging Error: ±3mm
- Sealed Design – Ingress Protection (IP) Rating Class 54
- On-site Compensation
- Integrated GNNS and GLONASS
- Field of View (vertical³/Horizontal): 360˚/360˚
- Max. Vertical Scan Speed: 97Hz
- Laser Class: Laser Class 1
- Weight: 4.2kg
- Size: 230 x 183 x 103mm
Technical Specification
What's In The Box
FocusM 70 Laser Scanner with HDR photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, IP rating 54
Battery Power Block
Battery Power Dock
90W Power Supply
Optic Cleaning Fluid
Optic Cleaning Tissues
32GB SD Card
SD Card Reader
SD Card Cover
Allen Wrench
Rugged Transport Case
Calibration Certificate
Quick Start Guide
Scene Licence
