    Leica Geosystems

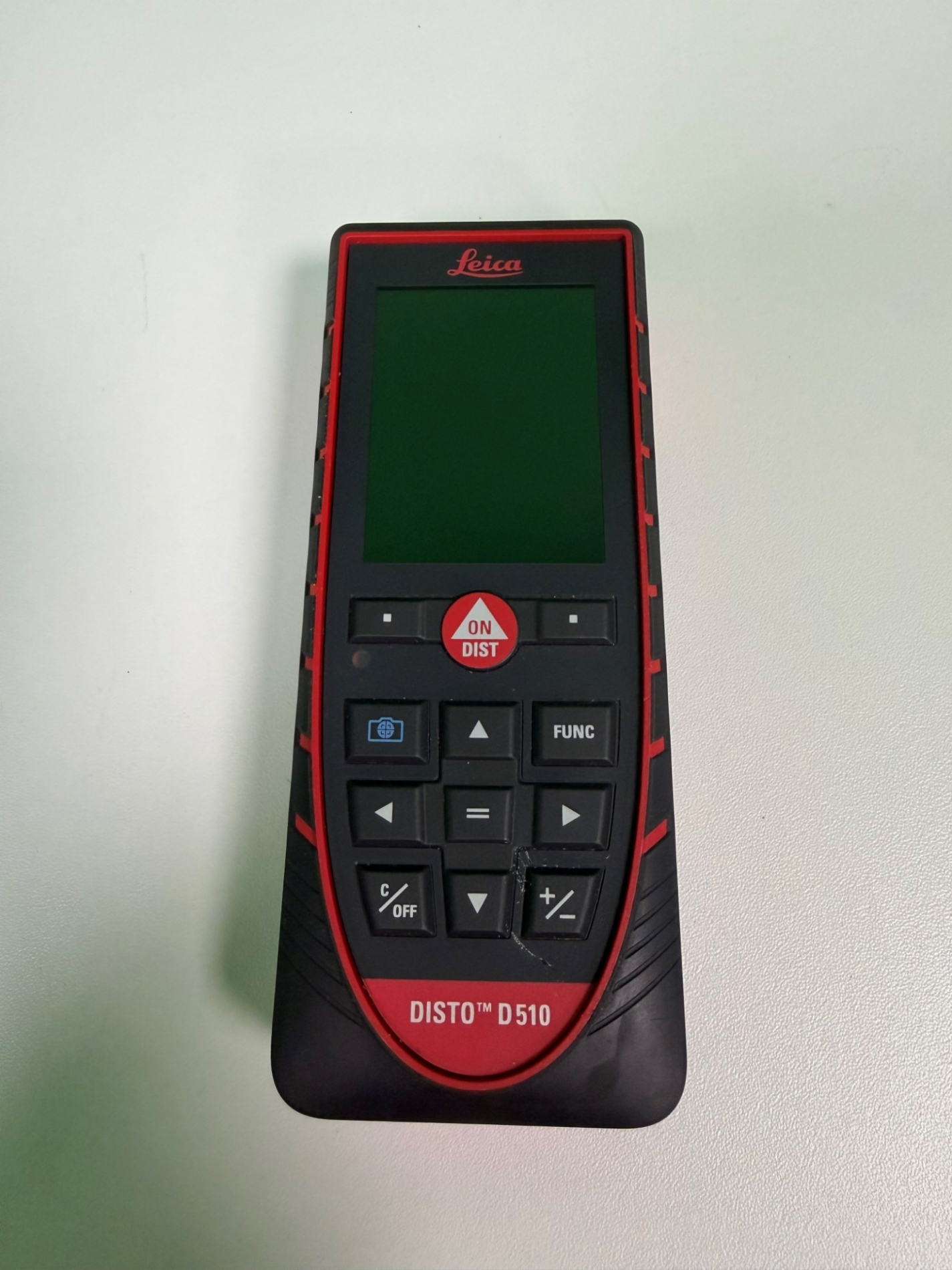

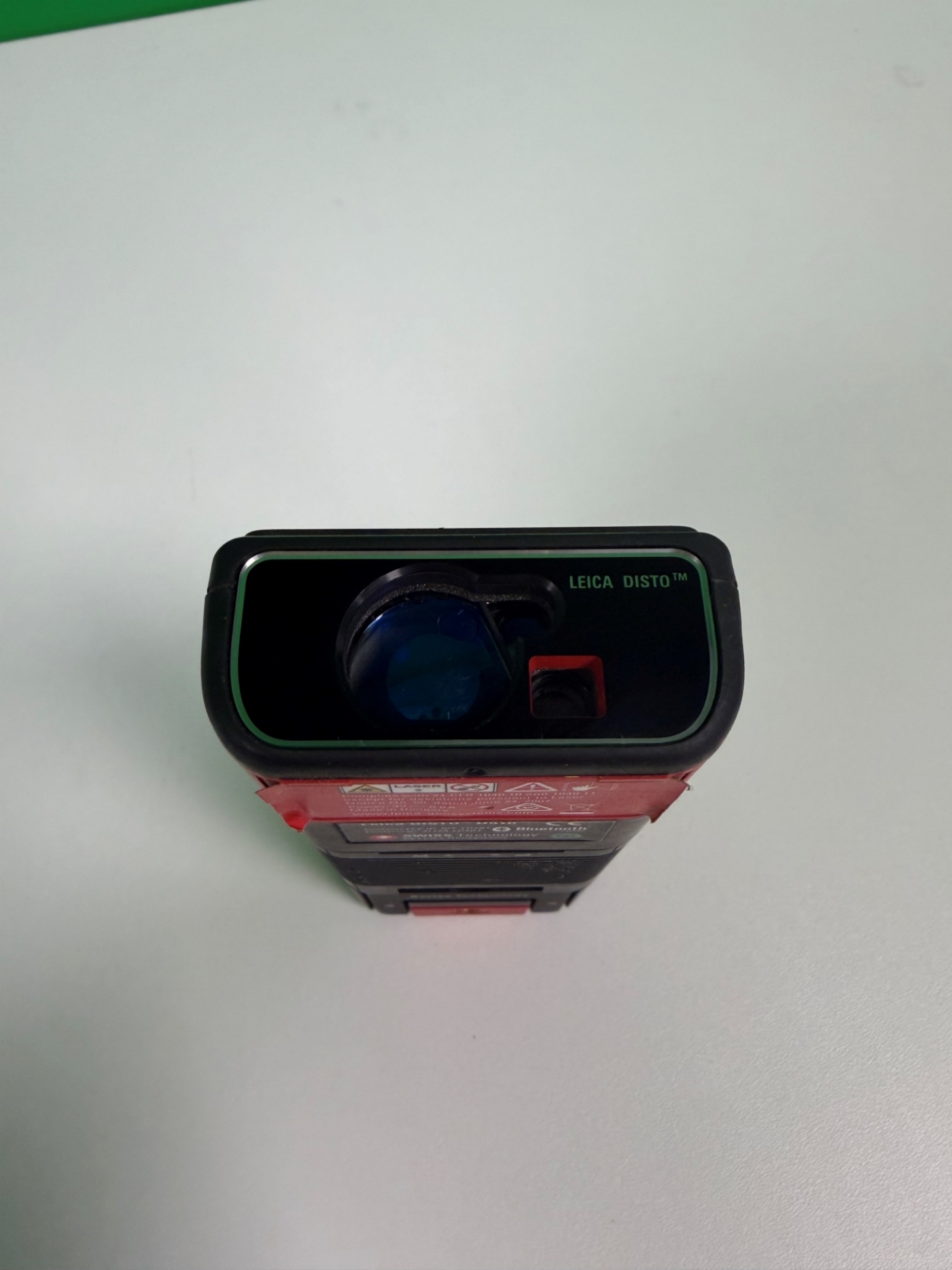

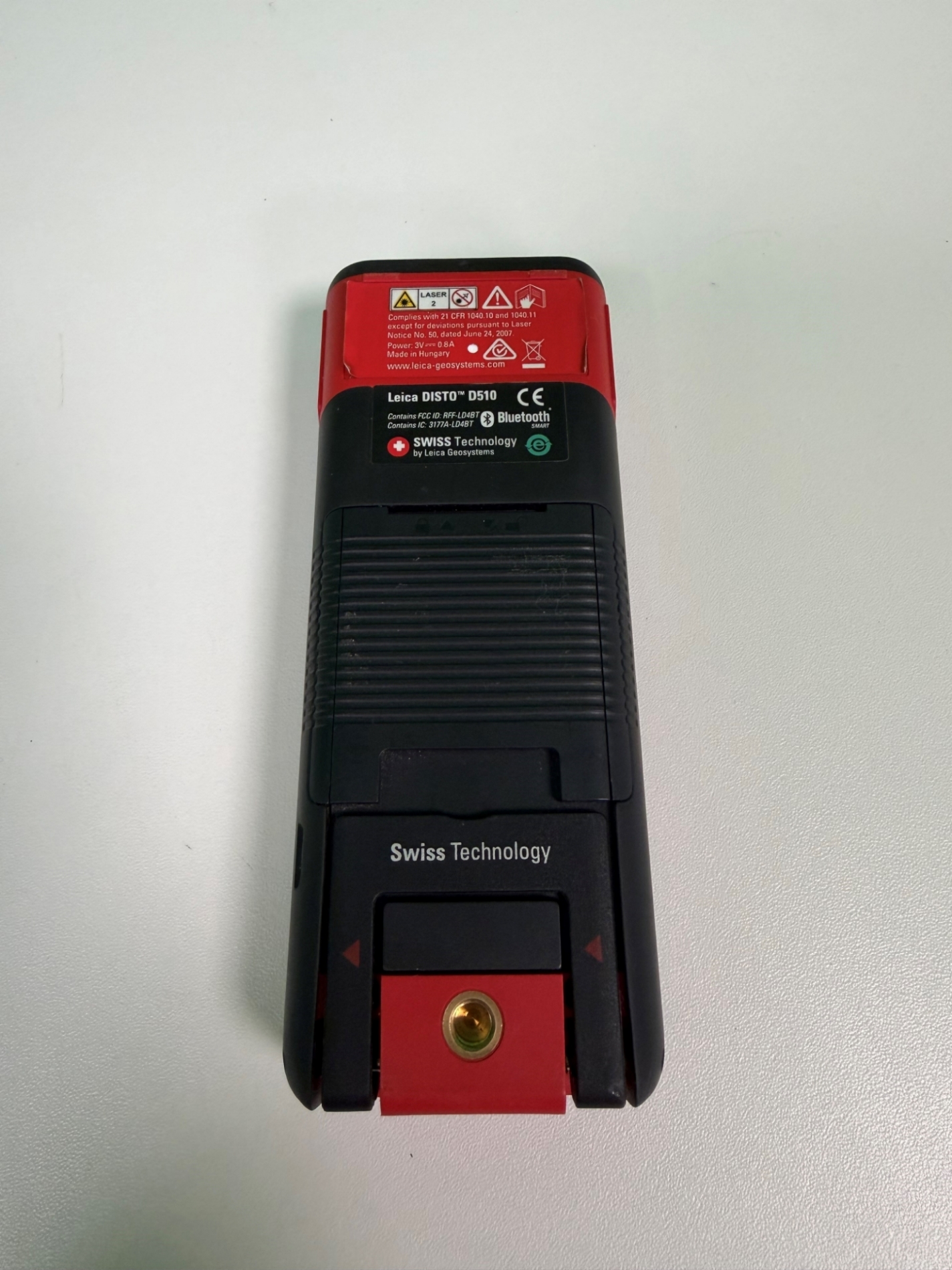

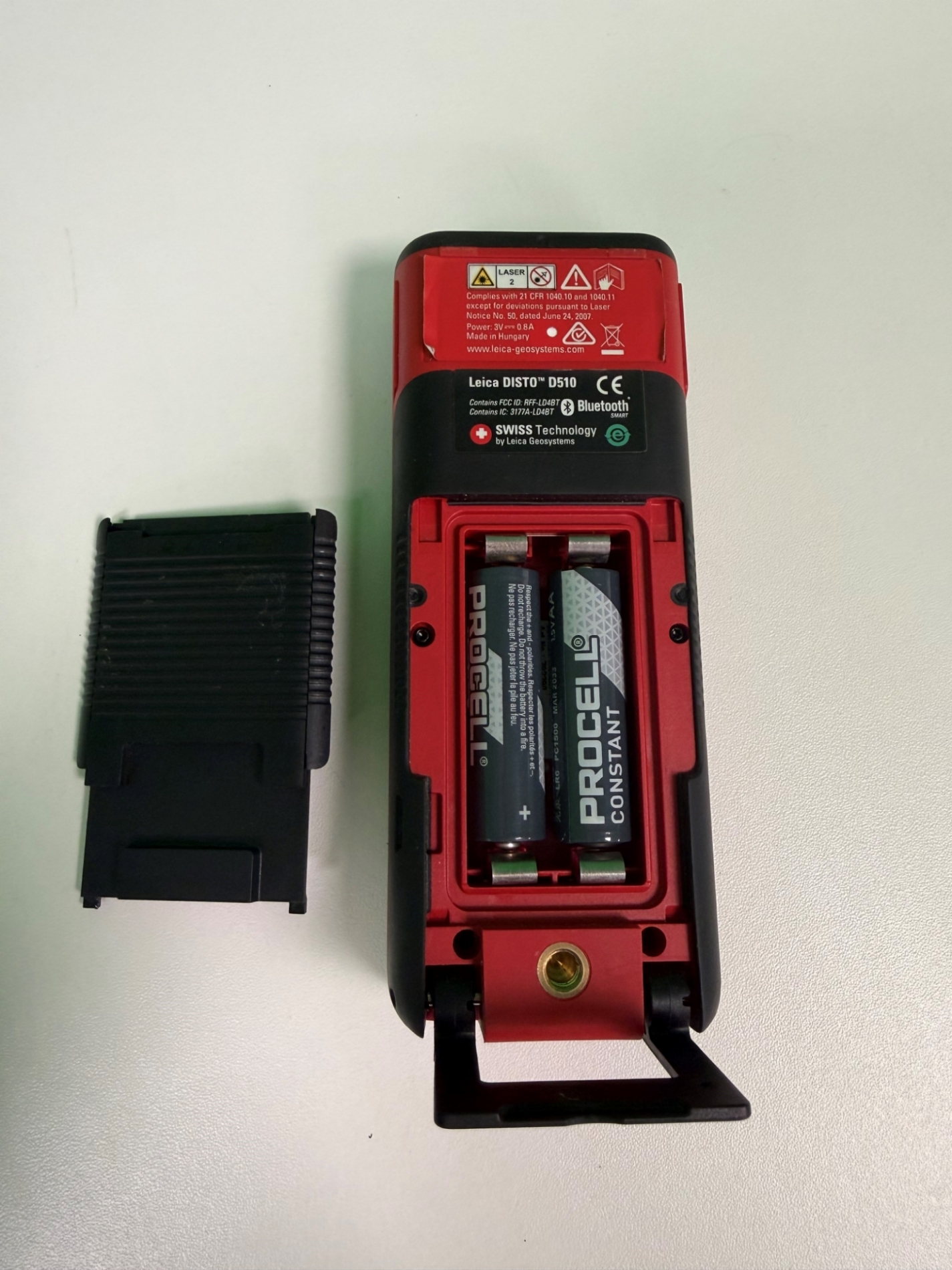

    Ex Hire Leica DISTO D510 Laser Distance Meter

    SKU: ReconD510

    The Leica DISTO™ D510 stands for easy and effortless outdoor distance measurement. The unique combination of digital Pointfinder and 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth® Smart and attractive free apps, you are prepared for the future.

    12 Month Certificate of Conformity | Fully Calibrated | 3 Month Warranty

    Back

    £95.00 Ex. VAT Inc. VAT

    In stock
    Picture of Ex Hire Leica DISTO D510 Laser Distance Meter Ex Hire Leica DISTO D510 Laser Distance Meter £95.00 Ex. VAT

    Detailed Description

    Features:

    • Pointfinder with 4x zoom
    • IP65 water jet protection and dust-tight
    • 360° tilt sensor
    • Smart Horizontal Mode™
    • Height tracking
    • Bluetooth® Smart
    • Free App – Leica DISTO™ sketch

    Simple and Precise Targeting - Pointfinder with 4x Zoom
    With the Pointfinder, the Leica DISTO™ D510 takes measurements with perfect accuracy and in unfavorable light conditions. This is a decisive advantage when working outside in sunny weather. Even if the red laser point is no longer visible to the naked eye, the target can be seen exactly in the crosshairs on the display.

    Unlimited Number of Measuring Options - 360° Tilt Sensor
    The Leica DISTO™ D510 is equipped with a 360° tilt sensor. This means that it is not only possible to measure angles, but horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options areprovided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter.

    Efficient Height Profile Measurement
    Using this function, the Leica DISTO™ D510 displays distances and height differences to an established reference point. This makes it easy to quickly make profile measurements, without having to use more expensive measuring methods. Also, this function can be used to check whether cross beams are straight, the levelness of existing floors, among other applications.

    Quick Sketching - Bluetooth® Smart with App
    The Leica DISTO™ D510 is capable of more than just measuring. Measurement data can be conveniently and accurately transferred using the integrated Bluetooth® Smart Technology. The free app Leica DISTO™ sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever.

    Modern Ergonomics
    Providing the simplest possible operation of complex measuring functions is a must for Leica Geosystems. The Leica DISTO™ D510 has been adapted to the user interface of modern cell phones. Furthermore your favourite functions can be assigned to a pair of selection keys, for quick access with a single button press. And the integrated, easy-to-understand help function does not leave you in the lurch on site.

    Tough and Easy to Clean - IP65
    The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and water jet protected.

    ISO Standard 16331-1 – The Standard for Laser Distance Meters
    The range and accuracy of laser distance meters depend on light conditions and reflectivity of the measuring target. For Leica Geosystems it is important that the instruments not only perform under perfect laboratory conditions, but above all under the kind of everyday working conditions encountered on construction sites. This is why, working together with external experts, the company have developed a standard by which laser distance meters can be tested and compared with each other.

    D510 Pro Outdoor Pack
    The Leica DISTO™ D510 Pro Pack includes the D510 laser distance meter, FTA 360 tripod adapter and the TRI 70 tripod for outdoor use. This package combines rugged capabilities of the D510 with high precision from the fine tune tripod adapter. A hard case is also provided.

    Features & Benefits

    Specifications:
    Typical measuring accuracy± 1 mm
    Rangeup to 200 m
    Measuring unitsm, ft, in, yd
    Power Range Technology™
    Distance in m
    Ø of the laser dot in mm
    10, 50, 100 m
    6, 30, 60 mm
    Tilt sensor measuring range360°
    Pointfinder with 4x zoom
    Memory30 displays
    Free App
    Data interfaceBluetooth® Smart
    Measurements per set of batteriesup to 5000*
    Multifunctional end-pieceautomatic recognition
    Batteriestype AA 2 × 1,5 V
    Tripod thread
    Protection classIP 65 – water jet protection and dust-tight
    Dimensions143 × 58 × 29 mm
    Weight with batteries198 g



    Technical Specification

    Max. Range (metres)
    200
    Accuracy (mm)
    1
    P2P Functionality
    No
    Application
    Interior Exterior
    Camera
    Yes

    Document Download

    Documentation File Format Size

    Leica DISTO D510 Quick Start Guide PDF 2.4 MB
    Leica DISTO D510 User Manual PDF 5.6 MB
    Leica DISTO D410 & D510 Product Brochure PDF 2 MB
    Leica DISTO Series Product Brochure PDF 4.1 MB

    What's In The Box

    DISTO D510
