Leica Geosystems

Ex Hire Fleet LMR360R Machine Receiver

SKU: ReconLMR360R

At a glance, the Leica LMR360R provides precise grade control, a vertical indicator, laser compatibility, rugged and waterproof and includes rechargeable batteries. With the use of any rotating laser, such as the Leica Rugby 800, the LMR240 is able to be detect the beam through 360° and provides precise grade information from any angle. The vertical indicator, which is built in to the instrument, saves time and money by reducing the under and over cutting by ensuring precise and consistent grade information is provided. It monitors the stick angle and signals if the plumb is over or under extended.

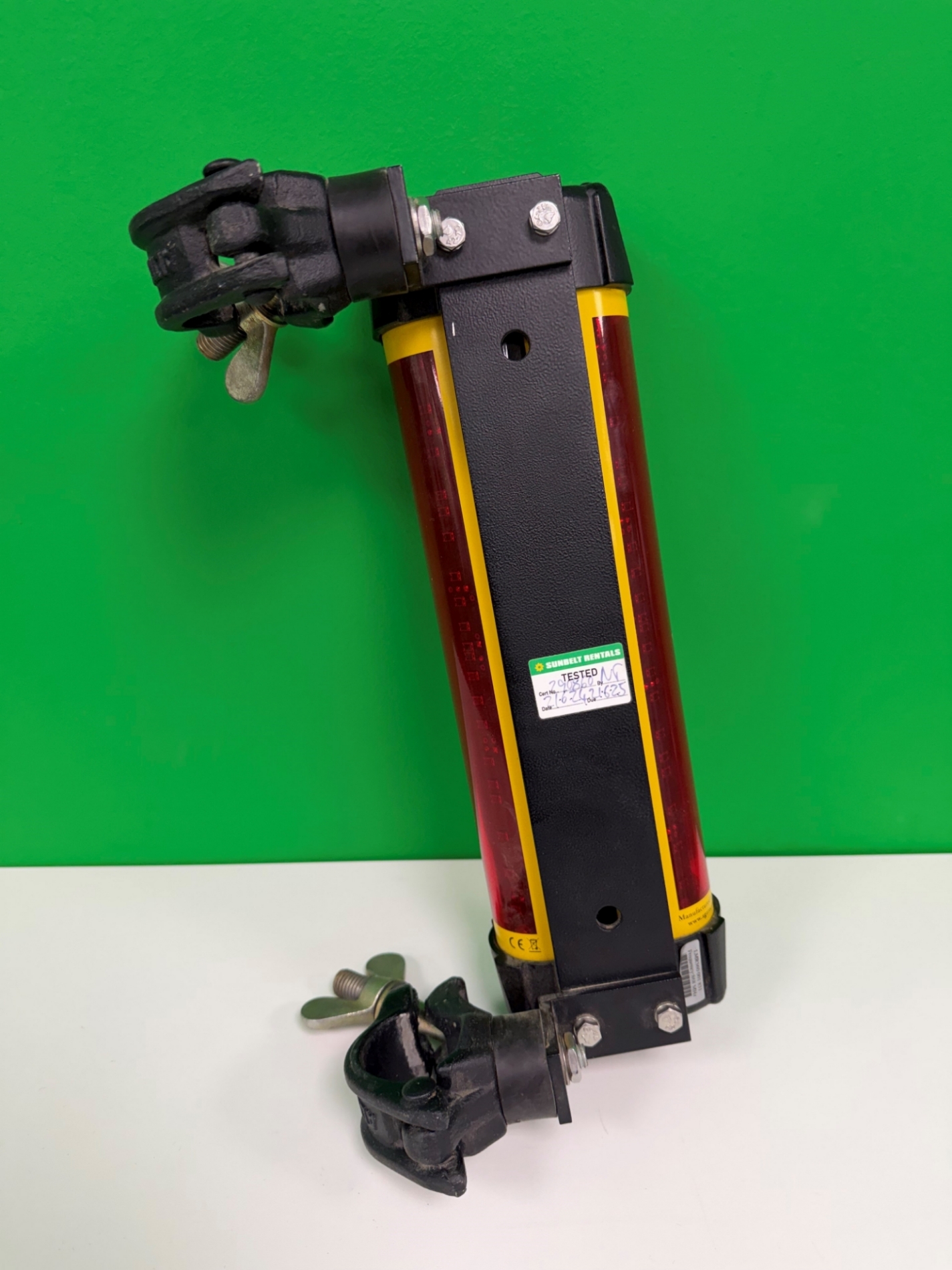

Magnets provide quick and easy mounting and movement to any from varying machines. An optional clamp kit can be provided.

12 Month Certificate of Conformity | Fully Calibrated | 3 Month Warranty

Back

£800.00 Ex. VAT Inc. VAT

In stock
Picture of Ex Hire Fleet LMR360R Machine Receiver Ex Hire Fleet LMR360R Machine Receiver £800.00 Ex. VAT

Detailed Description

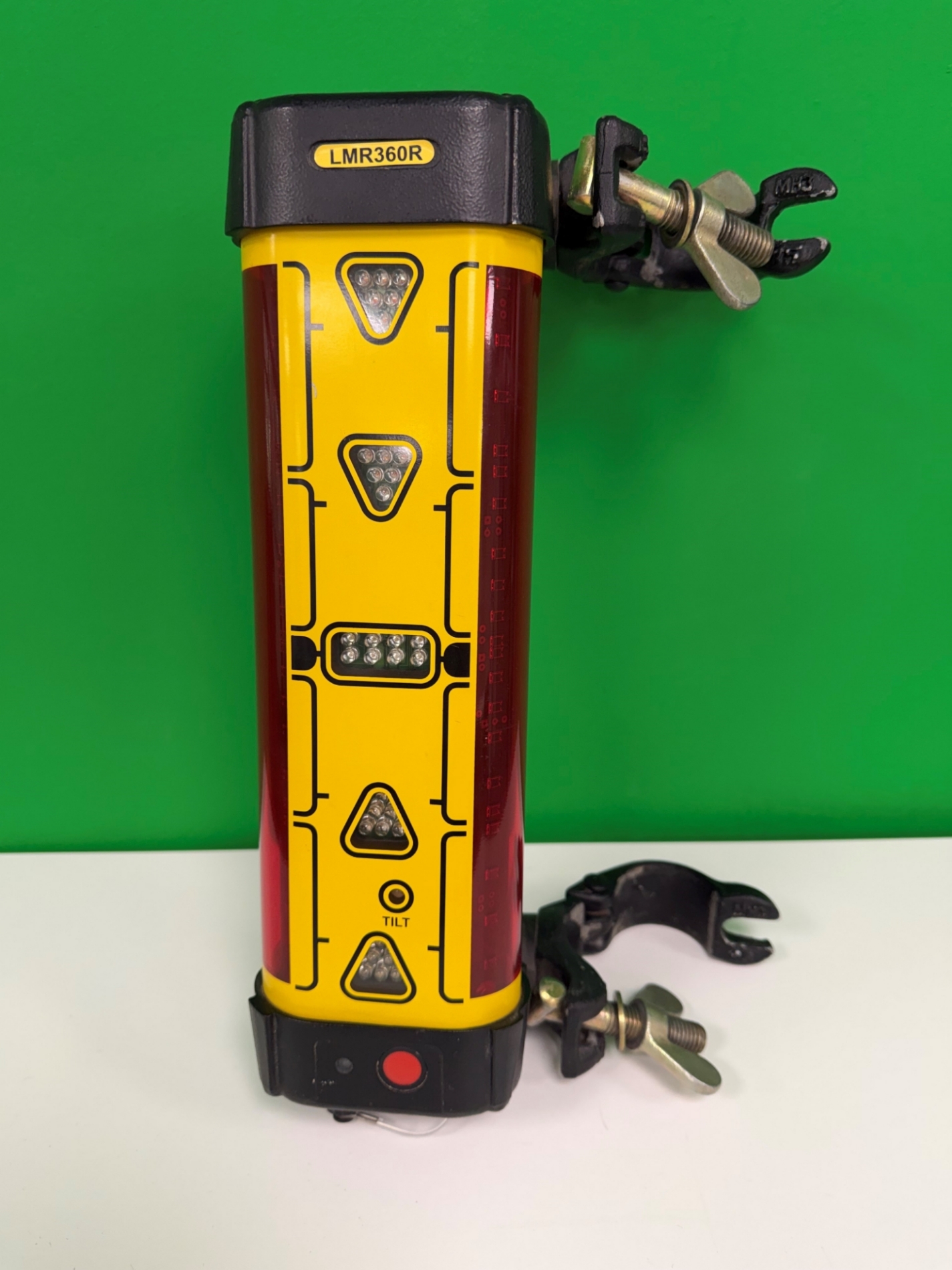

LMR360R 360° Machine Mounted Receiver - Features

  • Position of the cutting edge identified with LED indicators. Seven different channels are available.
  • The most recent signal is stored in the memory which helps indicate which direction to move the cutting edge.
  • LED plumb indicator which shows direction arrows for plumbing upwards the dipper stick.
  • Tough, waterproof and rugged, ideal for harsh construction environments. Also includes shock mounts to decrease machine vibrations.

LMD360R Remote Display - Features

  • Remote display can be mounted to the machines windscreen with a strong suction cup without obscuring the operators view.
  • Shows all 9 receiver channels in addition to the indicator arrows wirelessly.
  • Settings and menu options can be changed through the remote display easily and without leaving the machine.
  • Preferred receiver channel can be selected especially when more than one system is being used on site.

Features & Benefits

  • 200 meter operating radius
  • 360 ° reception window
  • Capture window 25cm
  • Accuracy* Fine 6 mm, Coarse 12mm
  • ± 5 ° Vertical indicator
  • Protected to IP67 and waterproof
  • Rechargeable NiMh batteries
  • 30 meter frequency range

Technical Specification

Document Download

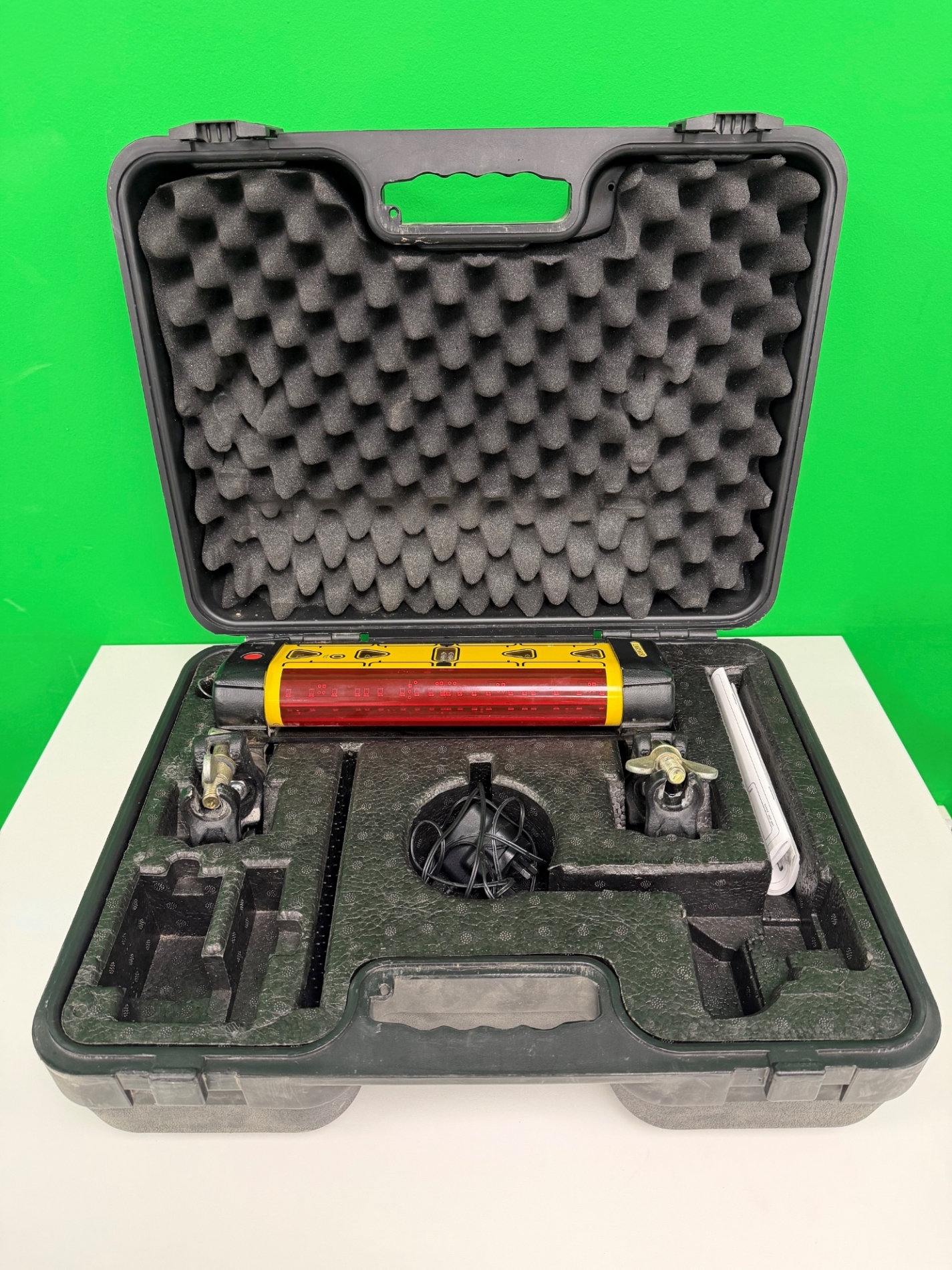

What's In The Box

LMR360R Receiver
Charger
Case
