    Leica Geosystems

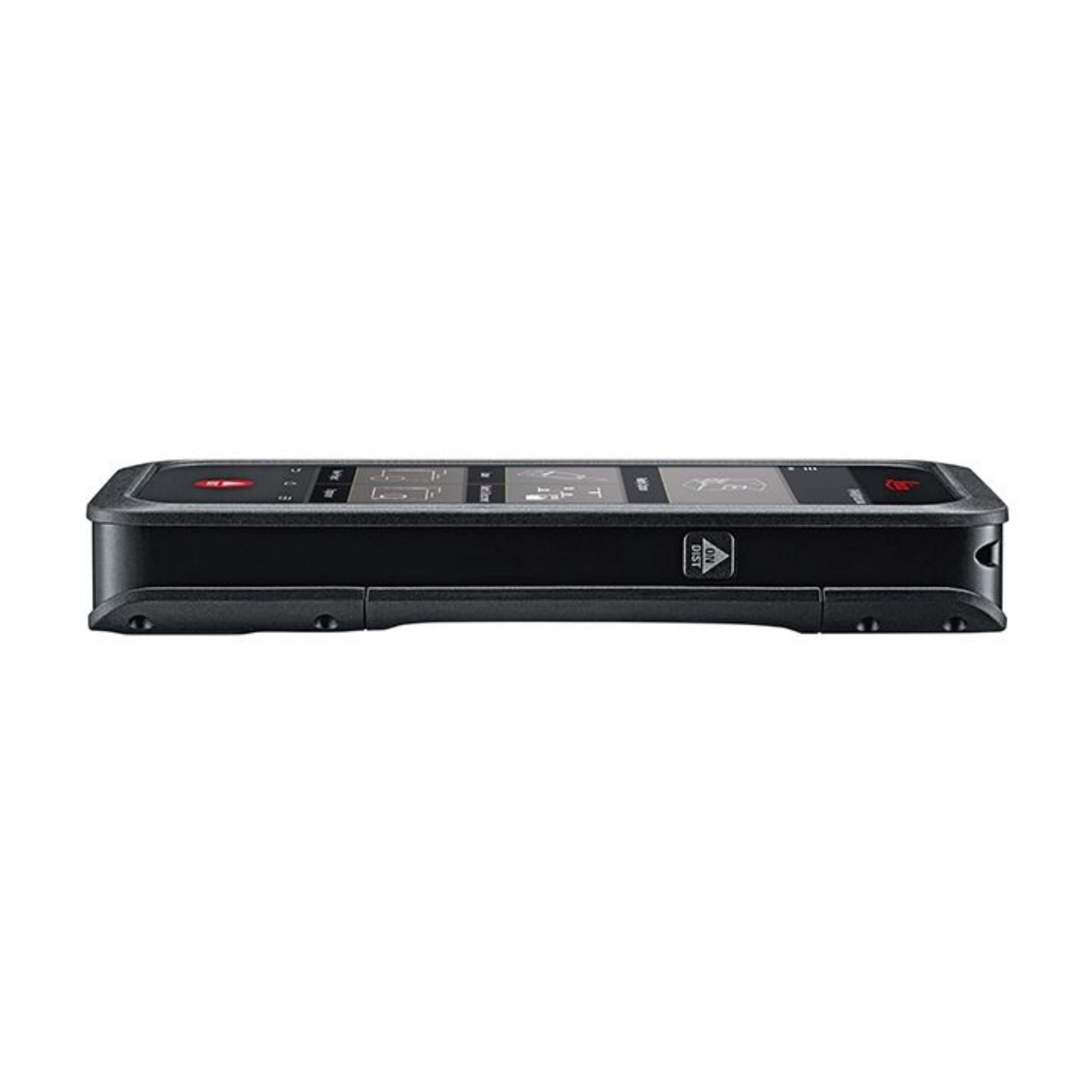

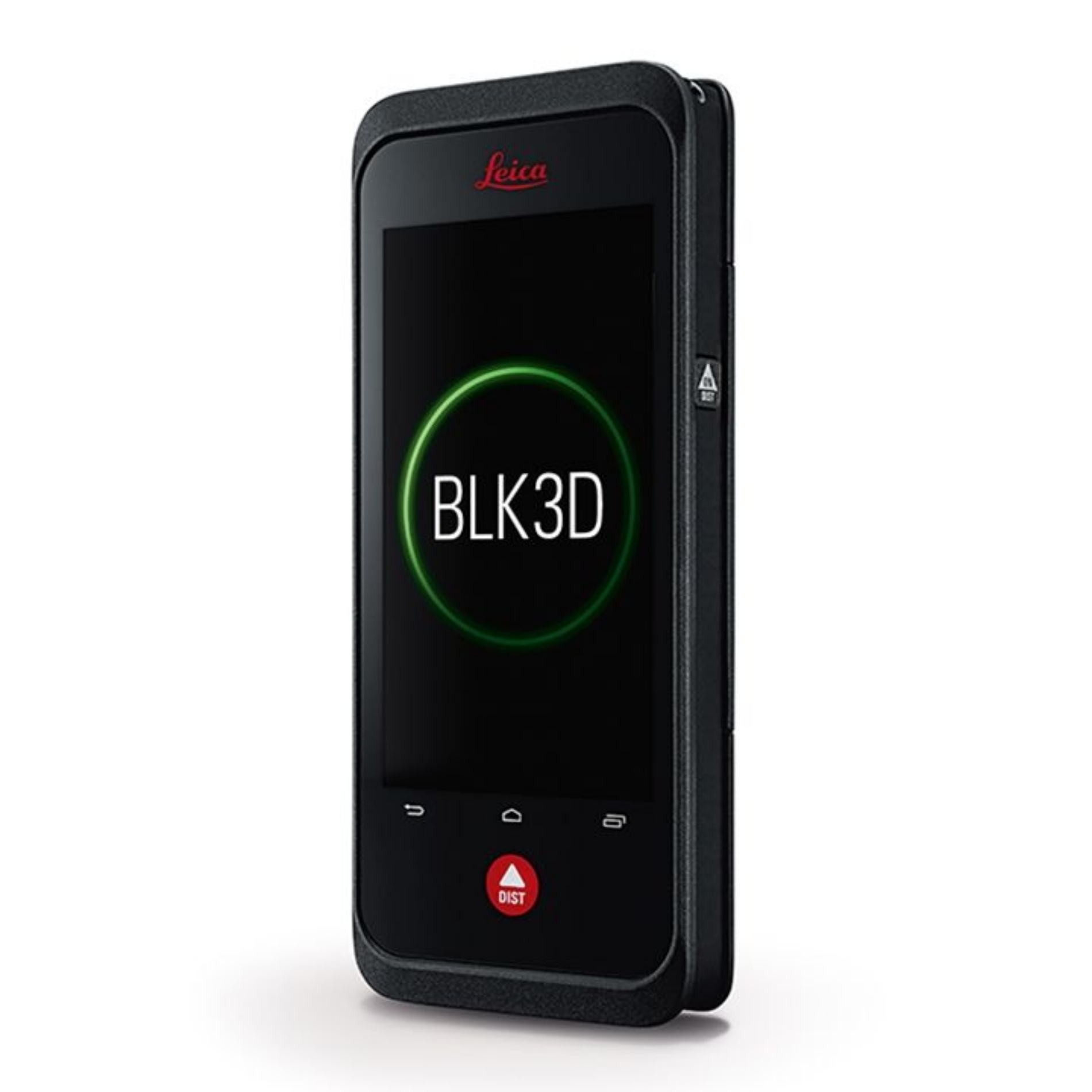

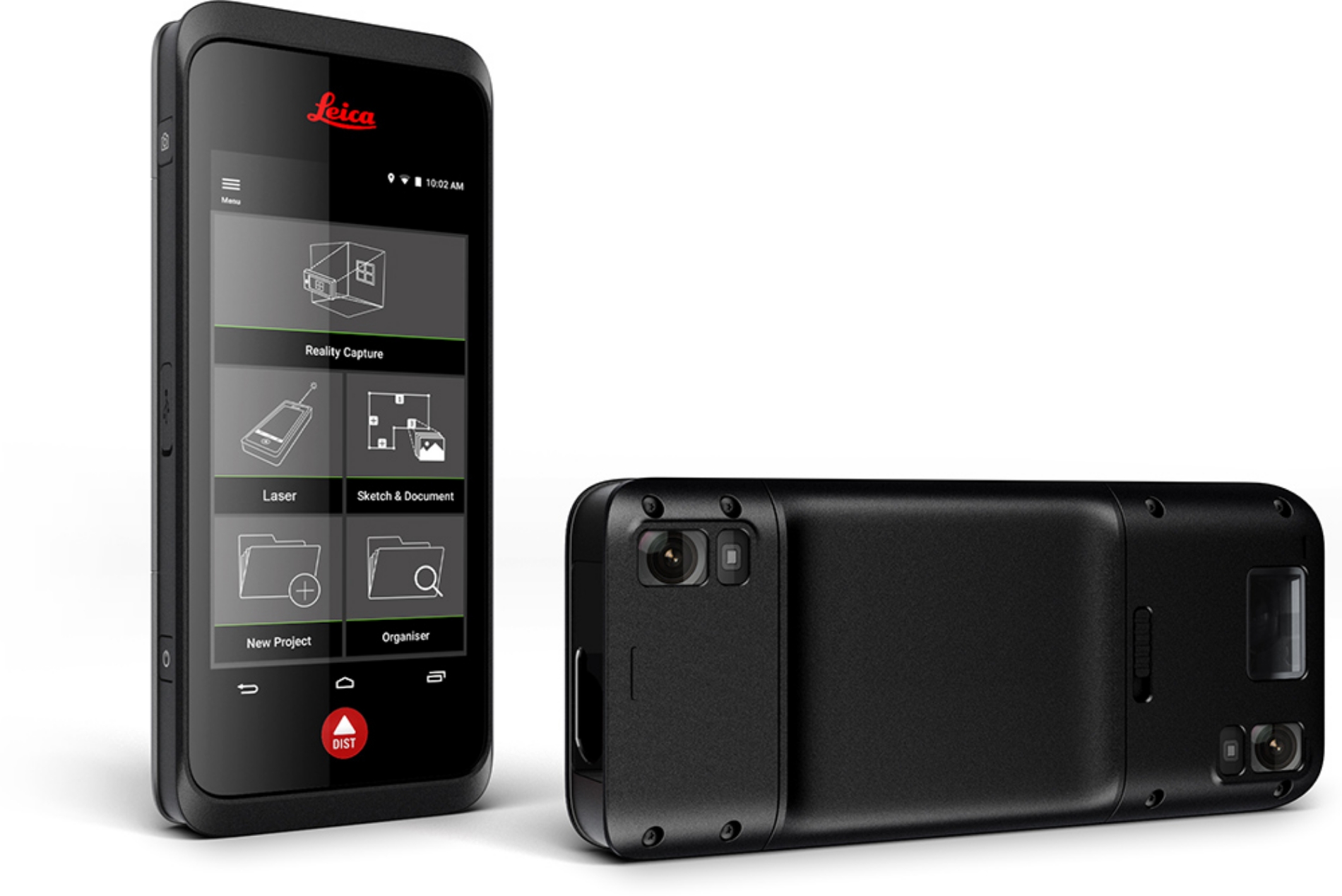

    Ex Hire Fleet Leica BLK 3D Imager

    SKU: reconBLK3D

    12 Month Certificate of Conformity | Fully Calibrated | 3 Month Warranty

    Please note there would be around 4x weeks turn around on this equipment, as we would need to send the instrument to Leica for its calibration

    Back

    £1550.00 Ex. VAT Inc. VAT

    In stock
    Software Options
    Picture of Ex Hire Fleet Leica BLK 3D Imager Ex Hire Fleet Leica BLK 3D Imager £1550.00 Ex. VAT

    Detailed Description

    The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes in-picture measurements with professional-grade accuracy in real-time possible. Every image captured is a complete and precise 3D measurement record.

    Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

    Take a picture. Measure anything.
    The BLK3D captures images and places precise measurements at your fingertips. Share images and measurements in multiple formats.

    The art of photogrammetry. Simplified.
    Un-matched combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.

    Access projects. Anywhere, anytime.
    Measure in your image – on the handheld imager, on the desktop, on-site or in the office.

    Working with digital floorplans.
    Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.

    New dimensions for 2D pictures.
    The BLK3D creates images that contain precise three-dimensional measurements.

    Progressive project documentation for AEC.
    Capture critical moments throughout the life of a building.

    Object detection and snapping.
    Auto-Snapping uses computer vision technologies to select the right points for your measurements.

    Store. Organize. Share.
    Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.

    Features & Benefits

    Design & Physical Dimensions
    MaterialBlack anodized aluminium
    Dimensions180mm x 77mm x 27mm
    Weight480g
    ConnectorUSB-C
    Display5’’ HD IPS Capacitive Touch Display
    P2P SupportQuick Mount on Leica DST 360
    Power
    Battery TypeSwappable, rechargeable Li-Ion battery
    Capacity14 Wh
    Chargingvia USB-C connector or external charger
    Environmental
    RobustnessDesigned for any construction site
    Operating Temperature-10°- +50°C
    Imaging
    Camera2 x 10MP with 80°Field of View
    AlgorithmsAdvanced SGM algorithmic on-board (GPU) + EDM
    Structure from Motion (SFM) algorithmic for poses and orientation
    Operating System & Processors
    Operating SystemAndroid 7 (Nougat) with GMS certification
    CPUQualcomm Snapdragon 820E (Quad Core @ 2.35 GHz)
    Storage64GB
    RAM4GB
    CommunicationWLAN (5GHz), Bluetooth 4.1 and 2.1
    Performance
    Measurement Speed<1 sec
    Rangeup to 20m (imaging); 250m (Electronic Laser Distance Measurement)

    Technical Specification

    Document Download

    What's In The Box

    1x BLK 3D Imager
    1x LED Lamp & USB Cable Attachment
    1x Battery & Charger
    1x Rugged Case
