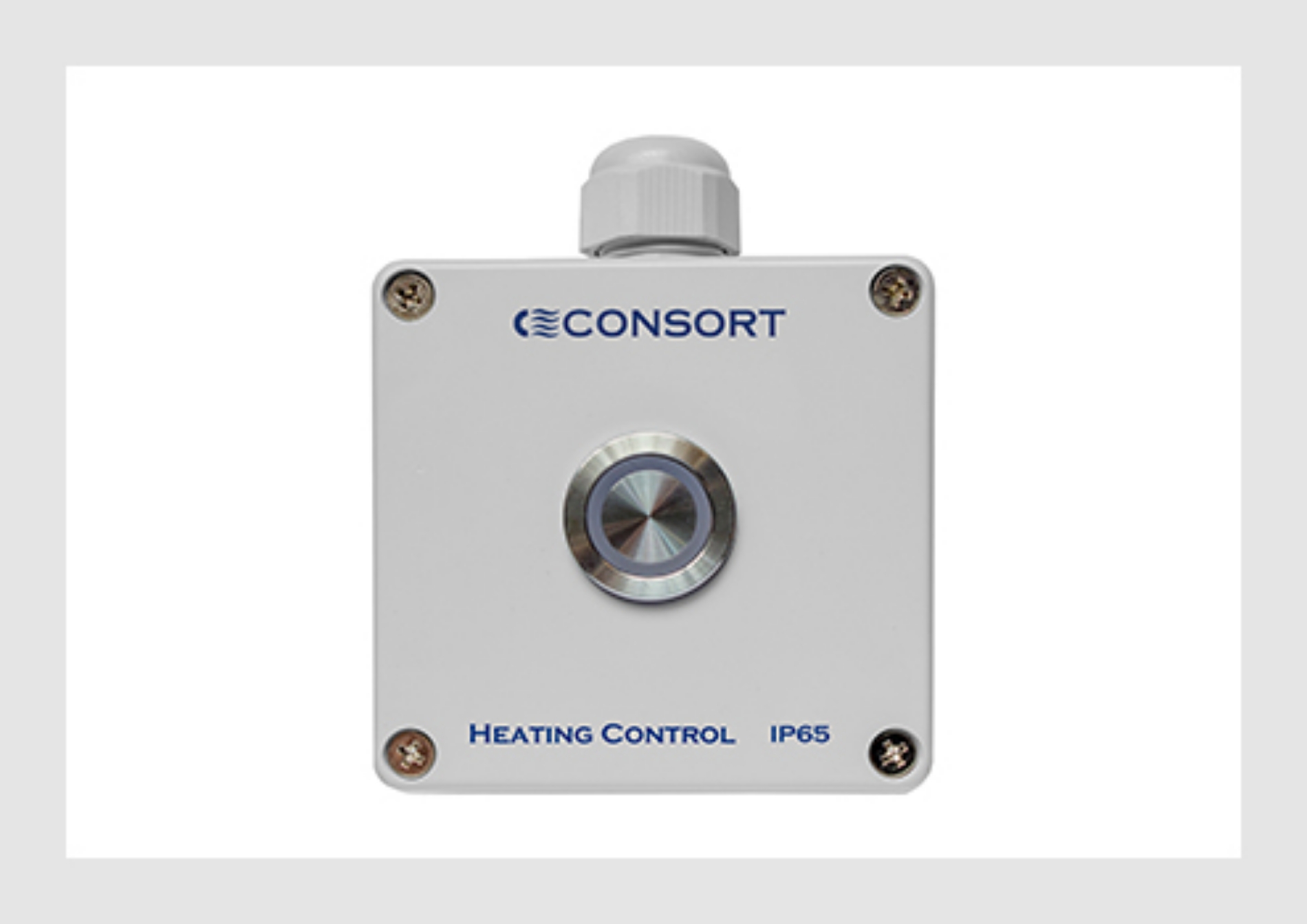

Consort Claudgen SLPBWP Waterproof Wireless Controller £102.00 Detailed Description
Ideal for outdoors, bathrooms and other wet areas. Suitable for any commercial premises where a heating cycle is required to be operational only when a controller is activated.
The SLPBWP is an IP65 rated waterproof run-back timer and thermostat which allows the heaters to operate only when the controller is activated.
Features & Benefits
- IP65 rated
- Can operate multiple SL heaters
- 3 operating modes:
- Basic: Switches the heater on and off when button is pressed.
- Timer: Controller acts as a run-back timer where heating period will be active until run-back timer expires.
- Temperature control: Features temperature control for comfort and setback periods.
- Choice of 3 total time periods in Timer mode: 15, 30 or 60 minutes
- Comfort heat setting between 15°C to 35°C
- Setback temperatures can be used for frost protection or maintaining a minimum room temperature 0°C to 15°C
- 1 light indicator around the button to show the status of the controller
- Easy operation
- External input available to connect to any voltage free contact such as timers or BMS
- Can be powered by either mains 240V or 12VDC which allows SELV (Separated Extra Low Voltage) installation.
* Power adapter not supplied.
Technical Specification
Length (mm)
57
Width (mm)
83
Height (mm)
81
