Detailed Description

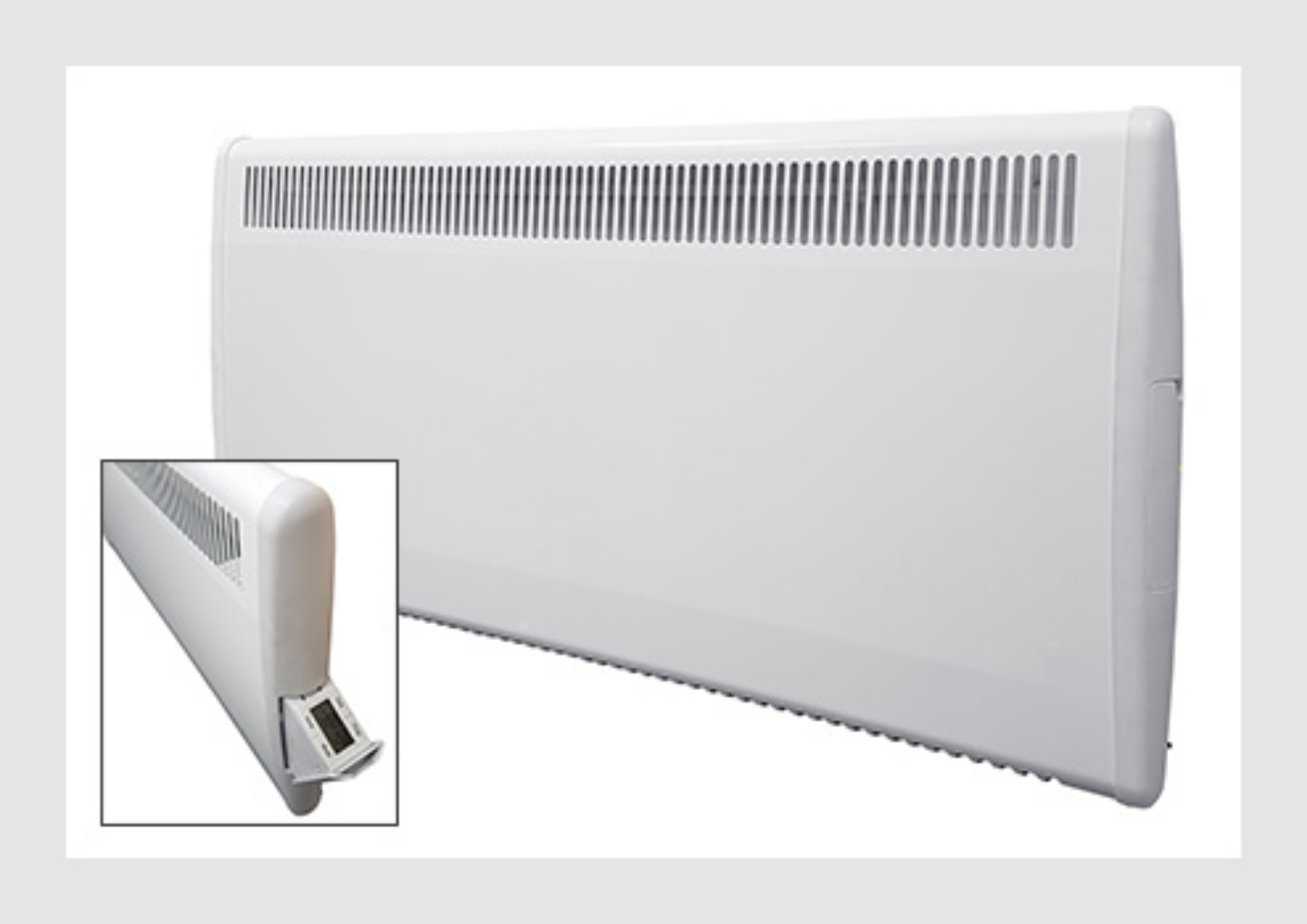

The PLE panel heaters feature an electronic timer which offers a 7-day programme with 6 heating periods per day.
The digital control panel has an easy-to-read display and four large control buttons with tactile feedback. Easy to operate and designed with an electronic lock to prevent tampering with controls.
Features open window detection which recognises a sudden temperature drop when a window is opened and turns the heating off to save energy.
Once the window is closed, the temperature change triggers the heating to resume its normal operation.
Features & Benefits
- 5kW, 0.75kW, 1kW, 1.25kW, 1.5kW or 2kW rating
- 7-day timer with electronic thermostat
- 6 heating periods per day
- Very quiet operation
- Open window detection
- Copy day function
- Concealed digital controls
- 4 operating modes: Programme, Boost, Setback & Manual
- 15-minutes Boost feature
- Comfort heat setting between 15°C to 35°C
- Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4°C to 15°C
- Automatic safety cut-out
- Can set temperatures in degrees Celsius or Fahrenheit
- Maintains temperature within 0.7 degrees
- Easy-to-read display
- Easy operation
- 4 large control buttons with tactile feedback
- Electronic child lock
- Optional control panel locking kit (PLK1)
- Slimline and clean design
- Splash proof to IP24 for use in bathrooms and other damp areas
- Hinged wall mounting system for easy installation and decorating
- Fitted with 1.8m of supply cable
- Finished in white or stainless steel
Technical Specification
Length (mm)
93
Width (mm)
614
Height (mm)
430
Weight (kg)
5
No. Of Heat Settings
4
Heat Output (kw)
1.00
IP Rating
IP24
Colour
White
Ductable
No
Low Energy Values
Yes
High Efficiency
Yes
Installation
Wall mounted
Remote control
Built-in Control
Thermostat
Built-in
Type
Panel Heater
Voltage
230V
Warranty
1 Year
