Consort Claudgen CH09iRX

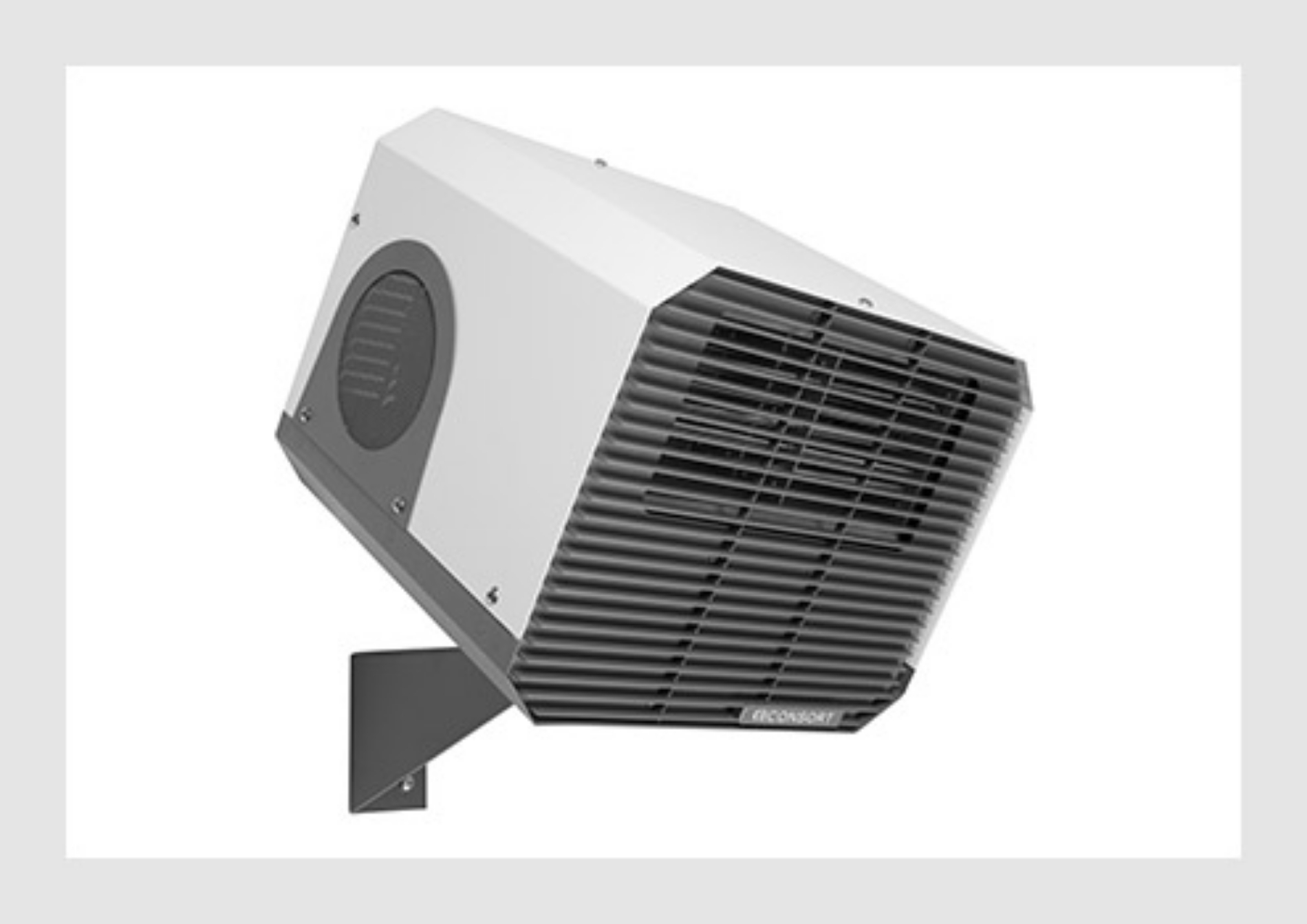

    Picture of Consort Claudgen CH09iRX 9kW Single or 3 Ph Commercial Fan Heater

    Consort Claudgen CH09iRX
    Consort Claudgen

    Consort Claudgen CH09iRX 9kW Single or 3 Ph Commercial Fan Heater

    SKU: CC-03-002-0205

    Consort Claudgen CH09iRX 9kW Single or 3 Ph Commercial Fan Heater

    Back

    £760.00

    Out of stock
    Consort Claudgen CH09iRX Consort Claudgen CH09iRX 9kW Single or 3 Ph Commercial Fan Heater £760.00

    Detailed Description

    Larger, more powerful commercial fan heaters providing a “heat throw” of 11m at maximum fan speed. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a comfort temperature whilst maintaining a very low noise level. Airflow temperature depends on rating of fan heaters. Ideal for large areas such as warehouses, factories, large workshops and many other commercial applications.

    • 9kW, 12kW or 15kw rating
    • 3 phase supply
    • Sensor to detect the room temperature and heat output
    • Intelligent Fan Control feature:- The fan speed of the heater automatically adjusts relative to the room’s current temperature in order to achieve warm airflow temperature. This eliminates the heater from blowing cold air when initially powered on in a cold room.
    • Incorporates EC motor for improved energy efficiency
    • Safety monitoring feature to identify overheating, fan failure and certain electronic faults
    • Wireless controlled by separately purchased CRXSL controller
    • One CRXSL controller can operate multiple RX heaters
    • Time/Manual mode in CRXSL controller:
      – Allows fan and heat settings to be adjusted manually
      – Allows set time schedule for fan and heat settings
    • CRXSL controller is compatible with separately purchased MRX1 Multizone controller for ‘zoning’ of the heating system
    • Instant directional warmth
    • 2 automatic fan speeds, 3 heat settings
    • Fan only setting for air circulation
    • Wall mounted with multi-directional brackets supplied (180° horizontal, 45° vertical)
    • Maximum heat throw – 11 metres
    • Finished in white/grey

    Features & Benefits

    • CRXSL controller is compatible with separately purchased MRX1 Multizone controller for ‘zoning’ of the heating system
    • Instant directional warmth
    • 2 automatic fan speeds, 3 heat settings
    • Fan only setting for air circulation
    • Wall mounted with multi-directional brackets supplied (180° horizontal, 45° vertical)
    • Maximum heat throw – 11 metres
    • Finished in white/grey



    Technical Specification

    Length (mm)
    390
    Width (mm)
    360
    Height (mm)
    300
    Weight (kg)
    14
    Voltage
    240 or 415
    No. Of Heat Settings
    2
    Heat Output (kw)
    9

    Document Download

    Documentation File Format Size

    CH09-12-15iRX MANUAL PDF 0.3 MB
